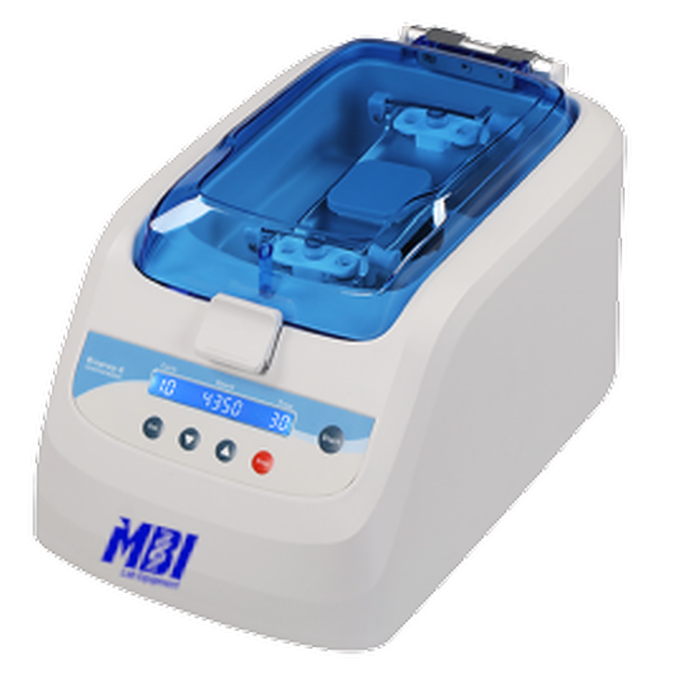

MBI BeadBlaster 6 Microtube Homogenizer
MBI BeadBlaster 6
Microtube Homogenizer
Medium-throughput bead mill homogenization.
Compact footprint. Powerful 3D motion. Universal voltage.
Overview
The MBI BeadBlaster 6 is a compact, high-energy microtube homogenizer designed for medium-throughput laboratories. It utilizes a three-dimensional shaking motion to disrupt samples, producing high-velocity impacts between the sample and micro-beads to release cellular contents including nucleic acids and proteins.
Many different sample types, from cells in culture to organ tissues and bone, can be homogenized in the BeadBlaster 6, most within 45 seconds. The unit simultaneously processes up to six samples in 2.0 mL tubes, with optional adapters available for two 5.0 mL tubes. Programming is simple—just set the speed, time, number of cycles, and pause between cycles, then press start. The last programmed parameters remain in memory for repeated runs.
3D Bead Motion Simulation
Features
Applications
Consumables Available: A full range of bead materials and sizes are available in both prefilled tubes and in bulk to meet all sample processing needs. Triple-Pure kits include acid-washed, heat-treated, zirconium beads tested to be free of nucleases, making them ideal for molecular biology applications.
Technical Specifications
| Capacity | 6 × 2.0 mL tubes (screw cap, skirted and non-skirted); optional adapters for 2 × 5.0 mL tubes |
| Speed Range | 4.0 to 7.0 m/s (0.05 m/s increments); 2,500 to 4,350 rpm (10 rpm increments) |
| Cycle Time | 1 to 90 seconds (1-second increments) |
| Pause Between Cycles | 1 to 90 seconds (1-second increments) |
| Max. Cycles Per Program | 10 |
| Acceleration Time | ≤ 2 seconds |
| Deceleration Time | ≤ 2 seconds |
| Noise Level | ≤ 65 dB |
| Display | LCD |
| Dimensions (W × D × H) | 8.6 × 14 × 8 in / 218 × 354 × 206 mm / 354 × 218 × 206 mm |
| Weight | 20 lb / 8.9 kg |
| Electrical | 100–240 V, 50/60 Hz |
| Power Input | 24 VDC 6A (144 W) |
| Ambient Temperature | 5°C to 35°C |
| Relative Humidity | ≤ 70% |
| Warranty | 2 years |
| Temps d'homogénéisation | 1-90 sec. |
|---|---|
| Plage de Vitesse | 2,500 - 4,350 RPM, increment 10 RPM |
| Temps d 'acceleration | < 2 sec. |
| Temps de décélération | < 2 sec. |
| Volume d'échantillon | 6×2 mL/1,5 mL, 2×5 mL tube de broyage |
| Niveau de bruit | 65 dB |
| Nombre de cycles | 10 |
| Dimensions | 354×218×206 mm |
| Poids net | 8.9 kg |
| Catalog Number | Nom du produit | Prix | Qté |
|---|---|---|---|
| MBIGSL3001 | MBI Billes de verre - Soda Lime, diamètre 3.0mm, pkt 1280 (0.1lb) |
136,80 $CA
|
|
| Glass, Low Alkali, Size 3.0mm, pkt 1435 (0.1lb) | Billes de verre - faible Alkali, diamètre 3.0mm, pkt 1435 (0.1lb) |
273,60 $CA
|
|
| Glass, Soda Lime, Size 5.0mm, pkt 275 (0.1lb) | Billes de verre - Soda Lime, diamètre 5.0mm, pkt 275 (0.1lb) |
136,80 $CA
|
|
| Glass, Low Alkali, Size 5.0mm, pkt 310 (0.1lb) | Billes de verre - faible Alkali, diamètre 5.0mm, pkt 310 (0.1lb) |
273,60 $CA
|
|
| MBISS44031701 | MBI Billes d'acier - diamètre 3.17mm 350 pcs. per pack (0.1lb) |
216,01 $CA
|
|
| MBISS44047501 | MBI Billes d'acier - diamètre 4.75mm 100 pcs. per pack (0.1lb) |
136,00 $CA
|
|
| MBISSC4001 | MBI Billes d'acier - diamètre 4.0mm 70 pcs. per pack (0.1lb) |
150,00 $CA
|
|
| MBICZRO3001 | MBI Billes d'oxyde de zirconium - diamètre 3.0mm 1175 pcs. per pack (0.1kg) |
430,40 $CA
|
|
| MBICZRO5001 | MBI Billes d'oxyde de zirconium - diamètre 5.0mm 250 pcs. (0.1kg) |
|
