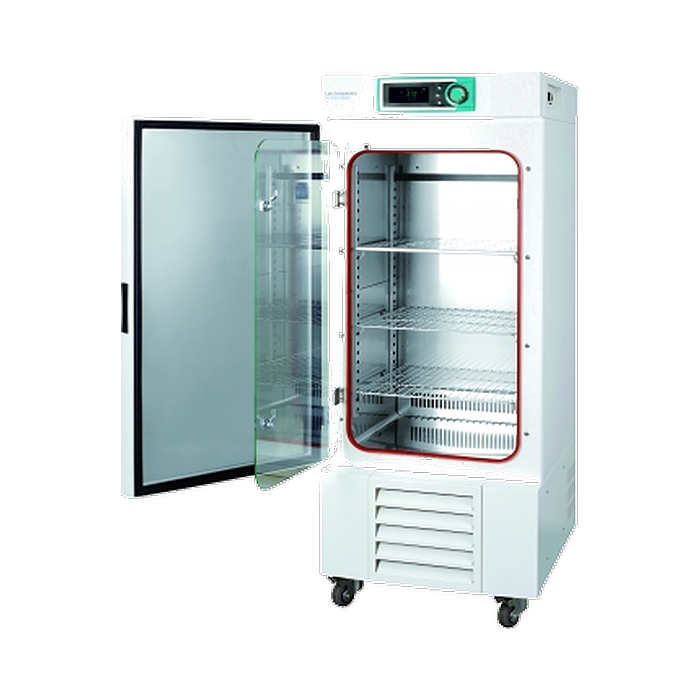

Low Temperature Incubators, IL3-15 (150 Liters)
Numéro de catalogue:
AAH220462U
Disponibilité:
En stock
Lab Companion (Jeio Tech) - Low Temperature Incubators, IL3-15 (242 Liters)
Performance
- Temperature ranges from 0°C to 80°C: Silent cooling system reduces water evaporation within the chamber.
- Microprocessor PID control.
- Three-point temperature calibration / Automatic tuning.
- Forced air convection using an optimal cross flow fan for chamber temperature uniformity.
Convenience
- Large chamber volume: maximum 150L.
- Bright VFD display (0.1℃resolution)
- Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.) with heating level indication and quick adjustable dial knob.
- Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
- Convenient preset function for 3 most commonly used temperature settings.
- Built-in electrical outlet with a safety cover inside the chamber.
- Convenient sample monitoring without affecting chamber temperature via the inner tempered-glass door.
- Rounded inner chamber corners for easy cleaning and optimal airflow.
- Quick-release front grill for easy cleaning of the condenser.
- Built-in RS-232 port and USB port for external control and data collection.
- Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)
Safety
- Automatic run after power interruption.
- Over-current protection.
- Triple independent temperature monitor system.
- Temperature deviation alarm (High/Low)
- Electronic temperature limiter (High/Low)
- Mechanical over-temperature limiter (High)
- Keypad lock function prevents accidental changes during operation.
- Audible and visible open door alarms.
| Chamber volume (L / cu ft) | 150 / 5.3 |
|---|---|
| Refrigerator (Hp) | 1 / 6 HBP |
| Temperature | |
| Range (℃ / ℉) | 0 to 80 / 32 to 176 |
| Fluctuation at 37℃ (±℃ / ℉) | 0.1 / 0.18 |
| Variation at 37℃ (±℃ / ℉) | 0.6 / 1.08 |
| Heating time 20 to 37℃ (min.) | 43 |
| Cooling time 20 to 5℃ (min.) | 45 |
| Recovery time at 37℃ (min.) | 4 |
| Dimension | |
| Interior (W x D x H, mm / inch) | 600 x 500 x 500 / 24 x 20 x 20 |
| Exterior (W x D x H, mm / inch) | 720 x 760 x 1070 / 28.3 x 29.9 x 42.1 |
| Net weight (Kg / lbs) | 100 / 220 |
| Shelves | |
| Quantity of shelves (standard/max.) | 2 / 6 |
| Max. Load per shelf (Kg / lbs) | 26 / 57.3 |
| Electrical requirements (120V, 60Hz, A) | 60Hz, 8.3 |
| Cat. No. | AAH220462U |
| Capacité de la chambre | 150L |
|---|---|
| Conditions environnementales admissibles | Température de 5 à 40 C ¹ ¹ C Humidité relative maximum 80% de l'altitude jusqu'à 2000 m |
| Gamme de température | 0℃ to 80℃ |
| Précision de la température | ± 0,1 ℃ à 37 ℃ |
| Uniformité de temperature | ±0.8℃ at 37℃ |
| Contrôle de la température | Microprocesseur |
| Dimensions extérieures | 720×760×1070/ 28.9×29.9×42.1 |
| Dimensions de la chambre | 600×500×500/ 24×20×20 |
| Chronomètre | Modes de minuterie à double attente activés/désactivés. (1 min. à 99 h 59 min.) |
| Plateaux | Étagères en fil métallique. |
| Refrigerateur | 1/6Hp(HBP) |
| Dispositif de sécurité | • Système de surveillance de température triple et indépendant. |
| Source de courant | 60Hz, 8.3A |
| Dimensions intérieures | 600×500×500mm |
