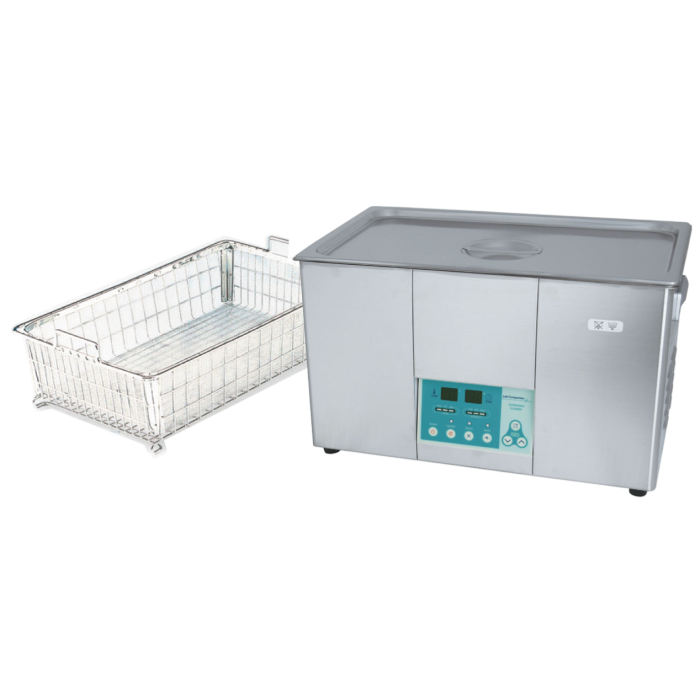

10L Ultrasonic Cleaner UCS-10
UCS Series Ultrasonic Cleaners
Aggressive cleaning ability in a variety of output modes. The UCS series features full 304 stainless steel construction—both external housing and tank—for maximum durability in demanding laboratory and industrial environments. Built with industrial-grade B.L.T (Bolt Clamped Langevin Type) transducers delivering consistent 40 kHz ultrasonic power across all models.
Key Features
- All-Stainless Construction: External housing and tank made of durable 304 stainless steel (SUS) for superior chemical resistance and longevity
- Industrial B.L.T Transducer: High-frequency 40 kHz sound waves provide maximum cleaning power and reliability
- Multiple Output Modes: Normal, Pulse, and Sweep modes with selectable power levels (Low/Middle/High)
- Digital Controls: LED display with splash-proof membrane keypad; timer 1-99 minutes (max 4 hours continuous operation)
- Heated Bath: Temperature range ambient to 70°C / 158°F across all models
- Safety Systems: Over-temperature protection with audible alarm
- Complete Package: Includes drain valve, stainless steel basket, and cover as standard
Technical Specifications
| Specification | UCS-05 | UCS-10 | UCS-20 |
|---|---|---|---|
| Cat. No. | BDH532031K | BDH532032K | BDH532033K |
| Bath Volume | 5.7 L / 0.20 cu ft | 10 L / 0.35 cu ft | 20 L / 0.70 cu ft |
| Ultrasonic Power | 200 W | 300 W | 500 W |
| Temp Range | Ambient to 70°C / 158°F | ||
| Tank Interior (W×L×D) | 295×160×160 mm 11.6×6.3×6.3" |
295×240×160 mm 11.6×9.4×6.3" |
500×290×160 mm 19.7×11.4×6.3" |
| Exterior (W×L×H) | 325×230×320 mm 12.8×9.1×12.6" |
325×330×320 mm 12.8×12.9×12.6" |
530×330×297 mm 20.9×12.9×11.7" |
| Net Weight | 8 kg / 17.6 lbs | 11 kg / 24.3 lbs | 15 kg / 33.1 lbs |
| Electrical | 230V, 50/60Hz, 0.9A | 230V, 50/60Hz, 1.3A | 230V, 50/60Hz, 2.2A |
UCS vs UCP Series
Choose UCS when you need: Full stainless steel construction (external + tank) for heavy chemical exposure, autoclave compatibility, or industrial environments where ABS plastic is unsuitable. All UCS models include full digital controls, heating, and safety features as standard.
Model Selection Guide
UCS-05: Compact 5.7L capacity (200W) ideal for small parts, jewelry, or laboratory glassware cleaning. Footprint: 12.8" × 9.1".
UCS-10: Mid-size 10L capacity (300W) for standard laboratory instruments and dental/medical equipment.
UCS-20: Large 20L capacity (500W) for industrial parts, large glassware, or high-throughput cleaning applications.
Standard Inclusions: All UCS models ship complete with stainless steel cleaning basket, tank cover, and drain valve. No additional accessories required for operation.
| Bath Volume | 10.0L / 0.35 Cu.Ft. |
|---|---|
| Working Temperature Range(℃/℉) | Amb. to 70℃ / Amb. to 158℉ |
| Dimensions Bath opening/ depth (W×L, D)(mm/inch) | 295×240, 160 / 11.6×9.4, 6.3 |
| Dimensions Overall (W×L×H)(mm/inch) | 325×330×320 / 12.8×12.9×12.6 |
| Dimensions & Weight | 11 kg / 24.3 lbs |
| Ultrasonic power(℃/℉) | 300W |
