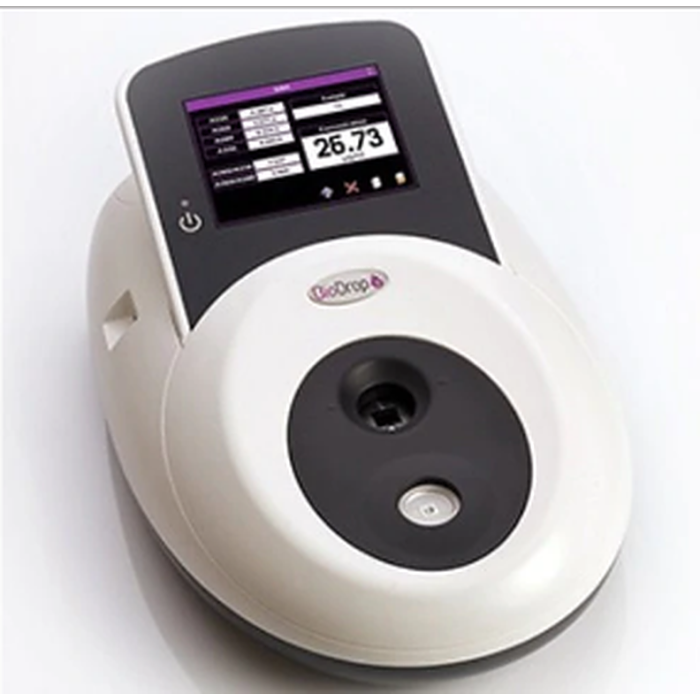

BioDrop DUO+ with Printer - Micro-volume Spectrophotometer
BioDrop, Biochrom - BioDrop DUO+
BioDrop DUO+ is the ideal solution for life scientists for whom flexibility of measurement is a key requirement.
Product Overview
BioDrop-DUO+ UV/Vis spectrophotometer has two measurement modes: a unique in-built sample port unrivalled dsDNA detection limit of 1ng/μl PLUS a cuvette holder for the revolutionary BioDrop CUVETTE 125, ideal for highly concentrated samples.
BioDrop-DUO+ is quick and easy to use. It has a large capacitive colour touch screen with on-board software for data acquisition and analysis. Pre-programmed methods for DNA, RNA, oligos and proteins in the on-board software reduce the time from measurement to results. In addition, data generated using the on-board software can be stored internally or transferred using a USB memory stick. Alternatively, both the PC-only and standalone instruments can be controlled using a PC and BioDrop Resolution Software. Users can also choose an optional built-in thermal printer for maximum flexibility.
BioDrop-DUO+ has an in-built sample port with no moving parts. Because the pathlength doesn’t move, the instrument provides excellent reproducibility. Measure-ments are also highly accurate because the pathlength is specified to +/- 5μm.
All in one flexibility!
- Never have to calibrate The in-built sample port uses no moving parts providing outstanding measurement performance
- Two ways to measure micro-volume samples: in-built sample port for micro-volume measurements and a cuvette holder
- Extended capability for micro-volume measurement with the BioDrop CUVETTE 125 for highly concentrated samples
- Fast operation – switch on and measure a DNA sample in <4 seconds with only 4 screen touches
- Large, high-resolution, capacitive colour touchscreen on standalone instrument
- The in-built sample port is easy to clean and maintain
- USB connectivity for easy PC connection or data export
- BioDrop Resolution Life Science PC software for powerful analysis
BioDrop Resolution Life Science PC Software
- Dedicated life science methods for determining the concentration and purity of DNA, RNA, oligos and protein as well as the ability to create and save customized methods
- Fast and easy to use with intuitive modules for quick measurements, wavelength scanning, quantitation and kinetics
- Pre-programmed with BioDrop pathlengths for quick calculations
- Optional BioDrop Resolution CFR module for laboratories requiring full 21 CFR part 11 compliance
| Sample Format | 0.5µL Drop & Cuvette |
|---|---|
| Minimum sample volume | 0.5µL |
| Maximum Concentration (dsDNA) | 2,500ng/µL |
| Pathlength Accuracy | +/- 5µm |
| Wavelength Accuracy | ± 2nm |
| Wavelength range | 190 - 1100nm |
| Wavelength Reproducibility | ± 1nm |
| Absorbance Range | -0.3 to 2.5A |
| Absorbance Accuracy | ±0.005A or 1% of the reading, whichever is the greater at 546nm |
| Absorbance Reproducibility | ±0.003A (0 to 0.5A), ±0.007A (0.5 – 1.0A) |
| Light Source | Pulsed Xenon lamp with 3 year warranty Spectral Bandwidth |
| Stray Light | <0.5%T at 220 nm and 340 nm using NaNO2 |
| Detection Limit (dsDNA) | 1ng/µL |
| Display | 7” display with capacitive touch panel |
| Configuration | Split Beam |
| Detector | 1024 element CCD array |
| Noise Level | 0.005A peak to peak 0.002A RMS |
| Output | USB port for PC connection |
| Power Supply | 90-250 V, 50/60 Hz, Max 50VA |
| Dimensions | 420 x 260 x 185mm |
| Net Weight | approx. 3kg |
| Life Science PC Software | DNA, RNA, oligo, dye labelling, Tm calculation, direct UV and colorimetric protein methods |
| Software Languages (on-board software) | English |
