Biometra TAdvanced Twin 48 Thermal Cycler
Catalog Number:
070-212
Availability:
In stock

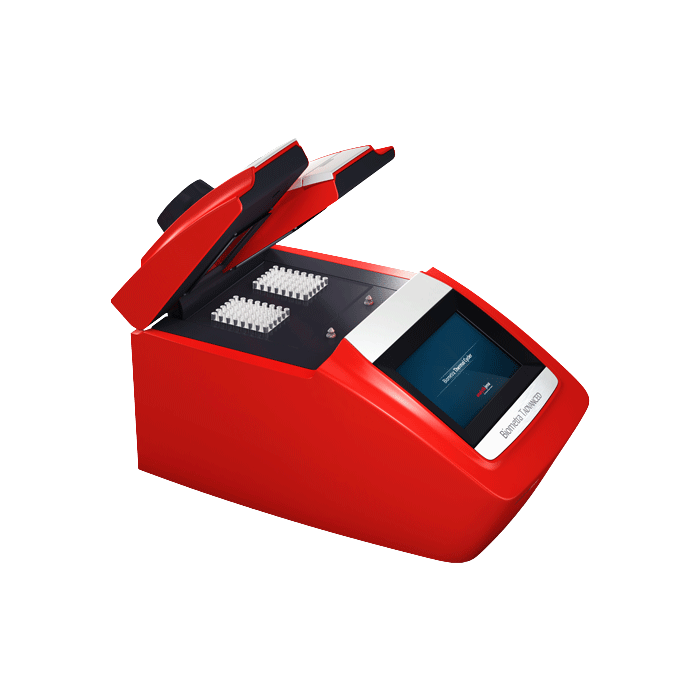

Biometra TAdvanced Twin 48 Thermal Cycler
The TAdvanced Twin PCR Thermal Cycler from Biometra pushes the boundaries of modern thermal cycler technology. The TAdvanced Twin combines the versatility and performance of the Biometra TAdvanced with the flexibility and renowned durability of the Biometra TRIO to create a PCR thermal cycler suitable for all users and all applications.
The TAdvanced Twin allows two different users to run two different PCR protocols at the same time. High performance electronics ensure excellent heating and cooling rates, unrivaled block temperature uniformity, and best-in-class temperature control accuracy.
The heated lid is fully adjustable, and does not require the use of proprietary plastic ware or special lid retainers for compatibility. For convenience, Biometra has implemented a responsive 7” color touchscreen and modern operating system with intuitive programming modes. The TAdvanced Twin is available in both gradient and non-gradient models, and all models include a complete three year warranty.
Product Specifications
- Block format: 2 x 48-well anodized aluminum block (non-gradient)
- Exchangeable Block Module
- Capacity: 48 x 0.2ml tubes per block – 96 total tubes; strips, plates
- Max. heating rate: 5.2 °C / sec
- Temperature Range: 3 - 99 °C
- Block temperature uniformity: ± 0.20°C
- Control accuracy: ± 0.10 °C
- High Precision Heated Lid, manual opening mechanism
- Lid Temperature: 30 - 110 °C
- Display: 7” color touchscreen
- Interfaces: USB A, Ethernet
- Program Memory: 350 programs over 30 directories
Product Features
- Two independently controlled thermal cyclers in one
- 7” Full-Color Touchscreen
- PCR Protocol Wizard
- QBE (Quick Block Exchange)
- Graphical Programming
- User administration tools for controlled access
- Three Year Warranty
Biometra TAdvanced 384 G, 230 V | |
Sample Block | Aluminum, special alloy |
Block capacity | 2 x 48 x 0,2 mL tubes, 2 x 48 well microplates, 2 x 6 x 8 well strips, 0,2 mL |
Proposed sample volume | 5 - 70 µL |
Maximum Heating | 5.2 °C/s |
Average Heating | 5.1 °C/s |
Maximum Cooling | 4.1 °C/s |
Average Cooling | 4.0 °C/s |
Temperature uniformity | +/- 0,20 °C at 55 °C after 15 s |
Gradient | no |
Max./Min. gradient | |
Adjustable gradient range | |
Block exchange | Peltier elements |
Tempering method | Down to 4 °C |
Standby temperature | Block Control |
Temperature control mode | 3 - 99 °C |
Adjustable temperature range | +/- 0.1 °C |
Lid temperature | 30 - 110 °C |
Compatible sealing systems | Sealing foils, tube lids |
Consumable compatibility | PCR tubes, 48 well microplates, 8 well strips |
Time increment | 1 - 240 s/cycle |
Temperature increment/decrement | +/- 0.1 °C to 20 °C per cycle |
Capacity | 48 x 0.2ml tubes per block – 96 total tubes; strips, plates |
---|---|
Program Memory | Total capacity: 350 programs in up to 30 user directories |
Block | 2 x 48-well anodized aluminum block (non-gradient) |
Temperature Range | 3°C to 99°C |
Maximum Heating Rate | 5.2°C/sec |
Temperature Uniformity | ± 0.2ºC |
Control Accuracy | + 0.1°C |
Display | 7” color touchscreen |
Auto Restart After Power Failure | Yes |
Lid Temperature Range | 30 °C to 110 °C |
power consumption [W] | Max. 850 W |
Interface | USB A, Ethernet |
Dimensions | 27.7 cm x 45.7 cm x 264 cm |
