Labcycler with 48 Wells (0.5 ml) Silver Block

Labcycler  with 48 Wells (0.5 ml) Silver Block

5-year warranty

• Exceptional temperature homogeneity
• Long lifespan for extensive DNA sequencing.
• German engineering

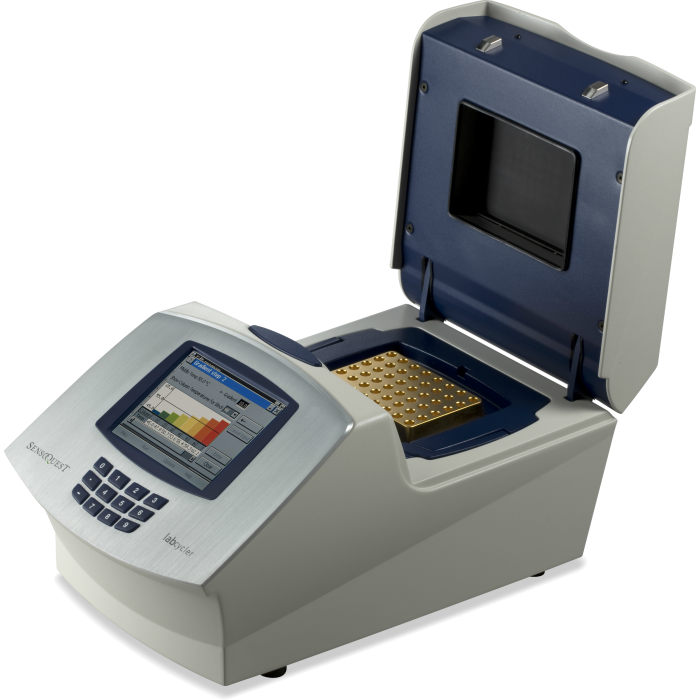

Labcycler Basic

The Labcycler Basic (011-103) is a thermal cycler designed for classical PCR. The Labcycler Basic IVD complies with the European Directive for in vitro diagnostics (011-106). Since 2005 Labcyclers are produced by SensoQuest and are in use. Take a look at references.

The solid design with an aluminum front plate and a warranty of 5 years makes the system for all users interesting looking for quality. The system has a quick-block-changing system. With only one grip the scientist can put in a Thermoblock 48 (012-102), a Thermoblock 96 (012-103), a Thermoblock 384 (012-101), a Triple Block (012-104), or others.

The TFT colored Touch Screen can be programmed in English, Spanish, or German at any time. The PCR-process is online tracked. The user interface is intuitive. The Labcycler has an electro-motoric heating lid. Maximal temperatures up to 110 °C at 120 Newton pressure are possible.  The ecologic development concept results in a low power consumption system.

Only 350 watts are used at maximal power, and low waste heat is produced by low noise. Nevertheless, the Labcycler can cool down at 4 °C for a very long period, e.g. over the weekend. The peak performance is demonstrated in cooling down to minus 5 °C. Instant incubation at the freezing point is possible. The low power consumption results in a low CO₂ – emission which is positive for the balance of energy.

A Gradient upgrade is possible (011-801)

Technical Data

Thermoblock 48

All thermoblocks are processor-controlled gradient-capable blocks with 6 separately controlled peltier elements for extraordinary temperature homogeneity at high heating and cooling rates, and a unique quick block changing system.

•   Material: Electroformed gold-plated silver
•   Heating rate 0.001 - 4.2 °C/s, cooling rate 0.001 - 3.6 °C/s
•   Quick block changing system
•   All blocks are gradient-capable (± 20 °C)
•   Temperature range: Minus 5 °C to plus 99 °C
•   Block uniformity: ± 0.3 °C from 20 to 72 °C, ± 0.4 °C at 95 °C
•   48 well block; 0.5 ml tubes
• 5 years Manufacturer warranty.
