STARTER 3100M PH (ST3100M-B) (Discontinued)
***This item has been discontinued***
May we suggest something new: Multi-Para. Analyzer a-AB33M1 -B
_______________________________________________________________________________

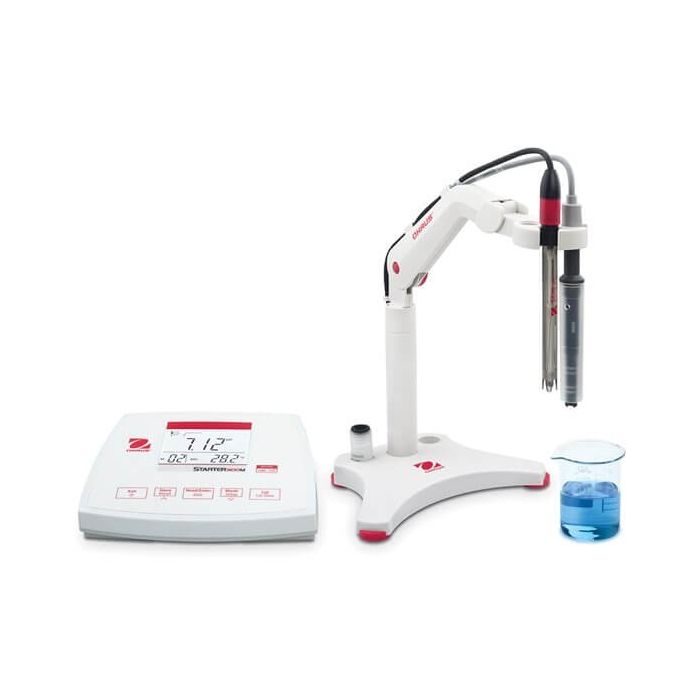

STARTER 3100M PH & CONDUCTIVITY BENCH
High-Performance Multi-Parameter Benchtop Meter for Standard Laboratory Applications
The Versatile Multi-Parameter Bench Meter
Save time, space and money with the Starter 3100M Bench Meter, which combines all your pH, ORP, conductivity, TDS, salinity, resistivity, and temperature measurements—in one smart device. Ideal for a wide range of lab applications, the ST3100M is incredibly easy to use. Equipped with software to ensure the reliability of your readings, and RS232 connectivity to store and transfer data conveniently, the ST3100M is a great addition to your lab.
Standard Features Include:
-
Equipped with Software to Ensure the Reliability and Accuracy of Your Readings. Auto temperature compensation, auto buffer recognition, six pH buffer groups, five conductivity standards and automatic/manual endpoints ensure accurate and stable measurement.
-
User-Friendly Features Offer Ease of Operation and Versatility. An adjustable electrode holder, a large backlit LCD for optimal viewing of results, and a Quick Guide with set-up and navigation info combine to make ST3100M a truly userfriendly experience.
-
Store and Transfer Data Conveniently with RS232 Connectivity. Documenting data is made efficient with a 99-item memory for pH and conductivity measurements. RS232 interface allows you to connect to an external device such as a printer to store or transfer data.
| Measurement Range | -2.00 – 20.00 pH; 0-20 MΩ•cm; -5 °C – 110 °C; 00.0 μS/cm – 199.9 mS/cm; -1999 – 1999 mV |
| Measurement Resolution | 0.1 °C; 0.01 pH; 0.01 Ω•cm; 0.01 μS/cm; 1 mV |
| Accuracy | ± 0.5 % F.S.; ±0.3 °C; ±1 mV; ±0.01 pH |
| Display | Backlit LCD |
| Electrode | Not included |
| Accuracy ± (mV) | 1 mV |
| Accuracy ± (Temperature) | 0.3 °C |
| Battery Life | Not Applicable |
| Conductivity accuracy (±) | 0.5 % |
| Conductivity measuring range | 0.0 – 199.9 µS/cm |
| Dimensions | 6.89 in x 3.07 in x 8.66 in (175 mm x 78 mm x 220 mm) (LxHxW) |
| In-Use Cover | Included |
| Measurement Range (Temperature) | -5 °C ; 110 °C |
| Measurement Range | -1,999 mV ; 1,999 mV |
| Net Weight | 2.09 lb (0.95 kg) |
| pH accuracy (±) | 0.01 |
| pH measuring range | -2 ; 20 |
| pH resolution | 0.01 |
| Power | 100 - 240 V |
| Resistivity measuring range | 0 MOhm ; 20 MOhm |
| Resistivity resolution | 0.01 MOhm |
| Resolution Cond. (Variable) | 0.01 ; 200 |
| Resolution (Voltage) | 1 mV |
| Temperature compensation | Automatic |
| Temperature resolution | 0.1 °C |
| Temperature Sensor | 30 KΩ NTC |
| Working Environment | 14°F – 104°F, 85%RH, non-condensing (-5°C – 40°C, 85%RH, non-condensing) |
| pH measurement range | -2.00 to 20.00 pH |
|---|---|
| pH resolution | 0.01 pH |
| pH Accuracy | ± 0.01 pH |
| pH Temperature Compensation | Automatic or manual/0 °C to 100 °C for pH |
| pH input | BNC, impedance >l0e+12 Ω |
| pH Calibration | 3 point, 6 buffer groups for pH |
| Conductivity resolution | 0.01µS/cm auto-range |
| Conductivity Accuracy | ± 0.5% full-scale reading |
| conductivity calibration | 5 pre-defined conductivity standard points |
| Conductivity Temperature Compensation | Automatic or manual/0 °C to 100 °C for pH |
| Conductivity input | Mini-DIN |
| Conductivity Temperature Coefficient Range | 0.00 %/°C to 10.00 %/°C |
| Conductivity Reference Temperature | 20 or 25 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | ± 0.3°C |
| temperature input | Cinch, NTC 30 kΩ |
| TDS Resolution | 0.01 mg/L auto-range |
| Salinity resolution | 0.01 psu |
| Resistivity Resolution | 0.01 Ω•cm auto-range |
| Memory | 99 sets of pH and conductivity data, last calibration data |
| Display | Color Touch-Screen LCD |
| Temperature | -5.0 to +110.0°C |
| Conductivity | 0.01µS/cm to 199.9 mS/cm |
| Salinity | 0.00 to 100.00 psu |
| TDS | 0.1 mg/l…199.9 g/l |
| Resistivity | 0...20MΩ·cm |
| Catalog Number | Product Name | Price | Qty |
|---|---|---|---|
| 30080693 | Conductivity Probes STCON7 (0.02 µS/cm – 200 µS/cm) |
$1,189.20
|
|
| 30087569 | pH Electrodes STMICRO8 (0.00 – 14 pH) |
$600.50
|
|
| 30038553 | ORP Electrodes STORP2 (-1000 – 1000 mV) |
$558.45
|
|
| 83033972 | Conductivity Probes STCON3 (2 µS/cm – 200 mS/cm) |
$668.65
|
|
| 30087566 | pH Electrodes STMICRO5 (0.00 – 14 pH) |
$565.70
|
|
| 30129357 | pH Electrodes ST260 (0.00 – 14.00 pH) |
$383.00
|
|
| 30038555 | ORP Electrodes STORP1 (-1000 – 1000 mV) |
$235.10
|
|
| 30240974 | pH Electrodes ST270 (0.00 – 14.00 pH) |
$651.25
|
|
| 30129354 | pH Electrodes ST350 (0.00 – 14 pH) |
$407.65
|
|
| 83033966 | pH Electrodes ST210 (0.00 – 14 pH) |
$174.20
|
|
| 83033968 | pH Electrodes ST230 (0.00 – 14 pH) |
$296.00
|
|
| 83033969 | pH Electrodes STPURE (0.00 – 14 pH) |
$323.55
|
|
| 83033965 | pH Electrodes ST310 (0.00 – 14.00 pH) |
$336.60
|
|
| 83033967 | pH Electrodes ST320 (0.00 – 14.00 pH) |
$336.60
|
|
