Economic Forced Convection Oven OF-11E (Discontinued)
Catalog Number:
AAH14026U
Availability: Out of stock
***Discontinued bu manufacturer***
______________________________________________________________________________________________________________________________

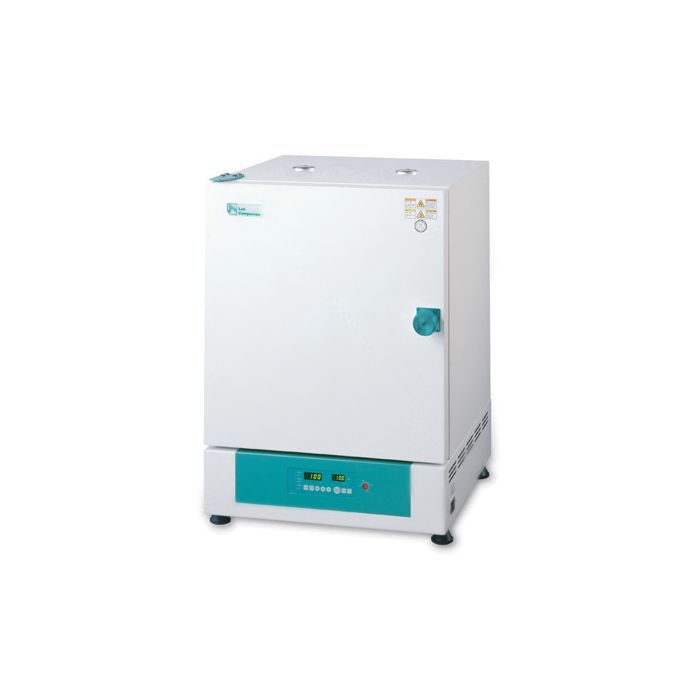

Lab Companion (Jeio Tech) - Economic Forced Convection Oven-OF-11E
OF-01E (52L)
OF-11E (100L)
OF-21E (150L)
General Information
- Application; Drying, Baking, conditioning, Curing, Pre-heating and aging
- Three models according to volume (52L,100L,150L)
- CLS - Control System and PID microprocessor controller with enhanced safety features.
- Temperature safety exceeds DIN Class II controller.
- Auto-Tuning function & Bias function - internal built-in re-calibration
- Timer: Time Delay ON / OFF (standard 99hr 59min)
- Selectable measuring temperature units ∉ and ∉
- Selectable Auto-run or Manual - run
- Audible visual and audio alarm - OT and Door Open
- Temperature range : up to + 220 ∉
- Very good uniformity and stability
- Incoloy sheath heating element is located at the bottom of chamber and makes very good temperature condition (Convenient repair without movement of the equipment)
- 3 set point memories in advance: Save time without AUTO-TUNING
- Hydraulic over temperature limit
- Over - current fuses
- Door alarm
- Smooth internal surface for easy cleaning
- Heating element and fan stop automatically when door is opened. This prevents large movement of hot air and protect operator.
- Optional: Perforated shelf
| Chamber volume | 100L / 3.53 ft³ |
|---|---|
| Permissible environment condition | Temperature : 5°C to 40°C,Relative humidity: 50% ~80%,Altitude : Up to 2,000m |
| Range | 1.32000 – 1.58000 nD 0-95 %Brix |
| Uniformity | ±0.5°C |
| Accuracy | ±0,1°C at 40°C |
| Heat up time | 50C within 30 mins |
| Controller | 1 Electronic + 1 Manual |
| Timer | 0…2h or continuous |
| Sensor | Dual UV-A/VIS { UV-A Visible illuminance |
| Internal | Stainless steel, 0.8t |
| External | Steel, 1.2t, Double painted and baked |
| Shelves | Stainless steel wire, electro polished |
| Heater (60Hz/50Hz) | 1000W/230V,1000W/120V |
| Insulation | Poly-styrene 20mm |
| Door Gasket | Foamed silicone rubber |
| Over temp. limit | Hydraulic over temp. limit |
| Ventilation Slide | Stainless steel, dia 38mm * 1EA |
| Safety Device | CLS (Custom Logical Safe) -Control System |
| Interior Dimensions | (mm / inch): 455×430×510 / 18.0x17.0x20 |
| Exterior Dimensions | 610×595×877 / 24.0x23.4x34.5 |
| power consumption [W] | 4.5A(230VAC) |
| Net Weight | 36 Kg (80 lb) |
