EZ Read 400 Research Microplate Reader (Discontinued)
***Discontinued by manufacturer***
________________________________________________________________________________

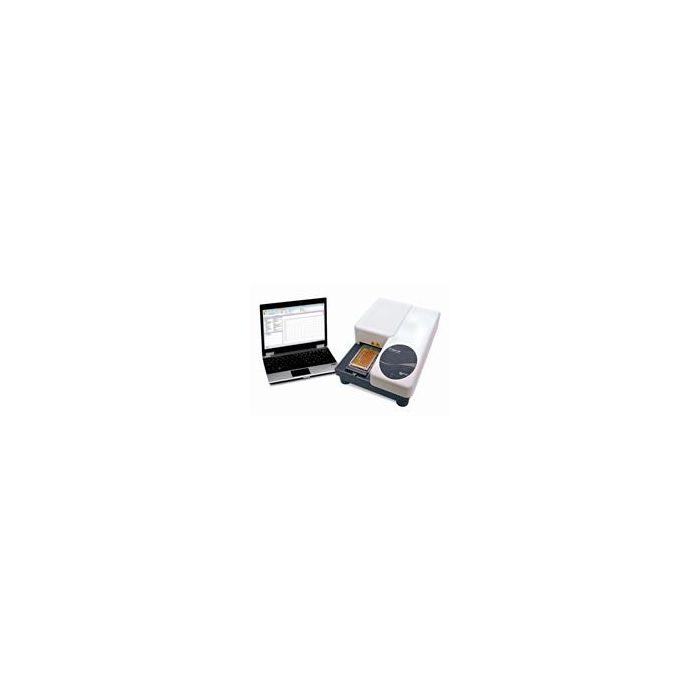

Biochrom - EZ Read 400 Research Microplate Reader
The EZ Read 400 is a simple and robust microplate reader that is an ideal choice for laboratories which require a workhorse instrument for their routine absorbance assays. The EZ Read 400 is available in two applictions-focussed models: EZ Read 400 ELISA is a dedicated ELISA reader, the EZ Read 400 Research offers versatility by extending its applications capacity to measuring total protein, cell proliferation assays as well ELISA assays. The EZ Read 400 microplate readers are PC-controlled using new, intuitive Galapagos software created by Biochrom to simplify data acquistion and analysis.
Galapagos for EZ Read Software
- Create new plate layouts
- Add multiple assays to a plate
- Add multiple plates per analysis
- Easy to create new methods.
- Select only the data you want for data reporting
- Windows 7 & 8 compatibility as well as older Windows OS from XP.
- So easy you won't need to export your data into Excel.
EZ Read 400 ELISA and EZ Read 400 Research
- Measures flat, round and v-bottomed 96-well microplates and stripwells with standard ANSI SBS footprints are measured
- Accurate measurements ensured by automatic lamp calibration prior to each reading
- USB 2.0 PC connection
- Interference filters for wavelength selection
- Visible range (400-750nm)
Two versions for specific applications requirements:
Biochrom EZ Read 400 ELISA microplate reader comes with 4 filters that can be used to measure most ELISA assays:
|
ELISA Assay Substrate |
Filter |
| NPP, ABTS | 405nm |
| OPD | 492nm |
| Slow TMB, Turbo TMB, Ultra TMB | 450nm |
| Reference wavelength | 620nm |
Biochrom EZ Read 400 Research microplate reader comes with 8 filters that can be used to measure ELISA, total protein and cell proliferation assays.
| ELISA Assay Substrate | Fillter |
| NPP, ABTS | 405nm |
| OPD | 492nm |
| Slow TMB, Turbo TMB, Ultra TMB | 450nm |
| Reference wavelength | 620nm |
| Total Protein Assays | |
| Bradford | 595nm |
| BCA | 562nm |
| Lowry | 650nm |
| Cell Proliferation/Viability Assays | |
| MTT | 570nm |
| XTT | 492nm |
| Cell Density | 620nm |
| Light Source | Tungsten halogen lamp |
|---|---|
| Measurement range | 0.000 – 3.3 OD |
| Precision | 0.25% @ 1.0 OD @ 450 nm |
| Accuracy | <±0.5% at 1.0 OD at 450 nm |
| Standard filters | 405, 450, 492, 562, 570, 595, 620, 650nm |
| Wavelength Selection | Filters |
| Wavelength range | 400 - 750nm |
| Photometric Method | Transmission photometer |
| Detector | Single channel silicon photodiode |
| Reading Speed | 25 seconds single wavelength |
| Shaking | - |
| Optical system | Filters |
| Plate types | 96 well plate (flat, round and v-bottomed well formats) |
| Resolution | 0.001OD |
| Linearity (±) | <±0.25% and ±0.0025 OD from 0.1 OD to 2.5 OD at 492 nm |
| Data Output | USB 2.0 |
| Reproducibility | ±0.02 °C |
| Quality control | Autocalibration, autolamp adjustment, status report |
| Validation | Optional check plate |
| Dimensions | 315 x 182 x 435 mm |
| Net Weight | 6.6kg (14.3lb) |
| Temperature Control | - |
| Computer Interface | USB 2.0 |
| Power | 100-240VAC; 50/60 Hz, 1.5 A |
| Power Supply | Voltage rating: 100VAC - 240 VAC; current rating: 50 /60 Hz, 1.5A |
| PC Operation | Yes |
| Software | Galapagos Software |
| LED indicators | Power on, lamp on |
