EZ Read 800 ELISA Microplate Reader (Discontinued)
***Discontinued by manufacturer***
________________________________________________________________________________

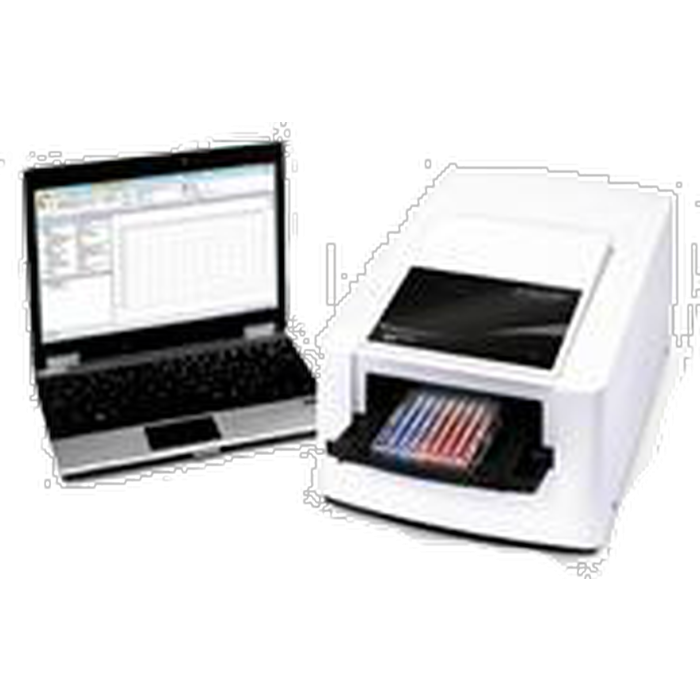

Biochrom - EZ Read 800 ELISA Microplate Reader
The EZ Read 800 is a fast and accurate microplate reader that is an ideal choice to keep up with a heavy workload in a busy high-throughput laboratory. The EZ Read 800 microplate readers are PC-controlled using new, intuitive Galapagos software. EZ Read 800 comes in two applications focused models: the EZ Read 800 ELISA is a dedicated ELISA reader, the EZ Read 800 Research offers versatilty by extending its applications capacity to measuring total protein and cell proliferation assays in additional to ELISA assays.
Galapagos for EZ Read Software's ‘click and drag' approach makes usability a key feature.
- Create new plate layouts
- Add multiple assays to a plate
- Add multiple plates per analysis
- Easy to create new methods.
- Select only the data you want for data reporting
- Windows 7 & 8 compatibility as well as older Windows OS from XP.
- So easy you won't need to export your data into Excel.
EZ Read 800 ELISA and EZ Read 800 Research
- >5 second for 96-well plate
- Measures flat, u-bottom and v-bottom plate with standard ANSI/SBS footprint.
- Four modes of shaking for complete mixing of solutions and more reproducible results.
- Automatic lamp calibration ensures measurement performance.
- USB 2.0 PC connection
Two versions for specific applications requirements:
Biochrom EZ Read 800 ELISA microplate reader comes with 4 filters that can be used to measure most ELISA assays:
|
ELISA Assay Substrate |
Filter |
| NPP, ABTS | 405nm |
| OPD | 492nm |
| Slow TMB, Turbo TMB, Ultra TMB | 450nm |
| Reference wavelength | 620nm |
Biochrom EZ Read 800 Research microplate reader comes with 8 filters that can be used to measure ELISA, total protein and cell proliferation assays.
| ELISA Assay Substrate | Fillter |
| NPP, ABTS | 405nm |
| OPD | 492nm |
| Slow TMB, Turbo TMB, Ultra TMB | 450nm |
| Reference wavelength | 620nm |
| Total Protein Assays | |
| Bradford | 595nm |
| BCA | 562nm |
| Cell Proliferation/Viability Assays | |
| XTT | 492nm |
| Cell Density | 620nm |
| Light Source | Tungsten halogen lamp |
|---|---|
| Measurement range | 0.000…4.000 OD |
| Precision | 0.5% 0.1-2.5 OD |
| Accuracy | 1% : 0.100 - 2.5 OD |
| Standard filters | 405, 450, 492, 620 nm |
| Wavelength Selection | Filters |
| Wavelength range | 400 - 750nm |
| Photometric Method | Transmission photometer |
| Detector | Single channel silicon photodiode |
| Reading Speed | 5 Seconds |
| Shaking | 4 modes |
| Optical system | Filters |
| Plate types | 96 well plate (flat, round and v-bottomed well formats) |
| Resolution | 0.001OD |
| Linearity (±) | <±0.25% and ±0.0025 OD from 0.1 OD to 2.5 OD at 492 nm |
| Data Output | USB 2.0 |
| Reproducibility | ±0.02 °C |
| Quality control | Autocalibration, autolamp adjustment, status report |
| Validation | Optional check plate |
| Dimensions | 360x515x315 mm |
| Net Weight | 10.4 Kg |
| Temperature Control | - |
| Computer Interface | USB 2.0 |
| Power | 90-250V, 50/60 Hz, 80VA |
| Power Supply | Voltage rating: 100VAC - 240 VAC; current rating: 50 /60 Hz, 1.5A |
| PC Operation | Yes |
| Software | Galapagos Software |
