Forced Convection Oven OF-01E (Discontinued)
Catalog Number:
AAH14016U
Availability:
Out of stock
***Discontinued by manufacturer**
__________________________________________________________________________________________________________________________

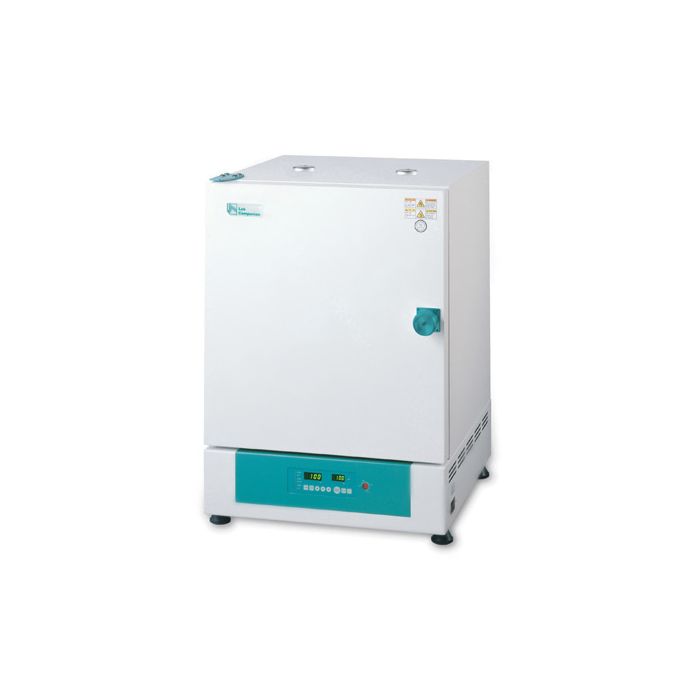

Lab Companion (Jeio Tech) - Economic Forced Convection Oven-OF-21E
Performance
- Temperature ranges from ambient +10°C to 220°C.
- Microprocessor PID control / Temperature calibration / Automatic tuning.
- Forced air convection generated by a circular fan provides high and uniform drying performance.
- Adjustable dual slide vents for inner vapor circulation.
Convenience
- Intuitive control panel with bright LED displays. (0.1°Cresolution)
- Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
- Convenient presetting function for 3 most commonly used temperature settings.
- Corrosion-resistant incoloy sheath heating element and stainless-steel interior.
- Easy-to-grip circular door handle.
Safety
- Keypad lock function prevents accidental changes during operation.
- Automatic run after power interruption.
- Over-temperature and over-current protection.
- Audible and visible open-door alarms.
| Chamber volume | 52 L /1.8 ft³ |
|---|---|
| Permissible environment condition | Temperature 5°C to 40°C, Maximum relative humidity 80%, Altitude up to 2,000m |
| Range | Amb. +10°C ~ 220°C |
| Fluctuation | ±0,4°C at 100°C |
| Controller | Digital PID auto tuning |
| Timer | Wait on time, Wait off time (Max. 99h 59m, Min. 1m) |
| Sensor | K-CA |
| Internal | Stainless steel, 0.6t |
| External | Steel, 1.2t, powder coating |
| Shelves | Stainless steel wire, electro polished |
| Heater (60Hz/50Hz) | Incology Sheath, 230VAC/1000W, 120VAC/800W |
| Insulation | Mineral wool (50t) |
| Door Gasket | High temperature grade foamed silicone rubber |
| Over temp. limit | Hydraulic over temp. limit |
| Ventilation Slide | Stainless steel, dia 38mm x 2EA |
| Safety Device | CLS (Custom Logical Safe) -Control System |
| Interior Dimensions | 375mm x 370mm x 370mm |
| Exterior Dimensions | 530mm x 535mm x 737mm |
| Electric Requirement | AC230V, 50/60Hz @ 4.3A / AC120V, 50/60Hz @ 6.8A |
| Net Weight | 36 Kg (80 lb) |
