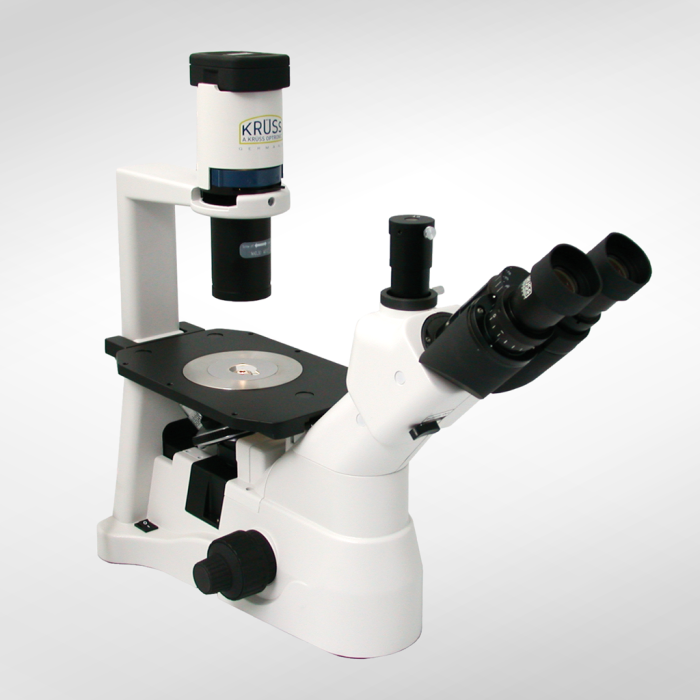

Kruess MBL3200 Inverted Microscope
Catalog Number:
MBL3200
Availability: In stock
Kruess
Professional Biological Inverse Microscope for identification and analysis of biological substances and cultures.
Versatile accessories, universally usable. Mirror reflex and video camera connection via photo- and C-mount video adapter.
Multicultural in the lab MBL3200 - Inverted microscope for biology and medicine
The inverted microscope is specially designed for the identification and analysis of biological substances and cultures. The lenses have a large working distance making it possible, for example, to examine samples through the bottom of Petri dishes. The photo and C-mount video adapter lets you connect SLR and video cameras.
- Stage size (WxDxH): 160 x 250 x 20 mm
- Width with mounted XY stage: 300 mm
- Movement range of XY stage: 80 x 118 mm
- Object field diameter:
- 5.5 mm with 4x/NA 0.10
- 2.2 mm with 10x/NA 0.25
- 0.55 mm with 40x/NA 0.65
- 1.1 mm with PH20x/NA 0.40
- Maximum object height
- 24 mm with 4x/NA 0.10
- 23 mm with 10x/NA 0.25
- 21 mm with 40x/NA 0.65
Power supply: 90–240 V. A wide range of accessories is available for the MBL3200.
| Optical equipment | Trinocular-Invers Microscope 10x plano eyepiece, objectives 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65, 20x phase contrast |
|---|---|
| Equipment | XY table, coaxial coarse/fine, iris diaphragm, filter holder, green filter |
| Lighting | 6 V 30 W adjustable |
| Special features | Inverse microscope, third tubular feature to connect to photo and video cameras |
| Use | Laboratory |
