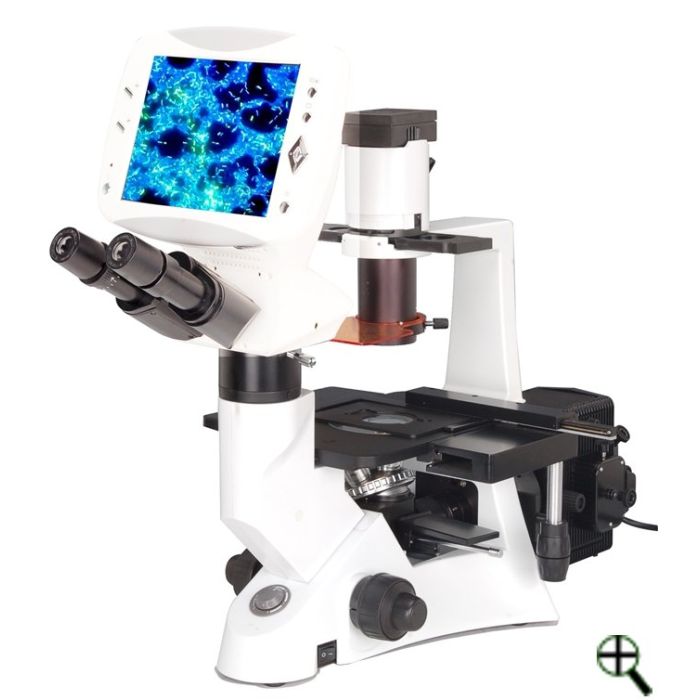

MBI LCD Screen Inverted Fluorescent Biological Microscope
Catalog Number:
LCD Screen Inverted Fluorescent Biological Microscope
Availability: In stock
MBI Lab Equipment - LCD Screen Inverted Fluorescent Biological Microscope
The LCD Screen Inverted Fluorescent Microscope is an epifluorescence device with an 8” LCD screen and a 5 Mega Pixel camera. It is equipped with long working distance plan achromatic lens, large field of vision eyepieces and it renovated the traditional way of microscopic observation and thoroughly resolves the fatigue for a long time working. Eyepieces and LCD Screen can both be used for convenient and comfortable viewing by individuals and share with groups. It also features the latest 5 Mega Pixel digital imaging microscopy techniques for quick and easy snapshots or videos. Innovative inverted structure, sharp image display, convenient and special for viewing cell tissue incubating.
Features
- Infinity flat-field fluorescence objective lens, providing high-quality optical imaging and ensuring clear images
- More stable and reliable power supply boxes, with digital display and a timer
- Protect the light leak with advanced lamp housing
- 8” LCD screen and a 5 Mega Pixels camera, images and videos can be share with other people
- Real time images display, images and video recording
- USB Cable for transferring data to a PC
- SD card (Maximal Storage Capacity is 4G) slot for storage and printing
- Equipped with long working distance condenser, phase contrast devices and long working distance flat-field phase contrast objective lens, it can be used to observe the objects in the culture bottles or culture dishes
| Pixel | 5 Mega Pixel |
|---|---|
| Photo Resolution | 2560X1920-1600X1200 |
| Video Resolution | 640X480 |
| Sensor Size | 1/2.5 Inches |
| LCD Screen | 8 Inches TFT Screen, Resolution is 800X 600 |
| Video Output | AV Output (NTSC/PAL) |
| Data Output | USB 2.0 |
| Storage | SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G) |
| Scene Mode | Standard / Softness / Vivid |
| Exposure Mode | Auto Exposure |
| Date Mode | Year, Month, Day, Hour, Minute |
| Viewing Head | Compensation Free Binocular Head Inclined at 30°,Interpupillary Distance 48-75mm |
| Eyepiece | High-point, Extra Wide Field Eyepiece EW10×/ 22 |
| Nosepiece | Quintuple Nosepiece |
| LWD Infinite Plan Objective | 4×/0.1, WD 18mm, 40×/0.6, WD 2.6mm (Standard) - 10×/0.25, WD 10mm, 20×/0.4, WD 5.1mm (Optional) |
| Infinite Plan Phase Objective | PH 10×/0.25, WD 10mm, PH 20×/0.4, WD 5.1mm (Standard) - PH 40×/0.6, WD 0.35mm (Optional) |
| Infinite Plan Fluorescent Objective | 4×/0.13, WD 16.3mm, 10×/0.3, WD 12.4mm, 20×/0.4, WD 1.5mm, 40×/0.6, WD 2.2mm (All Optional) |
| Condenser | ELWD Condenser NA 0.3, LWD 72mm |
| Focusing | Coaxial Coarse and Fine Adjustment, Vertical Objective Movement, Coarse Stroke 37.7mm per rotation, Fine Stroke 0.2mm per rotation |
| Stage | Plain stage 160×250 mm, Glass Insert, Auxiliary Stages70×180mm (Standard) - Attachable Mechanical Stage, X- Y Coaxial Control, Moving Range 120×78 mm, Terasaki Holder, ф38mm Petri Dish Holder, ф54mm Slide Glass Holder (Optional) |
| Illumination | LED 590 nm (est. life: >100.000 hours) |
| Filter | 10 gelatin filters mounted in glass -400, 440, 470, 490, 520, 550, 580, 590, 680, 700nm (or optional interference filters) |
| Phase Annulus | Included |
| Reflected Light Source | Blue excitation (excitation: BP460~490, dichroic mirror: DM500, barrier filter: BA520) Green excitation (excitation: BP510~550, dichroic mirror: DM570, barrier filter: BA590) |
| Reflected Light Source (Optional) | Blue one excitation (excitation: BP460~495, dichroic mirror: DM505, barrier filter: BA510-550) Ultraviolet excitation (excitation: BP330~385, dichroic mirror: DM400, barrier filter: BA420) Violet excitation (excitation: BP400~410, dichroic mirror: DM455, |
| Lamps | 100W HBO Ultra High-voltage Spherical Mercury Lamp |
| Protection barrier | Barrier to Resist the Ultraviolet Light |
| Power Supply | Power Supplier NFP-1, 220V/ 110V interchangeable, Digital Display |
| Immersion Oil | Fluorescent Free Oil |
| Centering Plate | Included |
| Neutral ND25/ ND6 Filter | Optional |
| Centering telescope(ф30) | Optional |
