LN2 Dewars - 5LD (5 Liters)
LN2 Dewars - 5LD (5 Liters)

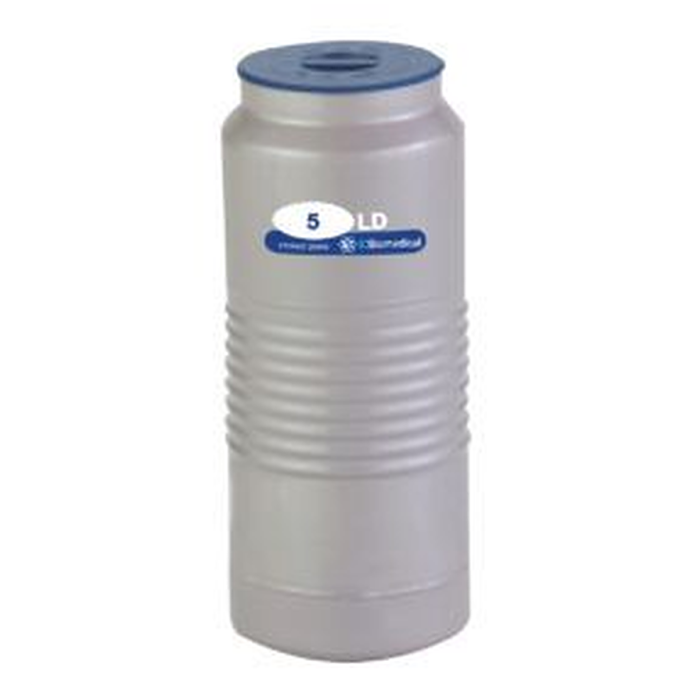

SKU: 5LDThe 5LD liquid nitrogen dewar is built for the safe storage and dispensing of small amounts of liquid nitrogen. Its extra-wide 5.6 in. (142.2 mm) necktube allows quick, easy pouring, while the rugged ribbed aluminum body and advanced insulation deliver reliable thermal performance in a compact, portable format.
Key Features
- 5 liter LN2 capacity in a compact, easy-to-carry format
- Rugged ribbed high-strength aluminum body, magneformed necktube design, and more durable paint
- Snap-on cap and necktube assures a tight closure
- Advanced insulation materials assure high thermal efficiency
Specifications
| Performance | |
|---|---|
| LN2 Capacity | 5 L |
| Static Hold Time | 6 days |
| Evaporation Rate | 0.77 L/day |
| Dimensions | |
|---|---|
| Necktube | 5.6 in / 142.2 mm |
| Outside Diameter | 7.6 in / 193 mm |
| Height | 17.5 in / 444.5 mm |
| Weight | |
|---|---|
| Empty | 6.9 lb / 3.1 kg |
| Full | 15.8 lb / 7.2 kg |
LD Series Accessories
Liquid Withdrawal Device
Enables the LD25, LD35 and LD50 to conveniently pressure-transfer liquid nitrogen at rates up to 8 liters per minute. Low pressure (7 psig / 0.5 bar) assures safe dispensing through a phase separator or accessory transfer hose. Model 80 phase separator included.
P/N 369383Transfer Hoses
Flexible stainless steel hoses for cryogenic fluid transfer, in 4 ft (1.2 m) or 6 ft (1.8 m) lengths with CGA295 female and 3/8 in. NPT male fittings, or CGA295/CGA295 female fittings. Vacuum-jacketed (VJ Super Flex) versions also available.
P/N 367112 P/N 367111 P/N 367720 P/N 367882 P/N 367883 P/N 367884Cryogenic Phase Separators
Designed to minimize hazardous splashing when transferring liquid into open containers. Available in three sizes; the two larger models fit the 3/8 in. MNPT end of the transfer hoses.
P/N 367076 P/N 367077 P/N 367078Roller Base & Tipping Stand
Sturdy aluminum five-caster roller bases move refrigerators and dewars easily and safely, in three sizes for 15.6 in. (396 mm), 18.8 in. (478 mm) and 26.7 in. (678 mm) diameter units. The tipping stand for the LD25 adds mobility and assists LN2 transfer. Lockable casters included.
Cryo-Sentry Low Level Alarm
Visual alarm, audible alarm and relay output when the liquid nitrogen in the vessel needs replenishing, with an optional remote alarm plug for a dialer or monitoring system. Operates on a global 9VDC wall transformer or AA batteries. For use with XT20, XT34, HC20, HC34, HC35, VHC35, VHC38, LS750, LS3000, LS4800, LS6000, AI21 and TORO vessels.
Dippers & Measuring Rods
Safe and convenient LN2 dipper with 0.7 cubic inch (12 cc) capacity, plus low-conducting measuring rods that clearly show the LN2 level of a dewar in inches and centimeters (36 in. and 48 in. lengths).
P/N 366744 P/N 366784 P/N 367656Also available: replacement canisters and neck tube cores, racks and boxes.
| LN2 Capacity | 5 liters |
|---|---|
| Static hold time | 6 days |
| Evaporation rate (Liter/days) | 0.77 |
| Dimensions Necktube | 142.2 mm |
| Dimensions Height | 444.5 mm |
| Dimensions Outside diameter | 193 mm |
| Weight Empty | 3.1 kg |
| Net Weight | 7.2 kg |
| Catalog Number | Product Name | Price | Qty |
|---|---|---|---|
| 92-0600 | LN2 Withdrawal Device | ||
| 00-9930 | ROLLERBASE - DIRECTOR |
