Low Temperature Incubators, IL-11 (150 Liters) (Discontinued)
Catalog Number:
AAH22046U
Availability:
Out of stock
***This product has been discontinued***
Please see equivalent: Low Temperature Incubators, IL3-14 (150 Liters)
For repair and maintenance please communicate with our service department at [email protected]
__________________________________________________________________________________________

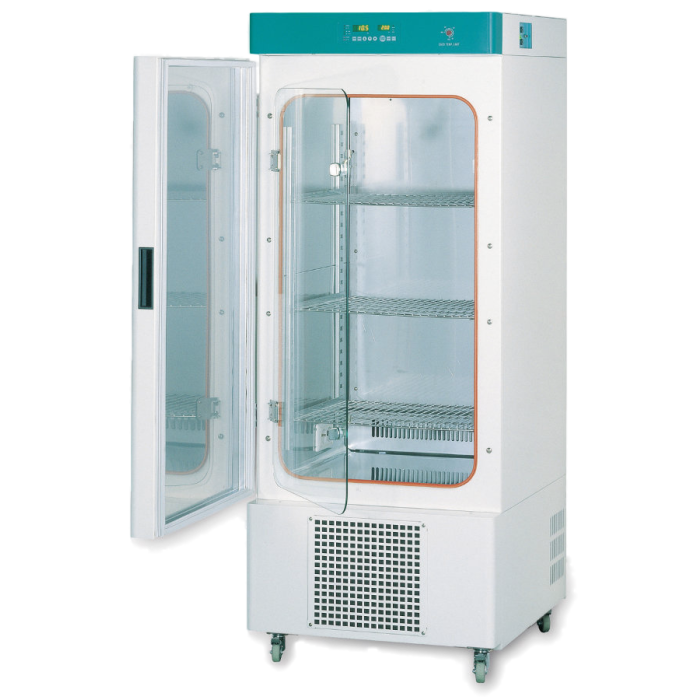

Lab Companion (Jeio Tech) - Low Temperature Incubators, IL-11 (150 Liters)
Features
- Application : Incubate biological cultures, drug stability testing
- CLS - Control System and PID microprocessor controller with enhanced safety features.
- Temperature safety exceeds DIN Class II controller.
- Auto-Tuning function & Bias function � internal built in re-calibration
- Timer : Time Delay ON / OFF (standard 99hr 59min)
- Selectable measuring temperature units ∈ and ∈
- Selectable Auto-run or Manual - run
- Audible visual and audio alarm - OT and Door Open
- Temperature range : +4∈ to + 60.0∈
- Very good uniformity and stability
- Incoloy sheath heater
- Temperature Profiling - 9 step and repeat up to 999 cyclesa
- HBP Type Compressor - low ice formation and condensation
- Automatic hot gas bypass defrost system allows continuous operation
- Adjustable fan speed
- Cross type Circular FAN for regular Temp. distribution, and Air flow is indirect way
- Step-by-step Temp. program and lock function to protect set values from changing is possible
- Magnetic packing Door makes impact relief and durable airtight for IL.
- RS-232 communication interface with software (FREE)
- Height adjustable foot for flat installation.( IL-11)
| Chamber volume | 150 L / 5.3 ft³ |
|---|---|
| Permissible Environmental Condition | Temperature 5¹C to 40¹C Maximum relative humidity 80% Altitude up to 2,000m |
| Temperature Range | Amb. +4°C - 60°C |
| Temperature Accuracy | ± 0.1°C at 20°C |
| Temperature Uniformity | ± 0.8°C at 100°C |
| Temperature Control | Digital PID auto tuning |
| Timer | Wait on time, Wait off time (Max. 99h 59m, Min. 1m) |
| Sensor | Pt 100Ω |
| Internal | Stainless steel, 0.6t |
| External | Steel, 0.8t powder coating |
| Shelves | Stainless steel wire, electro polished |
| Heater (60Hz/50Hz) | Fin type 600W |
| Insulation | Nonflammable polystyrene (20mm/10mm) |
| Over temp. limit | Hydraulic over temp. limit |
| Refrigerator | 1/8Hp(HBP) |
| Safety Device | CLS (Custom Logical Safe) -Control System |
| Power Supply | 120VAC, 60Hz |
| power consumption [W] | 4.5A(230VAC) |
