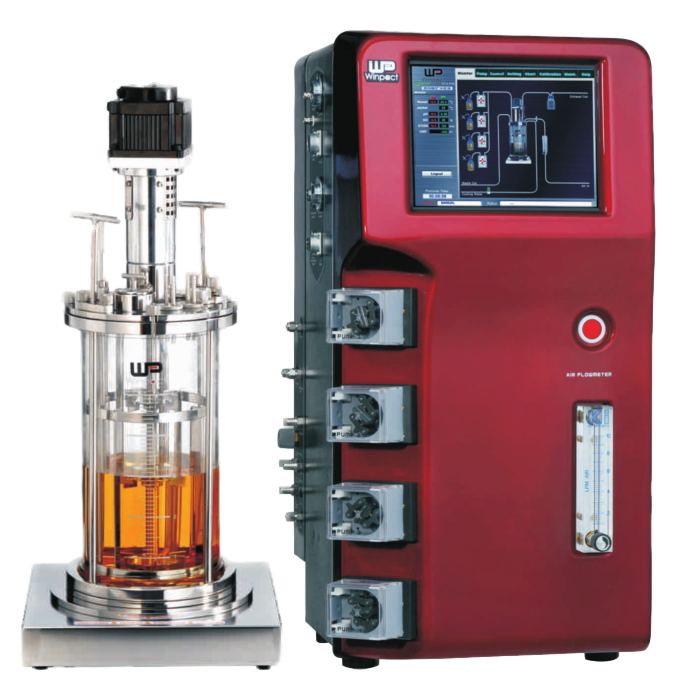

MBI Complete Dry Heating Fermentation System for 5L Single Wall Plain Bottom Vessel
Catalog Number:
FS-02-D05P-110/ 220V
Availability: In stock
MBI Lab Equipment - Complete Dry Heating Fermentation System for 5L Single Wall Plain Bottom Vessel, 110V/ 220V
- Durable vessel design for the routine and heavy duty job
- Colorful touch screen and Graphical user interface for easy operation
- Real-time trend data recording ensures best fermentation performance
- 2-stage DO cascade for precise DO(Dissolved oxygen) level control
- Ethernet remote control ability allows you navigate and operate your fermentation process from desktop
- 4 built-in assignable and programmable peristaltic pump for automatic pH, Antifoam and Feeding control
- Full accessories are offered as a standard package Wider temperature control range, up to 90°C (194 )
- No additional software required
- Low voltage DC brushless motor
- Quick connectors for easy operation
Description
The single wall plain bottom vessel is an ideal instrument for your routine culture or educational purpose. Durable stainless steel supporting rods and bottom plate are designed to withstand the heavy duty job. Fast cooling/heating is achievable through inner cooling coil and heating base unit. This vessel can be an excellent tool for microbial culture. Different optional devices such as ORP and O2 enrichment are also available upon request. On the controller part, we also provide manual/programmable mode for easy operation. Full accessories are offered as a standard package to help user easily set up the fermentation process.
Application:
-
Ideal for aerobic and anaerobic microbial such as E. coli and yeast culture.
Thermostat System
Dry Heating System
Dry Heating System with Single Wall Plain Bottom Vessel and Heating Base Unit includes :
Controller
- Dry Heating System Controller
- Built-in rotameter
- 4x built-in pump head
Vessel
- Single wall dish bottom vessel (includes glass body, head plate, T handing bar, 2 probe adaptors)
- 3 pcs of adjustable Ruston-type impeller
- Baffle assembly
- Condenser assembly
- Air sparger
Motor
- Agitation Motor
Probes
- 1x pH probe and 1x pH cable
- 1x DO probe and 1x DO cable
- 1x Temperature probe and 1x Temperature cable
- 1x Foam/Level Sensor and 1x Foam/Level Sensor cable
MBI Fermentor
| Vessel Working volume (Liters) | 5 L |
|---|---|
| Vessel Total volume (Liters) | 6.8 L |
| Material | Borosilicate glass / 316L stainless steel for headplate and all fittings |
| Display | 10.4” Colorful touch-screen interface |
| PC interface | USB - ethernet - RS-485 |
| Methods | Up to 59,994 process programs |
| Dimensions | 400 x 500 x 740 mm / (15.75” x 19.69” x 29.13”) |
| Body material | ABS front panel and painted iron housing |
| Power | 110V / 220V; 50/60 Hz |
| Air flow | 0, 1 – 10 LPM |
| Temperature Control | Thermostat system; Built-in heat exchanger (400 W heater/water circulation pump); Automatic cooling water valve |
| Temperature range (°C) | +5ºC to +60ºC |
| Temperature Resolution | 0.1C |
| Temperature sensor | Platinum RTD probe (Pt 100) |
| Temperature Program control (℃/℉) | Programmable 15 steps PID control |
| Shaker Speed | Two agitation motor types: a. For fermentation and cell culture: 30 – 1200 rpm b. For extremely shear-sensitive cell line: 5 – 300 rpm (optional) |
| Agitation drive | Removable top brushless motor |
| Shaker speed increments | 1 rpm |
| Agitation impeller | Two impeller types: a. For shear-sensitive cell culture: 2 pcs of adjustable Pitched-blade impeller b. For fermentation: 3 pcs of adjustable Rushton-type impeller (optional) Note: Customized impellers are available |
| pH | 2 - 14 |
| Readability pH | 0.01 |
| pH Probe | Gel-filled electrode; Autoclavable |
| pH Control mode | PID, One point control with adjustable dead band |
| Dissolved Oxygen range | 0 – 200% |
| Dissolved Oxygen resolution | 0.1% |
| Dissolved Oxygen probe | Polarographic DO sensor; Autoclavable |
| Dissolved Oxygen Control Mode | Cascade function to response to a. Increase or decrease agitation speed b. Oxygen enrichment module (optional) c. Start substrate feeding program |
| ORP Measurement Range | -/+ 2000 mV |
| ORP Resolution | 1 mV |
| ORP Probe | Gel-filled electrode; Autoclavable (optional) |
| Foam Probe | 316L stainless steel protector with insulated teflon tube; On/Off control |
| Peristaltic pumps | 4 Built-in pumps; One external pump (optional, RS-485 interface with relay output) |
| Peristaltic pump motor type | Precise stepping motor; minimum speed is 1 rpm |
| Peristaltic Pump Speed Range | 0 – 65 rpm |
| Peristaltic Pump Speed Increment | 1 rpm |
| Peristaltic Pump Control mode | Programmable 15 steps feeding control; Pump can be assigned for Acid, Base, Antifoam and Substrate |
| Exhaust Device type | 316L stainless steel condenser |
| Requirements | Air 1 Bar maximum, must be dry, oil-free and filtered (14.5 psi), Autoclave For sterilization, Power supply 100-120V 50/60Hz or 210-230V 50/60Hz with electrical safety cutoff switch, Water 2 Bar maximum (29 psi) |
| Mammalian Cell Culture | Good |
| Plant Cell Culture | Good |
| Insect Cell Culture | Good |
| Fragile Cell Culture | Not recommended |
| Aerobic Microorganism Culture | Very Good |
| Micro-aerobic Microorganism Culture | Very Good |
| Anaerobic Microorganism Culture | Very Good |
| Photosynthesis Cell Culture | Very Good |
