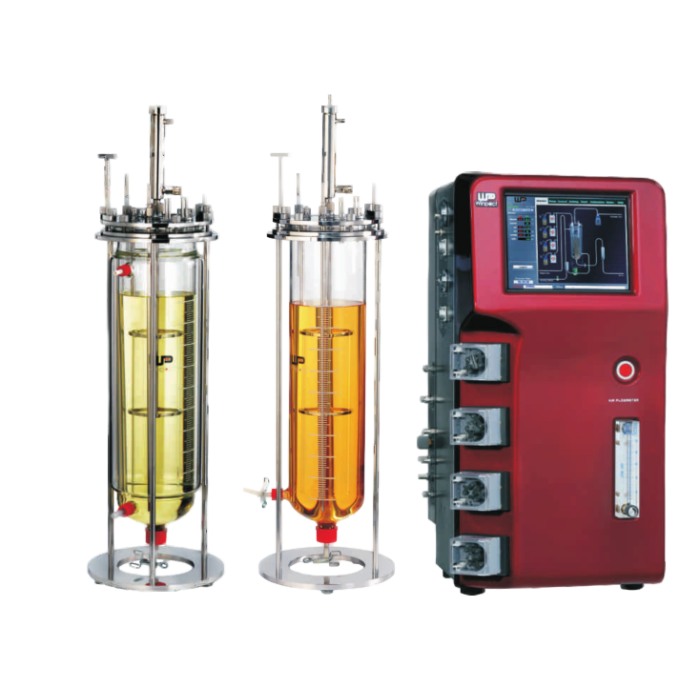

MBI Complete Thermostat Fermentation System for 5L Double Jacketed Air Lifter Vessel
Catalog Number:
FS-01-C052P-110/ 220V
Availability: In stock
MBI Lab Equipment - Complete Thermostat Fermentation System for 5L Double Jacketed Air Lifter Vessel
- Micro-sparger adjustable draft tube to facilitate water circulation and achieve high aeration efficiencies
- Single wall or double jacketed vessels available
- Colorful touch screen and Graphical user interface for easy operation
- Real-time trend data recording ensures best fermentation performance
- 2-stage DO cascade for precise DO(Dissolved oxygen) level control
- Ethernet remote control ability allows you navigate and operate your fermentation process from your desktop
- 4 built-in assignable and programmable peristaltic pumps for automatic pH, Antifoam and Feeding control
- Full accessories are offered as a standard package and
- No additional software required
- Low voltage DC brushless motor
- Quick connectors for easy operation
Description
The Air lifter system is specifically applied for cell lines that require air mixing functions. The unique agitator-free design helps cells circulate within the vessel without breaking the morphology. One of the main applications of air lifter system is plant cells culture. With large vessel surface area and optional external light source, plant cells are able to perform photosynthesis reaction easily.
Double jacketed and single wall vessels ( with and without temperature control) are both available upon request.
The air lifter system is run by either manual or programmable mode with real-time recording. This ensures that your scientific results can be optimized and each batch of your fermentation process can be analyzed. Full accessories are also offered as a standard package to help first-time users quickly set up their fermentation process.
Thermostat System
Dry Heating System
Controller
- Thermostat System Controller
- Built-in rotameter
- 4x built-in pump head
Vessel
- Air lifter vessel (includes glass body, head plate, draft tube,T handing bar, 2 probe adaptors)
- Condenser assembly
- Micro sparger assembly
Probes
- 1x pH probe and 1x pH cable
- 1x DO probe and 1x DO cable
- 1x Temperature probe and 1x Temperature cable (Double jacketed vessel only)
- 1x Foam/Level Sensor and 1x Foam/Level Sensor cable
MBI Fermentor
| Vessel Working volume (Liters) | 5 L |
|---|---|
| Vessel Total volume (Liters) | 6.8 L |
| Material | Borosilicate glass / 316L stainless steel for headplate and all fittings |
| Display | 10.4” Colorful touch-screen interface |
| PC interface | USB - ethernet - RS-485 |
| Methods | Up to 59,994 process programs |
| Dimensions | 400 x 500 x 740 mm / (15.75” x 19.69” x 29.13”) |
| Body material | ABS front panel and painted iron housing |
| Power | 110V / 220V; 50/60 Hz |
| Air flow | 0, 1 – 10 LPM |
| Temperature Control | Thermostat system; Built-in heat exchanger (400 W heater/water circulation pump); Automatic cooling water valve |
| Temperature range (°C) | Amb.+5ºC to 60ºC |
| Temperature Resolution | 0.1C |
| Temperature sensor | Platinum RTD probe (Pt 100) |
| Temperature Program control (℃/℉) | Programmable 15 steps PID control |
| pH | 2 - 14 |
| Readability pH | 0.01 |
| pH Probe | Gel-filled electrode; Autoclavable |
| pH Control mode | PID, One point control with adjustable dead band |
| Dissolved Oxygen range | 0 – 200% |
| Dissolved Oxygen resolution | 0.1% |
| Dissolved Oxygen probe | Polarographic DO sensor; Autoclavable |
| Dissolved Oxygen Control Mode | Cascade function to response to a. Increase or decrease agitation speed b. Oxygen enrichment module (optional) c. Start substrate feeding program |
| ORP Measurement Range | -/+ 2000 mV |
| ORP Resolution | 1 mV |
| ORP Probe | Gel-filled electrode; Autoclavable (optional) |
| Foam Probe | 316L stainless steel protector with insulated teflon tube; On/Off control |
| Peristaltic pumps | 4 Built-in pumps; One external pump (optional, RS-485 interface with relay output) |
| Peristaltic pump motor type | Precise stepping motor; minimum speed is 1 rpm |
| Peristaltic Pump Speed Range | 0 – 65 rpm |
| Peristaltic Pump Speed Increment | 1 rpm |
| Peristaltic Pump Control mode | Programmable 15 steps feeding control; Pump can be assigned for Acid, Base, Antifoam and Substrate |
| Exhaust Device type | 316L stainless steel condenser |
| Requirements | Air 1 Bar maximum, must be dry, oil-free and filtered (14.5 psi), Autoclave For sterilization, Power supply 100-120V 50/60Hz or 210-230V 50/60Hz with electrical safety cutoff switch, Water 2 Bar maximum (29 psi) |
| Mammalian Cell Culture | Not recommended |
| Plant Cell Culture | Very Good |
| Insect Cell Culture | Not recommended |
| Fragile Cell Culture | Very Good |
| Aerobic Microorganism Culture | Very Good |
| Micro-aerobic Microorganism Culture | Not recommended |
| Anaerobic Microorganism Culture | Not recommended |
| Photosynthesis Cell Culture | Very Good |
