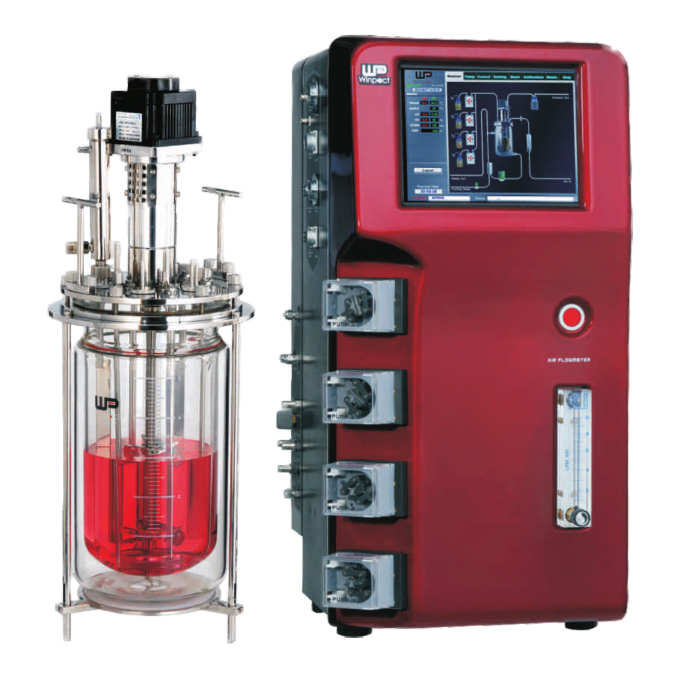

MBI Complete Thermostat Fermentation System for 5L Single Wall Dish Bottom Vessel
Catalog Number:
FS-01-B05P-110/ 220V
Availability: In stock
MBI Lab Equipment - Complete Thermostat Fermentation System for 3L Single Wall Dish Bottom Vessel
- Interchangeable impeller flexibility for different cell types
- Colorful touch screen and Graphical user interface for easy operation
- Real-time trend data recording ensures best fermentation performance
- 2-stage DO cascade for precise DO(Dissolved oxygen) level control
- Ethernet remote control ability allows you navigate and operate your fermentation process from your desktop
- 4 built-in assignable and programmable peristaltic pump for automatic pH, Antifoam and Feeding control
- Full accessories are offered as a standard package provide
- No additional software required
- Low voltage DC brushless motor
- Quick connectors for easy operation
Description
This system is equipped with a thermostat temperature control system and vessel with an inner coil to achieve fast cooling/heating rate. Flexible impeller selections allow users to choose the suitable impeller to fit their cell type.
Users can easily operate a fermentation process using manual/programmable mode through the touch control interface. With real-time data recording and remote control function, users will be able monitor and optimize the fermentation process. Full accessories are provided as a standard package to help the user start up the fermentation process.
Application:
- Excellent for aerobic or anaerobic microbial
- culture; ideal for plant cell and
- photosynthesis culture.
- Thermostat System with Single Wall Dish Bottom Vessel
Thermostat System
Dry Heating System
Thermostat System with Single Wall Dish Bottom Vessel includes：
Controller
- Thermostat System Controller
- Built-in rotameter
- 4x built-in pump head
Vessel
- Single wall dish bottom vessel (includes glass body, head plate, T handing bar, 2 probe
- adaptors)
- 3 pcs of adjustable Ruston-type impeller
- Baffle assembly
- Condenser assembly
- Air sparger assembly
Motor
- Agitation Motor
Probes
- 1x pH probe and 1x pH cable
- 1x DO probe and 1x DO cable
- 1x Temperature probe and 1x Temperature cable
- 1x Foam/Level Sensor and 1x Foam/Level Sensor cable
MBI Fermentor
| Vessel Working volume (Liters) | 5 L |
|---|---|
| Vessel Total volume (Liters) | 6.8 L |
| Material | Borosilicate glass / 316L stainless steel for headplate and all fittings |
| Display | 10.4” Colorful touch-screen interface |
| PC interface | USB - ethernet - RS-485 |
| Methods | Up to 59,994 process programs |
| Dimensions | 400 x 500 x 740 mm / (15.75” x 19.69” x 29.13”) |
| Body material | ABS front panel and painted iron housing |
| Power | 110V / 220V; 50/60 Hz |
| Air flow | 0, 1 – 10 LPM |
| Temperature Control | Thermostat system; Built-in heat exchanger (400 W heater/water circulation pump); Automatic cooling water valve |
| Temperature range (°C) | +5ºC to +60ºC |
| Temperature Resolution | 0.1C |
| Temperature sensor | Platinum RTD probe (Pt 100) |
| Temperature Program control (℃/℉) | Programmable 15 steps PID control |
| Shaker Speed | Two agitation motor types: a. For fermentation and cell culture: 30 – 1200 rpm b. For extremely shear-sensitive cell line: 5 – 300 rpm (optional) |
| Agitation drive | Removable top brushless motor |
| Shaker speed increments | 1 rpm |
| Agitation impeller | Two impeller types: a. For shear-sensitive cell culture: 2 pcs of adjustable Pitched-blade impeller b. For fermentation: 3 pcs of adjustable Rushton-type impeller (optional) Note: Customized impellers are available |
| pH | 2 - 14 |
| Readability pH | 0.01 |
| pH Probe | Gel-filled electrode; Autoclavable |
| pH Control mode | PID, One point control with adjustable dead band |
| Dissolved Oxygen range | 0 – 200% |
| Dissolved Oxygen resolution | 0.1% |
| Dissolved Oxygen probe | Polarographic DO sensor; Autoclavable |
| Dissolved Oxygen Control Mode | Cascade function to response to a. Increase or decrease agitation speed b. Oxygen enrichment module (optional) c. Start substrate feeding program |
| ORP Measurement Range | -/+ 2000 mV |
| ORP Resolution | 1 mV |
| ORP Probe | Gel-filled electrode; Autoclavable (optional) |
| Foam Probe | 316L stainless steel protector with insulated teflon tube; On/Off control |
| Peristaltic pumps | 4 Built-in pumps; One external pump (optional, RS-485 interface with relay output) |
| Peristaltic pump motor type | Precise stepping motor; minimum speed is 1 rpm |
| Peristaltic Pump Speed Range | 0 – 65 rpm |
| Peristaltic Pump Speed Increment | 1 rpm |
| Peristaltic Pump Control mode | Programmable 15 steps feeding control; Pump can be assigned for Acid, Base, Antifoam and Substrate |
| Exhaust Device type | 316L stainless steel condenser |
| Requirements | Air 1 Bar maximum, must be dry, oil-free and filtered (14.5 psi), Autoclave For sterilization, Power supply 100-120V 50/60Hz or 210-230V 50/60Hz with electrical safety cutoff switch, Water 2 Bar maximum (29 psi) |
| Mammalian Cell Culture | Good |
| Plant Cell Culture | Good |
| Insect Cell Culture | Good |
| Fragile Cell Culture | Not recommended |
| Aerobic Microorganism Culture | Very Good |
| Micro-aerobic Microorganism Culture | Very Good |
| Anaerobic Microorganism Culture | Very Good |
| Photosynthesis Cell Culture | Very Good |
