Microarray Scanner - MBI Innoscan AutoLoader 710AL
Catalog Number:
MBIIS710-AL
Availability:
In stock
MBI Innoscan AutoLoader 710,

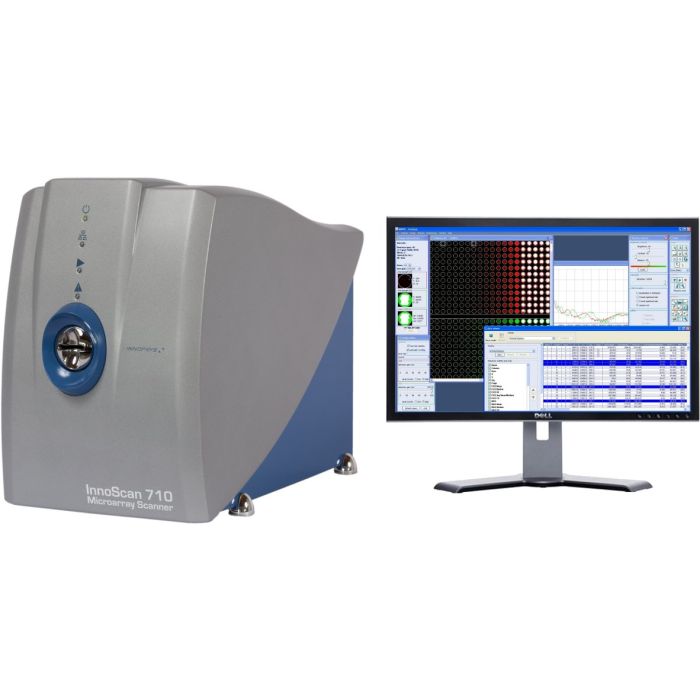

Microarray Scanner - MBI Innoscan 710 AutoLoader
Confocal Fluorescence Scanner with 24-Slide Autoloader
MBI offers a range of portable, low-cost microarray scanners for the research and industry markets (Health, Diagnostic, Agri-food, etc.). InnoScan 710 AutoLoader is a dual-color fluorescence scanner (532nm/635nm) with 24-slide autoloader capacity and barcode reader, suitable for all microarrays (DNA and protein array scans) spotted on standard slides combining performance with cost-effectiveness for high-throughput applications (gene expression, mutation detection, SNP analysis, aCGH, etc.).
Key Features
- 24-slide autoloader capacity with automatic barcode reader for high-throughput screening
- Dual-color scanning: simultaneous 532nm (Green) and 635nm (Red) detection
- Compatible with Cy3/Cy5 and Alexa Fluor dye series
- Fast scanning system: proprietary scanning system allows less than 4 minutes per slide scan time
- High resolution acquisition: scans spot sizes from 200 μm to less than 10 μm
- Real-time image acquisition for DNA, protein microarrays, tissue or cell arrays
- Low background noise and high sensitivity with real-time confocal detection
- Uniform scanning across whole microarray surface (glass and plastic substrates)
- Ethernet interface for easy data sharing and multi-user network access
- MAPIX software included with batch processing capabilities for 24-slide workflows
Mapix Microarray Image Analysis Software
Optimization and accuracy of results
- Highly efficient algorithm for rapid gridding through automatic spot searching
- Automatic spot segmentation ensures high-quality experiment data
- Gridding performance adapted to high resolution of InnoScan scanner
- Batch processing optimized for 24-slide autoloader productivity
- Regular software updates available online
- Convivial interface with zoom, luminosity, contrast, balance controls
Technical Specifications
InnoScan 710 AL (AutoLoader Module)
| Loader Capacity | 24 slides with automatic barcode reading |
| Dimensions (L×D×H) | 322 x 656 x 439 mm3 (12.7" x 25.8" x 17.3") |
| Weight | 31 kg (62 lbs) |
InnoScan 710 (Base Unit)
| Resolution | 3 - 40μm/pixel |
| Laser Excitation | 532nm (Green) / 635nm (Red) |
| Compatible Fluorophores | Cy3, AF546, AF555 / Cy5, AF647, AF660 |
| Laser Power | Adjustable (0-100%) |
| Detection Type | Real-time confocal with 2 photomultipliers (PMT) |
| PMT Gain | Adjustable 0-100% (Linear 1-100%) |
| Optical Filter | 1 standard fluorescent filter per channel |
| Focus | Real-time autofocus; Manual: 300 μm range, 1 μm increment |
| Slide Size | Standard microscope slides: 25-26 x 75-76 mm2; thickness: 0.9-1.2 mm |
| Scanning Area | Adjustable up to 22 x 74 mm2 |
| Scanning Speed | 10-35 lines/second; 3.6 min/slide at 10 μm/pixel (dual-color) |
| Dynamic Range | > 104 (normal) or > 106 (dynamic extension) |
| Uniformity | > 95% |
| Interface | Ethernet interface |
| Image Format | TIFF (16-bit and 20-bit in dynamic extension mode) |
| Power Supply | 100-240 VAC, 1.2 A, 50-60 Hz |
| Software | MAPIX (acquisition and quantification) |
| Dimensions (L×D×H) | 278 x 457 x 369 mm3 (10.8" x 18.0" x 14.5") |
| Weight | 15.5 kg (34.2 lbs) |
| Resolution | from 3 to 40 µm/pixel |
|---|---|
| Sensitivity | 0.05 fluor. / um^2 |
| Excitation wavelength | 635 nm and 532 nm (635 and 785 for IR model) |
| Scanning speed | from 10 to 35 lines / sec. (Limited to 20 lines/sec. for pixel size under 2 um |
| Scanning area | 22 x 74 mm^2 |
| Dynamic range (linearity) | > 10^4 |
| Laser | Laser diode, adjustable (2 laser power available) |
| Gain PMT | Linear from 0 to 100% |
| Autofocus | Real-time |
| Detection | Real confocal and digital PMT |
| Pixel Size | From 1 to 40 um (model InnoScan 900) and From 3 to 40 um (model InnoScan 710) |
| Interface | ethernet |
| Image format | TIFF (16 bits grey scale) |
| Image analysis | yes (accurate grid positioning, reliable calculations and export results) |
| Sample | All standard microscope slide 25 x 75mm^2 / 1 x 3 " |
| Barcode reader | Yes |
| Power Supply | 100-240 VAC |
| Dimensions | 333 x 595 x 416 mm^3 (InnoScan 710AL and 900AL) |
| Net Weight | 27 kg (58.5 lbs) (InnoScan 710AL and 900AL) |
| Option: Autoloader capacity | 24 slides autoloader included |
| Option: Autoloader Load / unload time | under 5 seconds |
| Option: Autoloader software | Total integration in the MAPIX software coming with the Innoscan Scanners |
