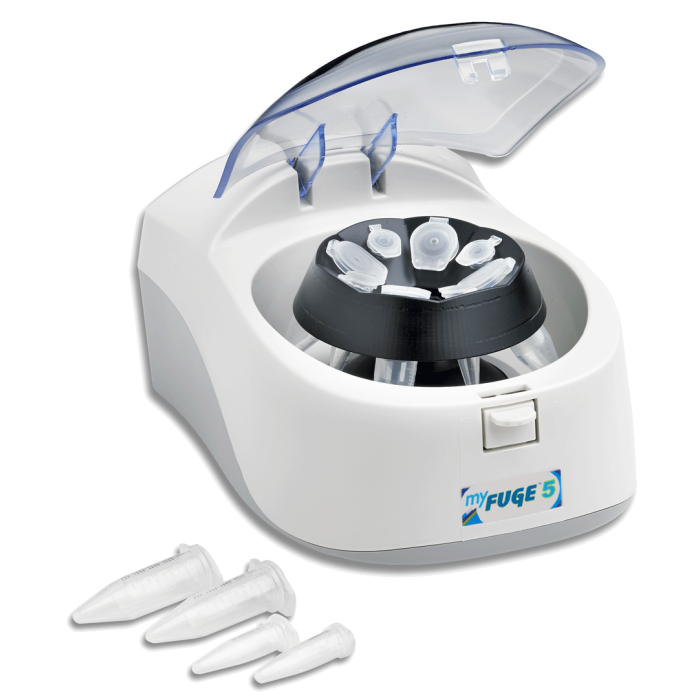

MBI MyFUGE 5 (max capacity 4 x 5 ml, max. RCF 2,000xg)
Overview
The MBI MyFUGE 5 is a combination mini centrifuge engineered for quick spin-downs of both 5 mL centrifuge tubes and standard 1.5/2.0 mL microtubes. Its unique four-position combination rotor accepts 5 mL snap-cap tubes directly, plus four additional slots for microtubes — all in one compact footprint.
Operation is effortless: simply close the lid and the unit accelerates to a fixed 5,500 rpm. Open the lid and the rotor decelerates to a stop for safe sample removal. Included adapters expand compatibility to 12×75 mm blood/culture tubes and cryovials, while optional adapters support 0.5 mL and 0.2 mL tubes.
At just 1 kg and 140 × 140 × 200 mm, the MyFUGE 5 conserves valuable bench space without sacrificing versatility.
Key Advantages
- Combination rotor: 4 × 5 mL + 4 × 1.5/2.0 mL in one unit
- Fixed 5,500 rpm / 2,000×g — no programming needed
- Lid-close to start, lid-open to stop
- Adapters included for 12×75 mm tubes and cryovials
- Optional adapters for 0.5 mL and 0.2 mL tubes
- Ultra-compact at only 1 kg
Features
Applications
Technical Specifications
| Catalog Number | MBIB1194 |
| Model Name | MBI MyFUGE 5 Mini Centrifuge |
| Max. Speed | 5,500 rpm (fixed) |
| Max. RCF | 2,000 × g |
| Capacity | 4 × 5 mL centrifuge tubes 4 × 1.5/2.0 mL microtubes |
| Rotor Type | Combination 4+4 position |
| Included Adapters | 12×75 mm tubes, cryovials |
| Optional Adapters | 0.5 mL tubes, 0.2 mL tubes, cryovials / HPLC vials |
| Refrigeration | Non-Refrigerated |
| Power Supply | 120V, 60Hz |
| Dimensions (H × W × D) | 140 × 140 × 200 mm |
| Weight (without rotor) | 1 kg |
Accessories & Consumables
| Refrigerated | Non-Refrigerated |
|---|---|
| Capacity | 4 x 5ml |
| Temperature Range | N/A |
| Max. RCF [xg] | 2,000xg |
| Max. Speed [rpm] | 5,500 |
| Power Supply | 120V, 60Hz |
| Height x Width x Depth [mm] | 140 x 140 x 200 [mm] |
| Weight without rotor [kg] | 1 [kg] |
