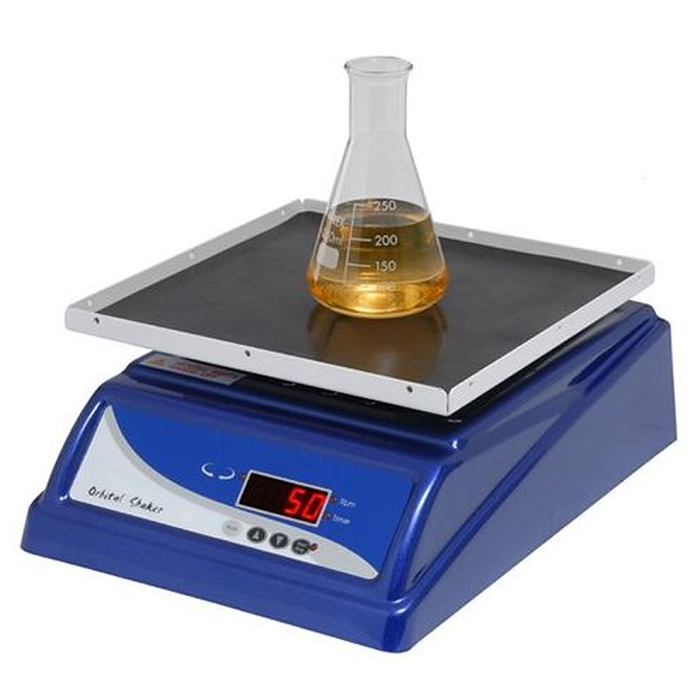

MBI Orbital Shaker, 30 x 30 cm platform (10 kg)
Catalog Number:
MBIMS-NOR-30
Availability:
In stock
$1,536.11
MBI Lab Equipment - Orbital Shaker, 30 x 30 cm platform (10 kg)
General purpose laboratory shaker with 30 x 30cm platform
Features
- Continuous one-way orbital shaking or forward and backward orbital shaking
- Dual platform capability
- 10 kg carry capability
- Microprocessor control
- Timer
- 30 x 30 cm platform
Specifications
| Motion | Orbital |
|---|---|
| Moving Feature | Orbital action in one direction or two directions |
| Bi-directional Shaking | 0.1 - 10 circle / 0.1 circular increment |
| Maximum Tilt Angle | N / A |
| Maximum Stroke Length | 20mm |
| Controller | Digital microprocessor controller |
| Speed/Inc. | 0 - 200rpm / 1rpm |
| Timer | 9999 (min) with alarm / Continuous |
| Loading Capacity | 22.0lb (10kg) |
| Motor | Stepping motor |
| Operating Temperature | Ambient to 40° |
| Platform Dimension (WxL) | Approx. 1.2"x1.2" (300x300mm) |
| Platform Material | Painted iron metal |
| Stacking Platform | Yes |
| Dimension (WxLxH) | Approx. 11.8"x12.2"x5.1" (300x310x130mm) |
| Material | ABS and Painted iron metal |
| Weight | Approx. 15.4lb (7.0kg) |
| Rated Voltage | 110V / 220V~ selectable; 50/60Hz; 0.63A |
| Motion | Orbital |
|---|---|
| Forward and backward orbit | 0.1~10 circle; 0.1 circular increment |
| Speed | 0 - 200 RPM / 1 RPM |
| Orbit | 20mm |
| Timer | 0~9999 mins / 1min |
| Motor | brushless type |
| Operating Temperature | Ambient – 40℃ |
| Additional platform | Yes |
| Platform material | Painted aluminum or 304 stainless steel (an option) |
| Unit dimension | W260 x L310 x H130 mm |
| Maximum Load | 10 kg |
| Construction | Painted iron metal |
| Net Weight | 8kg (17.6lb) |
| Rated voltages | 110/220V selectable |
| Plate dimensions | 30 x 30 cm |
| Controls | Digital |
