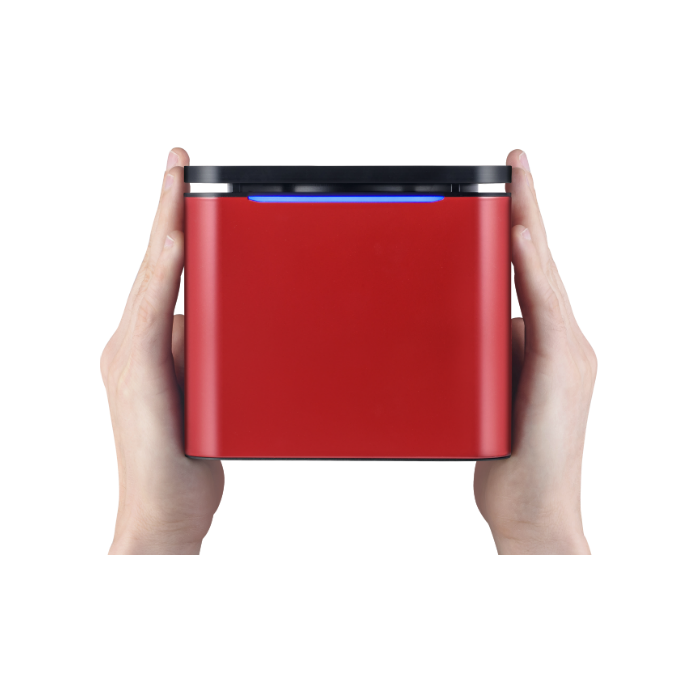

MIC qPCR 4Plex with HRM
MIC qPCR 4Plex with HRM
The World's First Magnetic Induction Cycler
Developed by Bio Molecular Systems — creators of the Rotor-Gene. Patented magnetic induction technology with fixed optical path, no moving parts, and zero calibration required.
Why Choose MIC?
Speed
Patented magnetic induction heating + fan-forced air cooling delivers 35 cycles in under 25 minutes. Simultaneous multi-channel acquisition means no more waiting for sequential reads.
Accuracy
Unrivaled reproducibility with spinning aluminum rotor technology. ±0.05°C well-to-well uniformity, ±0.25°C accuracy. Detect Class IV SNPs requiring <0.1°C melt resolution.
Size
150 × 150 × 130 mm footprint—smaller than a lab book. Weighs only 2.1 kg. No heated lid or external centrifuge needed thanks to pre-loaded oil overlay and high-speed centrifugation.
Connectivity
Control up to 10 instruments from one workstation via Bluetooth or USB. Projects software seamlessly combines data across multiple runs and machines—as if from a single cycler.
Technical Specifications
| Performance Characteristics | |
|---|---|
| Multiplexing Capability | 4 Channels (Green, Yellow, Orange, Red) |
| HRM Capability | Yes — Capable of detecting Class IV SNPs (<0.1°C resolution) |
| Temperature Uniformity | ±0.05°C (dynamic and static) |
| Temperature Accuracy | ±0.25°C |
| Max Heating/Cooling Rate | 4.0°C/sec heating, 3.0°C/sec cooling |
| Temperature Range | 40°C to 99°C |
| Capacity | 48 wells (0.1mL strips of 4) |
| Sample Volume | 10 – 25 µL |
| Optical System | Independent high-intensity LED + photodiode per channel |
| Dimensions (W×D×H) | 150 × 150 × 130 mm (closed lid) / 265 mm (open lid) |
| Weight | 2.1 kg |
| Power | 100-240 VAC, 50/60Hz, 4.0A |
| Data Collection | USB or Bluetooth |
| Warranty | 3 Years Parts and Labor |
Compatible Consumables & Reagents
Complete your workflow with MBI certified supplies:
