MBI Peristaltic Pump - MBIMU-D01 Peristaltic Pump
MBI Lab Equipment - MBIMU-01 Peristaltic Pump

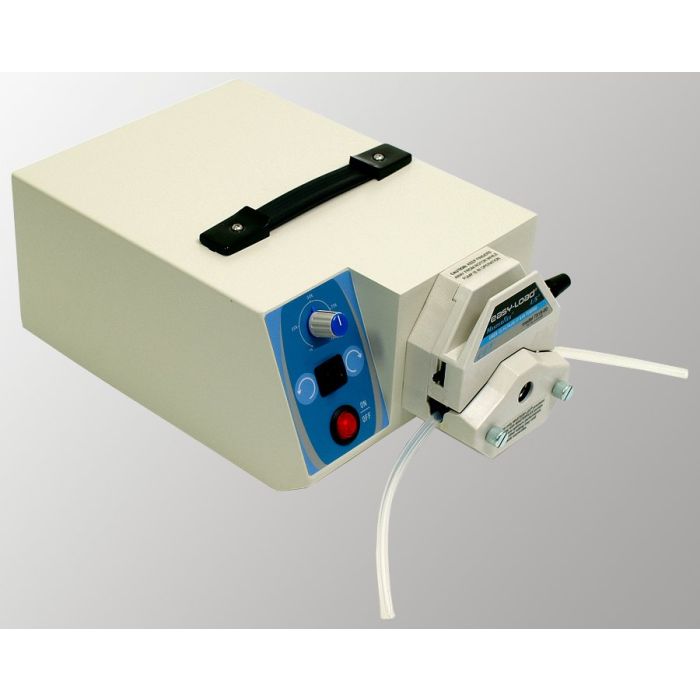

MBIMU-D01 is designed for the most application requirements. The applications include filtration, circulation, sampling, chemical spraying, dispensing transferring, feeding and filling. It is equipped with a popular easy-to-use peristaltic pump, which accepts several different silicon tubing sizes for a wide range of flow rate. The design of reversible flow control delivers better convenience and flexibility to the user.
MBIMU-D02, in comparison to MBIMU-D01, is equipped with a more powerful motor in the same sized housing of MBIMU-D01 to deliver a fast flow rate range. Basically, its most popular applications, similar to MBIMU-D01, include filtration, circulation, sampling, chemical spraying, dispensing transferring, feeding, filling and metering pump It is equipped with a popular easy-to-use peristaltic pump, which accepts several different silicon tubing sizes for a wide range of flow rate. The design of reversible flow control delivers better convenience and flexibility to the user.
Features
- Compact size
- Precise control
- Easy load pump header
- Wide applications
- Reversible for purging
Technical Specifications
| Model | MBIMU-D01 | MBIMU-D02 |
| Controller | Digital Microprocessor Controller | |
| Motor | Brushless Motor | |
| Power | 50 W | 100 W |
| Pump Speed/Inc | 20 - 300 rpm/ 1rpm | 5 - 600 rpm/ 1rpm |
| Variable Flow Rate | 1.2 - 1,140 ml/min | 0.3 - 2,280 ml/min |
| Number of rollers | 3 | 3 |
| Operating Temperature | Ambient to 40 °C | |
| Unit Dimension (W x L x H) | 7.87” x 13.39” x 5.12” (200 x 340 x 130 mm) | 13.39” x 9.45” x 6.69” (340 x 240 x 170 mm) |
| Construction | Painted Iron metal | |
| Weight | Approx. 12.54 lb (5.7 kg) | |
| Rated Voltage | 110 V or 220 V | 100 V ~ 240 V |
| Rpm / Increments | 0.1-100.0 / 0.1 |
|---|---|
| Motor | brushless type |
| Speed Control | +/-1% |
| Operating Temperature | Ambient – 40℃ |
| Rated voltages | 110/220V selectable |
| Net Weight | 5.6 lb/2.5 kg |
