Circulation thermostat PT31 (Temp. Range: 8-35 °C)
Catalog Number:
PT31
Availability:
In stock

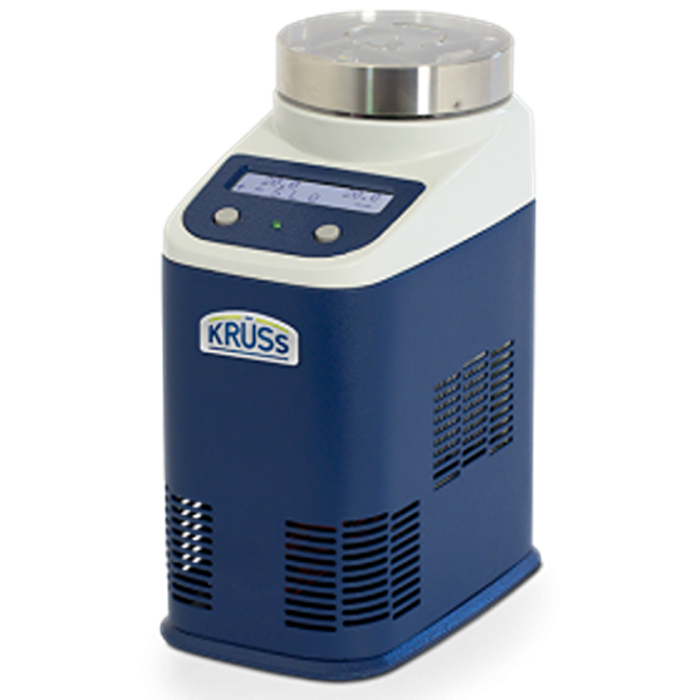

Circulation Thermostat PT31
High-performance Peltier circulation thermostat. Lightweight at only 1.5 kg, delivering process-reliable temperature control from 8 °C to 35 °C with ±0.2 °C accuracy.
Temp. Range: 8 – 35 °C | Accuracy: ±0.2 °C | Weight: 1.5 kg
Overview
The PT31 circulation thermostat is equipped with high-performance functions. The 1.5 kg lightweight device is ideally suited for applications requiring a temperature range at a constant level. The proven Peltier technology offers process-reliable temperature control in the range from 8 °C to 35 °C. The accuracy of temperature control is ±0.2 °C.
The robust locking mechanism of the PT31 provides a sturdy connection and ensures constant temperature control of the medium. The compact and sturdy design does not require much space and can be placed anywhere in the laboratory.
Your Benefits
Temperature control using Peltier technology
Temperature range from 8 °C to 35 °C
Temperature accuracy of ±0.2 °C
Space-saving, sturdy design
Suitable for operation with non-flammable liquids (water or water/glycol mixture)
Bright, easy-to-read LCD matrix display
Sophisticated, easily accessible operating elements
Simple and plainly structured functions
Model Specifications
| Specification | PT31 |
|---|---|
| Temperature control range | 8 – 35 °C* |
| Accuracy of temperature control | ± 0.2 °C |
| Temperature control resolution | 0.1 °C |
| Ambient temperature range | 5 °C – 40 °C |
| Heating capacity | 30 W |
| Cooling capacity at 20 °C | 20 W |
| Pump pressure | 20 mbar |
| Pump capacity | 20 l/h |
| Filling volume | ca. 100 ml |
| IP code | IP21 |
| Class of protection (DIN EN 61140) | III |
| Classification (DIN 12876-1) | I; non-flammable liquids |
| Electrical data | 100-240 VAC | 1.3 A | 50/60 Hz |
| Device dimensions (W x H x D) | 108 mm x 199 mm x 145 mm |
| Device weight | 1.5 kg (without mains adapter and mains cable) |
| LCD Matrix Display | |
| Display type | LCD matrix display |
| Display resolution | 2 rows of 16 columns each |
| Display dimensions (W x H) | 57.7 mm x 11.8 mm |
| Control | Selection keys |
Typical Applications
Temperature control of small sample volumes in analytical laboratories, chemical laboratories, life science
Temperature control of refractometers, polarimeters and viscometers
Temperature control of cell changers in UV / VIS device
Applications in the laboratory that require a variable and space-saving placement of the thermostat
| TEMPERATURE CONTROL RANGE | 8–35 °C |
|---|---|
| ACCURACY OF TEMPERATURE CONTROL | ± 0.2 °C |
| TEMPERATURE CONTROL RESOLUTION | 0.1 °C |
| Ambient temperature | +5°C to +40°C |
| HEATING CAPACITY | 30 W |
| COOLING CAPACITY AT 20 °C | 20 W |
| PUMP PRESSURE | 20 mbar |
| PUMP CAPACITY | 20 l/h |
| FILLING VOLUME | ca. 100 ml |
