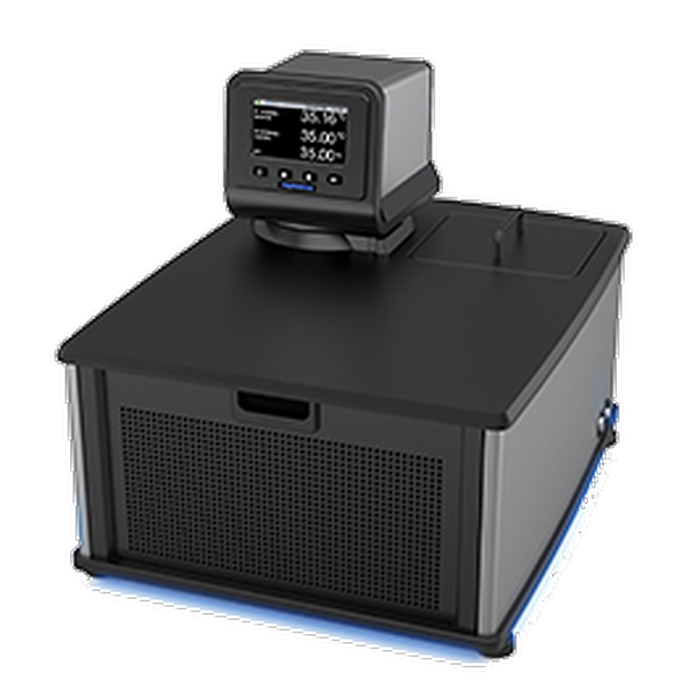

Low Profile Refrigerated Circulator (7L / Advanced Programmable / -20C=> 200C)
Low Profile Refrigerated Circulator 7L
Advanced Programmable Controller with 7L reservoir. ±0.005°C stability from -20°C to 200°C with OpenMode time/temperature programming. DIN 12876-1 Class III rated for flammable liquids.
Key Specifications
Design & Build
LidDock™
Self-stowing reservoir cover for convenience and safety.
DuraTop™
Insulating, chemical-resistant top deck for long-term durability.
WhisperCool®
Environmental Control System for quiet, efficient operation.
Cool Command™
Modulated refrigeration system for precise cooling performance.
Reservoir Drain
Easy fluid drainage for maintenance and fluid changes.
Washable Air Filter
Reusable filter to keep the unit clean and running efficiently.
Key Features
OpenMode Time/Temperature Programming
Unrestricted number of programs or steps for complex temperature protocols.
Intuitive 4.3" SmartTouch Display
Touchscreen interface with on-screen prompts and help for easy operation.
Swivel 180™ Rotating Controller
Adjustable controller position for flexible viewing angles.
Event Scheduling & Real-Time Clock
Schedule events by time and date with built-in real-time clock functionality.
10-Day Temperature Trend Review
Review and analyze temperature trends for up to 10 days of operation.
Multiple Selectable Home Screens
Customize your display with multiple home screen layouts.
On-Board Connectivity
USB-A & B, Ethernet, RS-232/RS-485, remote on/off and external temperature probe.
10-Point Calibration
10-point temperature calibration capability for maximum accuracy.
Enhanced Performance Package
Includes Pt100 probe, USB flash drive, stainless steel fittings, LabVIEW VI, and iPhone app.
Technical Specifications
| Specification | Value |
|---|---|
| Reservoir Capacity | 7 L |
| Temperature Range | -20°C to 200°C |
| Temperature Stability | ±0.005°C |
| Temperature Calibration Capability | 10-point |
| Cooling Capacity @ -20°C | 30 W |
| Cooling Capacity @ 0°C | 120 W |
| Cooling Capacity @ +20°C | 200 W |
| Cooling Capacity @ +100°C | 200 W |
| Swivel 180 Rotating Controller | Yes |
| Fluid Optimization / Specific Heat Tuning | Automatic and/or user-adjustable |
| Pump Type | Pressure / Suction |
| Pump Speed | Variable |
| Maximum Pressure | 4.3 psi |
| Pump Max. Pressure, Max. Flow Rate | 5.30 GPM |
| Pump Max. Suction Flow Rate | 3.9 GPM |
| Working Access (L x W x D) | 15.7 x 14.2 x 12.7 cm |
| Connectivity | Ethernet, USB A & B, RS232 / addressable RS485, Remote On/Off, External Temperature Probe |
| Display | 4.3" SmartTouch Touchscreen |
| Languages Supported | 11: French, German, Spanish, Chinese, Portuguese, Russian, Hindi, Arabic, Italian, Korean, English |
| Overall Dimensions (W x D x H) | 54.1 x 22.1 x 61.7 cm |
| Reservoir Capacity | 7 L |
|---|---|
| Temperature Range | -20 to 200ºC |
| Temperature Stability | ±0.005° |
| Temperature Calibration Capability | 10-point |
| Cooling Capacity @ -20°C (W) | 30 |
| Cooling Capacity @ 0°C (W) | 120 |
| Cooling Capacity @ +20°C (W) | 200 |
| Cooling Capacity @ +100°C (W) | 200 |
| Swivel 180 Rotating Controller | Yes |
| Fluid Optimization/Specific Heat Tuning | Automatic and/or user-adjustable |
| Pump Type | Pressure/Suction |
| Pump Speed | Variable |
| Maximum Pressure (psi) | 4.3 |
| Pump Max. pressure, max. flow rate | 5.30 (GPM) |
| Pump Max. suction flow rate | 3.9(GPM) |
| Working Access (L x W x D) (cm) | 15.7 x 14.2 x 12.7 cm |
| Connectivity | Ethernet, USB A & B, RS232/addressable RS485, Remote On/Off, External Temperature Probe |
| Display | 4.3" SmartTouch Touchscreen |
| Languages Supported | 11: French, German, Spanish, Chinese, Portuguese, Russian, Hindi, Arabic, Italian, Korean, English |
