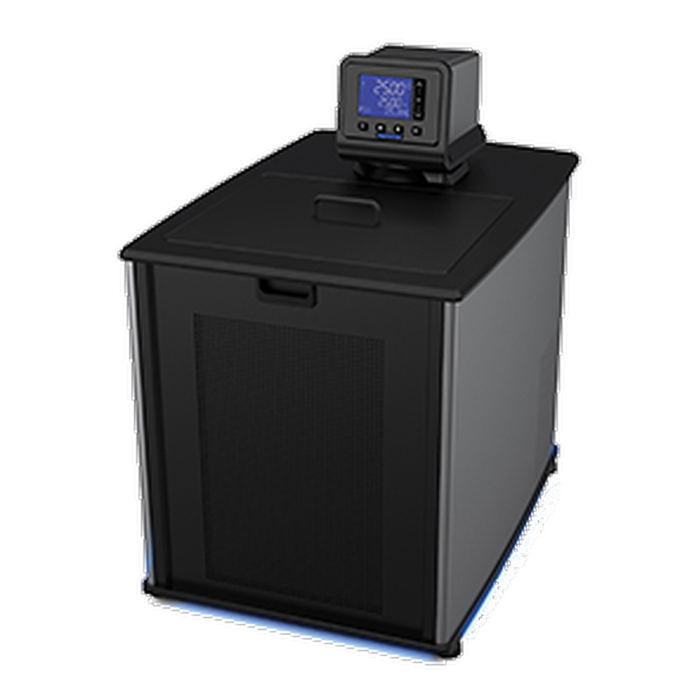

Refrigerated Circulator (28L / Advanced Digital Controller / -30C=> 200C)
Refrigerated Circulator (28L / Advanced Digital Controller / -30C=> 200C)
Key Specifications
Working Temperature: From -30° up to +200°C
Temperature Stability: ±0.01°C
Safety Rating: DIN 12876-1 Class III (for use with flammable liquids)
External Temperature Control Capability: Yes
Pump: Variable-speed
External Circulation: Open- or closed-loop
- LidDock™ self-stowing reservoir cover
- DuraTop™ insulating, chemical-resistant top deck
- WhisperCool® Environmental Control System
- Cool Command™ modulated refrigeration system
- Reservoir drain
- Washable air filter
Key Features
- Intuitive 3.75” (9.5 cm) display with touch-pad control
- 4 languages: French, German, Spanish, English
- Swivel 180™ Rotating Controller
- On-board connectivity: USB-A & B, Ethernet, RS-232/RS-485, and external temperature probe
- On-screen prompts
- Automatic performance optimization and specific heat tuning
- Single-point calibration capability
More Information
Reservoir Capacity |
20 L |
Temperature Range |
-30ºC to 200ºC |
Temperature Stability |
± 0.01ºC |
Temperature Calibration Capability |
1-point |
Cooling Capacity @ -20°C (W) |
165 |
Cooling Capacity @ 0°C (W) |
505 |
Cooling Capacity @ +20°C (W) |
915 |
Cooling Capacity @ +100°C (W) |
915 |
Swivel 180 Rotating Controller |
Yes |
Fluid Optimization/Specific Heat Tuning |
Automatic and/or user-adjustable |
Pump Type |
Pressure/Suction |
Pump Speed |
Variable |
Maximum Pressure (psi) |
4.3 |
Pump Max. pressure, max. flow rate |
5.30 (GPM) |
Pump Max. suction flow rate |
3.9(GPM) |
Working Access (L x W x D) (cm) |
31.4 x 35.9 x 14 cm |
Connectivity |
Ethernet, USB A & B, RS232/addressable RS485, Remote On/Off, External Temperature Probe |
Display |
4.3" SmartTouch Touchscreen |
Languages Supported |
11: French, German, Spanish, Chinese, Portuguese, Russian, Hindi, Arabic, Italian, Korean, English |
Overall Dimensions |
67.2 x 45.7 x 68.3 cm |
