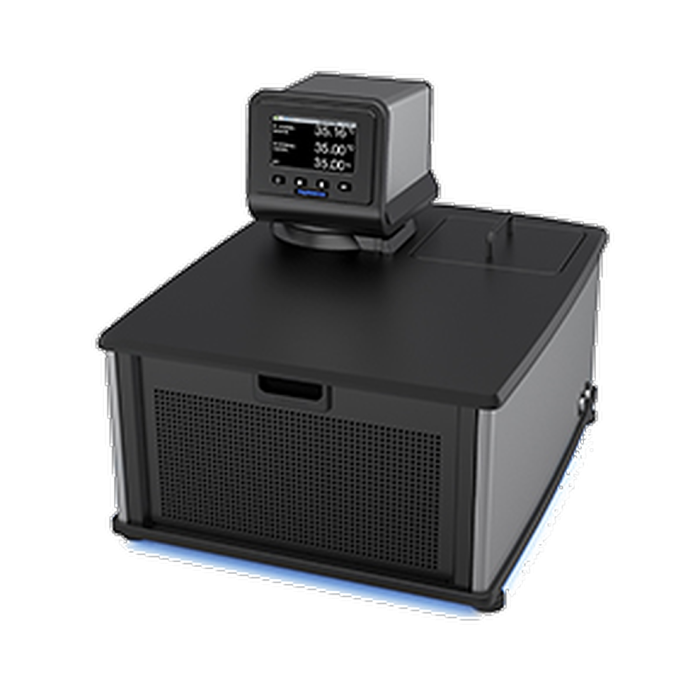

Low Profile Refrigerated Circulator (7L / Standard Digital Controller / -20° to 170° C)
Catalog Number:
SD7LR-20
Availability:
In stock
Low Profile Refrigerated Circulator (7L / Standard Digital Controller / -20° to 170° C)
Key Specifications
Working Temperature: From -20° up to +170°C
Temperature Stability: ±0.04°C
Safety Rating: DIN 12876-1 Class I (for use with non-flammable liquids)
Pump: 2-speed
External Circulation: Closed-loop
- LidDock™ self-stowing reservoir cover
- DuraTop™ insulating, chemical-resistant top deck
- WhisperCool® Environmental Control System
- Cool Command™ modulated refrigeration system
- Reservoir drain
- Washable air filter
Key Features
- Large, universal icon and English display
- Swivel 180™ Rotating Controller
- On-board connectivity: RS-232 serial output
- On-screen prompts
- Automatic performance optimization
- Single-point calibration capability
| Reservoir Capacity | 7 L |
|---|---|
| Temperature Range | -20ºC to 170°C |
| Temperature Stability | ±0.04°C |
| Temperature Calibration Capability | 1-point |
| Swivel 180 Rotating Controller | Yes |
| Fluid Optimization/Specific Heat Tuning | Automatic |
| Pump Type | Pressure |
| Pump Max. pressure, max. flow rate | 2.90 (GPM) |
| Bath opening/depth (WxL/D) | 15.7 x 14.2 x 12.7 cm |
| Connectivity | RS232 |
| Display | 3.75" Touch-Pad LCD |
