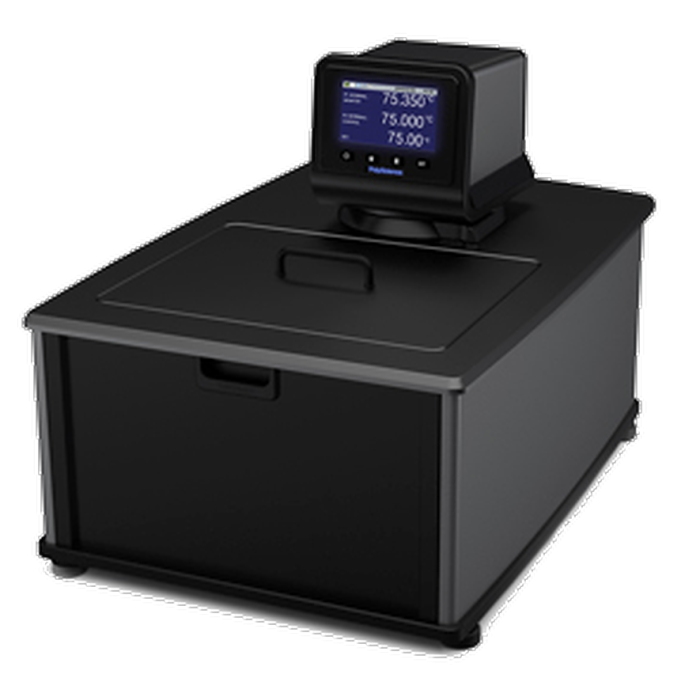

Heated Circulating Bath 20L (Advanced Programmable) (+10° to 200° C)
AP20H200
Programmable heated bath circulator with 20L reservoir. Microprocessor PID control from Ambient +10°C to 200°C with ±0.005°C stability. Variable-speed pump for internal and external circulation.
Key Specifications
Design & Build
LidDock™
Self-stowing reservoir cover for convenience and safety.
DuraTop™
Insulating, chemical-resistant top deck for long-term durability.
Integral Cooling Coil
Built-in tap water cooling coil for extended temperature control near ambient.
Reservoir Drain
Easy fluid drainage for maintenance and fluid changes.
Key Features
OpenMode Time/Temperature Programming
Unrestricted number of programs or steps for complex temperature protocols.
Intuitive 4.3" SmartTouch Display
Touchscreen interface with on-screen prompts and help for easy operation.
Swivel 180™ Rotating Controller
Adjustable controller position for flexible viewing angles.
Event Scheduling & Real-Time Clock
Schedule events by time and date with built-in real-time clock functionality.
10-Day Temperature Trend Review
Review and analyze temperature trends for up to 10 days of operation.
Multiple Selectable Home Screens
Customize your display with multiple home screen layouts.
On-Board Connectivity
USB-A & B, Ethernet, RS-232/RS-485, remote on/off and external temperature probe.
10-Point Calibration
10-point temperature calibration capability for maximum accuracy.
Enhanced Performance Package
Includes Pt100 probe, USB flash drive, stainless steel fittings, LabVIEW VI, and iPhone app.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | AP20H200 |
| Reservoir Capacity | 20 L |
| Temperature Range | Ambient +10°C to 200°C |
| Temperature Stability | ±0.005°C |
| Temperature Calibration Capability | 10-point |
| Swivel 180 Rotating Controller | Yes |
| Fluid Optimization / Specific Heat Tuning | Automatic and/or user-adjustable |
| Pump Type | Pressure / Suction |
| Pump Speed | Variable |
| Maximum Pressure | 4.3 psi |
| Pump Max. Pressure, Max. Flow Rate | 5.30 GPM |
| Pump Max. Suction Flow Rate | 14.7 L/min |
| Display | 4.3" SmartTouch Touchscreen |
| Languages Supported | 11: French, German, Spanish, Chinese, Portuguese, Russian, Hindi, Arabic, Italian, Korean, English |
| Connectivity | Ethernet, USB A & B, RS232 / addressable RS485, Remote On/Off, External Temperature Probe |
| Working Access (L x W x D) | 25 x 31.6 x 14 cm |
| Overall Dimensions (W x L x H) | 61 x 41.9 x 68.3 cm |
| Reservoir Capacity | 20 L |
|---|---|
| Temperature Range | Ambient +10°C to 200°C |
| Temperature Stability | ±0.005° |
| Temperature Calibration Capability | 10-point |
| Pump Type | Pressure/Suction |
| Fluid Optimization/Specific Heat Tuning | Automatic and/or user-adjustable |
| Swivel 180 Rotating Controller | yes |
| Pump Max. pressure, max. flow rate | 5.30 (GPM) |
| Pump Max. suction flow rate | 14.7 (l/min) |
| Display | 4.3" SmartTouch Touchscreen |
| Connectivity | Ethernet, USB A & B, RS232/addressable RS485, External Temperature Probe |
| Languages Supported | 11: French, German, Spanish, Chinese, Portuguese, Russian, Hindi, Arabic, Italian, Korean, Englis |
| Dimensions | 25 x 31.6 x 14 cm |
