SCO10A Air Jacketed CO2 Incubators (284L)
Overview

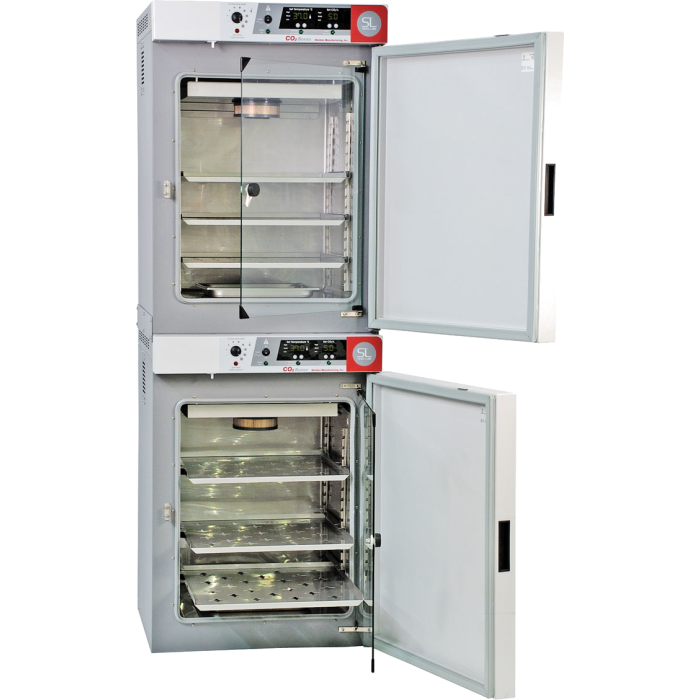

The SCO10A SHEL LAB Air Jacketed CO₂ Incubator is a stacked dual-chamber version of the SCO5A, offering 10.0 Cu.Ft. (284 L) total capacity in a space-saving vertical design. It is ideal for high-throughput tissue and cell culture applications where contamination control and temperature uniformity are critical.
Each chamber features the same advanced air jacket technology, IR CO₂ sensor, and copper-caged HEPA filtration as the SCO5A. The stacked configuration doubles incubation capacity without increasing floor footprint — perfect for labs with limited bench space.
Independent control of each chamber allows simultaneous cultivation of different cell lines under different conditions. Data logging, heated doors, and autoclavable shelving are standard on both levels.
Key Advantages
- Dual-chamber stack: 284 L total capacity
- Same footprint as single SCO5A
- IR CO₂ sensor per chamber: recovery < 5 min
- ±0.25°C uniformity at 37°C per chamber
- Humidity up to 95% via evaporation
- Independent chamber control
- 5-year warranty / 7-year IR sensor
Features
Applications
Technical Specifications
| SKU | SCO10A |
| Chamber Capacity | 10.0 Cu.Ft. (284 L) — 2 × 142 L chambers |
| Temperature Range | Ambient +8°C to 60°C |
| Temperature Uniformity | ±0.25°C at 37°C |
| CO₂ Range | 0–20% |
| CO₂ Sensor | Infrared (IR) per chamber |
| CO₂ Recovery Rate | < 5 minutes to 5% |
| Relative Humidity | Up to 95% |
| Jacket Type | Air |
| Shelving | 3 supplied per chamber (16 max per chamber) |
| Access Port | 1.5 inches per chamber |
| Inner Glass Viewing Door | Yes per chamber (split door optional) |
| CO₂ Alarm | Yes |
| Overtemperature Alarm | Yes |
| Data Logging | Yes |
| Exterior Dimensions (W×D×H) | 27.5 × 28.5 × 75.6 in (699 × 724 × 1921 mm) |
| Interior Dimensions (W×D×H) | 20.5 × 19.7 × 21.5 in (521 × 503 × 546 mm) per chamber |
| Weight | 400 lbs (181 kg) |
| Power | 110–120 VAC, 50/60 Hz, 6.0 A |
| Max. Energy Consumption | 720 W |
| Safety Certifications | UL 61010-1, EN 61010-1, CSA 61010-1, CE |
| Warranty | 5 years parts & labor (USA); 7 years IR sensor |
| Chamber capacity | 85 L |
|---|---|
| Access Port | 1.75" |
| Shelves | 6 standard, 16 total |
| Humidity | 0 - 95% |
| CO2 Recovery Rate to 5% | under 5 minutes |
| CO2 Range % | 0-20% |
| CO2 Alarm | Yes |
| Temperature range (°C) | Amb.+8ºC to 60ºC |
| Temperature Uniformity | ± 0.25 °C |
| Temperature Alarm | Yes |
| Exterior Dimensions | 27.5 × 28.5 × 75.6 (699 mm × 724 mm × 1921 mm) |
| Chamber Dimensions | 20.5 × 19.8 × 21.5 (521 mm × 503 mm × 546 mm) |
