SCO5W water jacketed CO2 incubator, 5.1 Cu.Ft. (144L)
Catalog Number:
SCO5W
Availability:
In stock

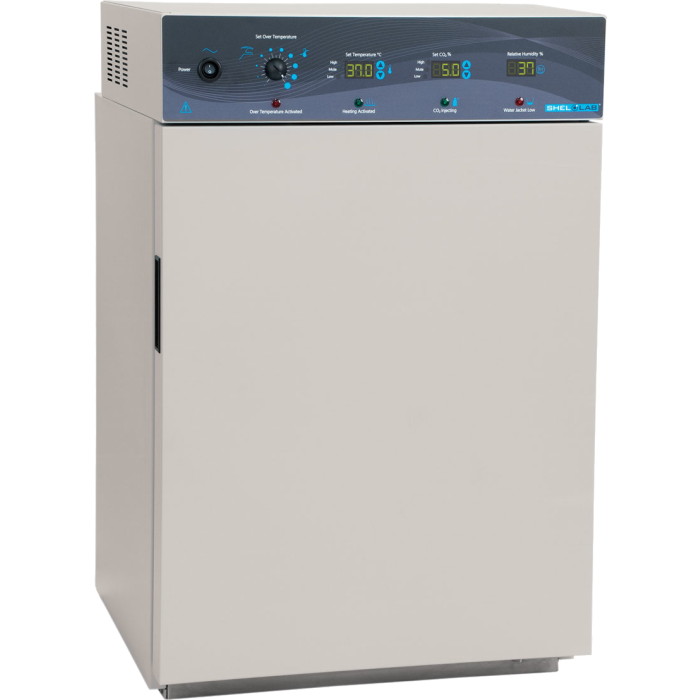

SCO5W water jacketed CO2 incubator
Model SCO5W water jacketed CO2 incubator and is an ideal unit for cell culture applications. It provides a precisely controlled, accurate, pure environment throughout the culturing process. SHEL LAB CO2 incubators are designed to provide the uniform temperatures and highly stable CO2 environments that are necessary to prevent shocks to cells. Also available in a benchtop 1.5 cu.ft./42 L size (Model SCO2W), and SCO5W units can be stacked with the use of a stacking rack (PN 9751223)
Standard Design Features:
- Infrared (IR) CO2_Sensor is extremely quick to recover CO2 levels after door openings and ensures superior pH stability
- Unique water jacket design provides excellent temperature uniformity of +/-0.2°C at 37°C
- Humidity levels, maintained through evaporation, of up to 95%
- Temperature-compensated humidity sensor with digital display
- Data logging capabilities
- Designed to minimize contamination; includes:
- Patented copper-caged HEPA filter
- Heated door to ensure superior temperature uniformity and also reduce the potential for condensation to form on the inner glass door
- Durable stainless steel chamber with coved corners for easy cleaning
- Exclusive heated copper CO2 inlet not only promotes temperature uniformity but also prevents moisture from being introduced into the chamber
- Copper shelving option
- Autoclavable shelving system
- Industry-best warranty – 5 years parts and labor in the USA, 7 years on the IR sensor
| Access Port | 1.5” | |
| Shelving | 6 Supplied (16 Maximum Per Chamber) | |
| Relative Humidity Range | up to 95% | |
| Jacket Type | Water | |
| CO2 Recovery Rate | < 5 minutes | |
| CO2 Sensor | IR | |
| CO2 Range | 0-20% | |
| Electrical Specifications | Volts: 115V/230V; Hertz: 50/60; Watts: 550; Amps: 5 | |
| Temperature Uniformity | +/-0.2°C at 37°C | |
| Temperature Range | Ambient +8°C to 60°C | |
| Exterior Dimensions WxDxH in. (cm) | 26 x 25.5 x 80.6 (66.1 x 64.8 x 204.6) | |
| Interior Dimensions WxDxH in. (cm) | 19.2 x 19.7 x 23 (48.9 x 50.1 x 58.4) per chamber | |
| Capacity | 10 Cu.Ft. (286 L) | |
| Communications | USB | |
| Chamber capacity | 144 L |
|---|---|
| Access Port | 1" |
| Shelves | 3 standard, 16 total |
| Humidity | 0 - 95% |
| CO2 Recovery Rate to 5% | under 5 minutes |
| CO2 Range % | 0-20% |
| CO2 Alarm | Yes |
| Temperature range (°C) | Amb.+5ºC to 60ºC |
| Temperature Uniformity | ± 0.2°C |
| Temperature Alarm | Yes |
| Exterior Dimensions | 26 × 25.5 × 40.3 (661 mm × 648 mm × 1024 mm) |
| Chamber Dimensions | 19.3 × 19.8 × 23 (490 mm × 503 mm × 584 m |
