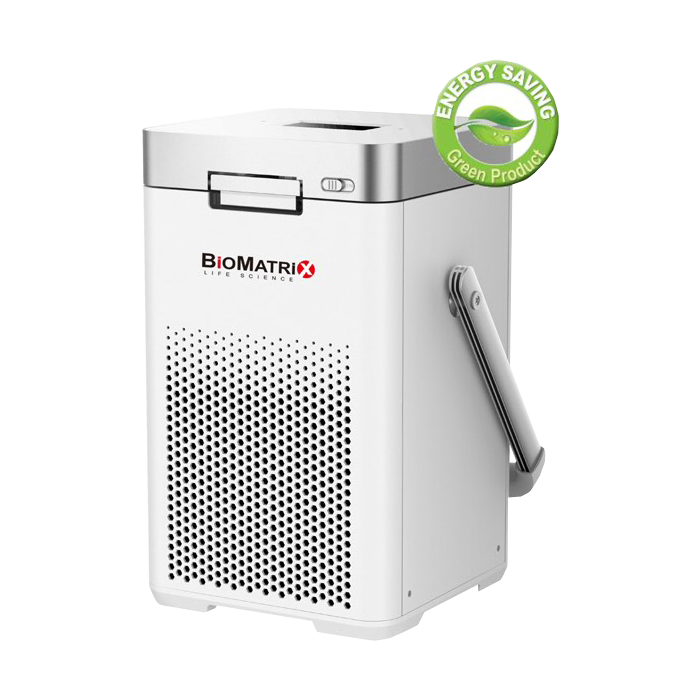

Mini Borée portable -80C, 1L , 110V - 240V/60Hz or 12-24V DC from mobile source
Features of the freezer
The -86℃ ULT Portable Freezer is designed to provide ultra-low temperature for storage and transportation for the product need ultra low temperature such as biological samples, cells, drugs, vaccine and clinical trail products intended for medical and research purposes.
- FPSC and Refrigeration
The -86℃ ULT Portable Freezer uses Free Piston Stirling cooler as the refrigeration core. Working in full temperature zone, low power consumption, low noise, complete 360 degree omnidirectional defense shake. Freezer have built-in heating system used for defrosting and also for keeping the hot temperature of cabinet when ever needed.
- Power and Temperature Control
Freezer is equipped with built-in battery providing the backup power to freezer for one hour to give stable temperature all the time. The control board with AI algorithm programming control the FPSC power to maintain the temperature of freezer, temperature sensors (PT100) measures the internal freezer temperature and machine cold head temperature and provides input to the controller. The UI provides the display and control for setting the desired temperature for freezer.
- Power Adapter and Cord
A simple line cord change can allow for multiple power and receptacle types. Make sure to use the cord and plug appropriate for your location. Power Adapter operation range is:
- Voltage input 100VAC-240VAC (Standard three-pin plug)
- Frequency 50Hz or 60Hz
- Output DC 24V / 5A (max:)
- Thermal Insulation
For the protection of transported and stored products from the outside temperature, the freezer is designed with dual thermal insulation for the better results, the -86℃ ULT Portable Freezer has high performance vacuum insulated panels VIP and polyurethane foam insulation.
Specifications
Electric Power |
110V - 240V (±10%) at either 50 or 60 Hz or 12-24V DC from mobile source |
Maximum Power |
100 watts (1 amps @120VAC, 0.5 amps @220VAC, 8 amps@ 12VDC, 4 amps@ 24VDC |
Operating Frequency |
80Hz |
Cooling Engine |
free-piston Stirling engine |
Temperature Range |
-86ºC to 4ºC @ 32ºC (90ºF) ambient, ± 3°C at -86ºC top to bottom, adjustable in 1°C increments |
Environmental Conditions
|
Non-corrosive, non-flammable, non-explosive Indoor use Altitude up to 2,000m Temperature -20ºC to 45ºC Maximum relative humidity 80% for temperature up to 31°C decreasing linearly to 50% at 40°C |
Internal Volume |
1L |
External Dimensions |
270x311x450 mm (L x W x D) |
Internal Dimensions |
150x134x54.5 mm (L x W x D) |
Net Weight |
13.5kg |
Insulation |
High performance vacuum insulated panels VIP and polyurethane foam |
Noise |
Low noise, <55 dB(A) at 1 meter |
Temperature Sensor |
RTD (PT100 Class A) and 18B20 sensors ( packed with Stainless Steel ) |
Cooling method |
Direct contact heat transfer |
Cooling Performance |
-86°C@Ambient 25°C (After 2.5 hours) 23W heat lift @ -80°C cold heat temperature |
Battery Back-up |
1 hour Battery Back-up for whole unit |
Lock System |
Dual lock system (NFC digital lock and manual lock) |
