HE-PLUS Horizontal Nucleic Acid Electrophoresis System
Catalog Number:
HE-PLUS
Availability:
In stock
$995.00

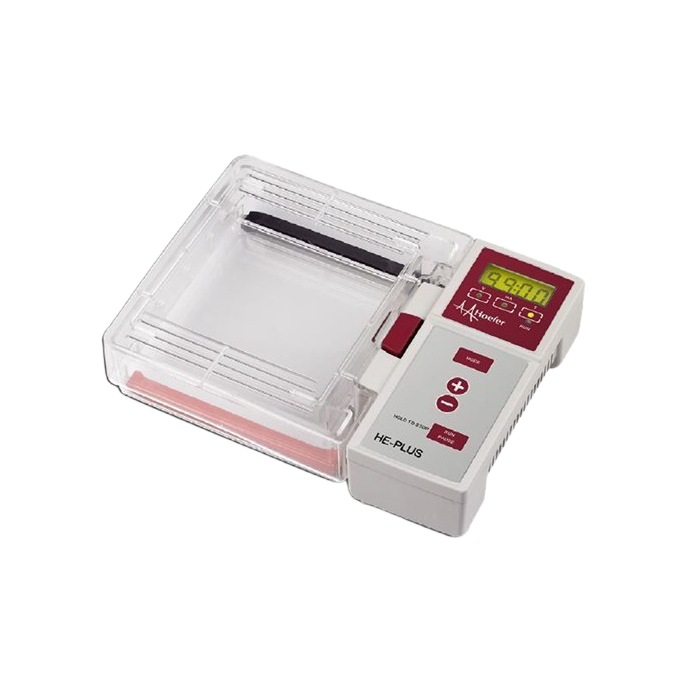

HE-PLUS Horizontal Nucleic Acid Electrophoresis System
The HE-PLUS is a compact easy-to-use horizontal electrophoresis system for the separation of nucleic acids. It has a built-in variable power supply. An LED display enables easy viewing of the voltage, amperage, and time. Also featured is a 99:59-minute timer with an audible end of run alert.
The HE-PLUS offers a high throughput 96-well format with multichannel pipette compatible combs for the direct loading of samples in a small footprint. The horizontal tank is made of rugged polycarbonate and has a vented lid to reduce condensation so the run can be visually monitored.
Features:
- Compact and Easy to Use
- Built-in Variable Power Supply with LED Display
- Adjustable Power Supply from10 to 400 mA or 10 to 150 Volts
- Built-in Timer with Audible Alert
Includes:
- Gel tank
- Safety lid
- Power supply
- Large gel tray
- Medium gel trays, 2 pieces
- Large/medium comb 14/28 wells, 4 pieces
- Casting stand
SPECIFICATIONS
| Unit Dimensions (W x L x H) |
24.5 x 17.0 x 6.2 cm |
| Gel Dimensions (W x L) | 12.5 x 13.0 cm |
| Maximum Sample Capacity | 112 samples (4 combs, 28 samples each) |
| Buffer Capacity | 350 ml |
| Distance Between Electrodes | 13.5 cm |
| Electrophoresis Tank | |
| Overall Dimensions (W x L x H) |
18.3 x 16.4 x 5.6 cm |
| Material Characteristic | UV transmitting (50% at 254 nm, 80% at 312 nm) |
| Solution Volume | 350 ml |
| Power Supply | |
| Overall Dimensions (W x L x H) |
7.5 cm x 17.0 x 6.2 cm |
| Weight | 410 g |
| Input Voltage | AC 100 to 240 V, 50/60 Hz |
| Output Voltage | 10 to 150 volts; constant peak voltage of 150 V |
| Output Amperage | 10 to 400 mA |
| Maximum Wattage | 45 W |
| Timer | 99 hours 59 min, or continuous run |
| Safety Switch | A microsensor in the power supply prevents output without the safety lid in place |
| Memory Function | Automatic memory (the last used Voltage & Time) |
| Plate dimensions | 12.5 x 13.0 cm |
|---|---|
| Dimensions | 24.5 x 17.0 x 6.2 cm |
| Buffer Volume | 350 mL |
