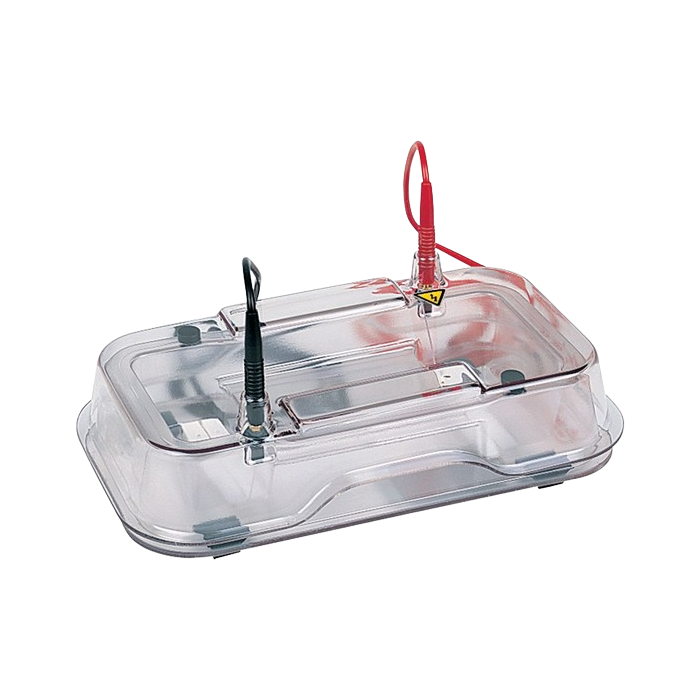

HE33 Mini Horizontal Agarose Electrophoresis Unit
Catalog Number:
HE33B
Availability:
In stock
$665.00
HE33 Mini Horizontal Agarose Electrophoresis Unit
The HE33 Mini Horizontal Agarose Unit is designed for very fast separations of DNA restriction fragments in agarose gels.
Features and Benefits
- Fast separations—run a 7 x 10 cm gel in as little as 5 minutes
- UV transparent running tray—allows the user to image the gel without risk of damage due to handling
- Variety of comb sizes—enables customization of sample throughput to fit your laboratory'srequirements
- Adjustable comb height—completec ontrol over well depth
Complete Unit Includes:
- Buffer Chamber Assembly
- Safety Lid with High Voltage Leads
- Running Tray
- Casting Tray
- Foam Gaskets, 4 pcs
- Bubble Level
- 1.5 mm thick, 8-well comb
- Comb Back
Basic Unit Includes:
The same as above without the comb and comb back. Order separately.
SPECIFICATIONS
| Gel Dimensions (W x L) | 7 x 10 cm |
| Maximum Buffer Volume | 250 ml |
| Maximum Power Settings | 500 V for (5 min or less), 500 mA, 15 W |
| Maximum Sample Capacity | 32 |
| Maximum Temperature | 50°C |
| Indoor Use | 4 to 40°C |
| Humidity | Up to 80% |
| Unit Dimensions (L x H x W) | 24 x 7 x 13 cm |
| Plate dimensions | 7 x 10 cm |
|---|---|
| Dimensions | 24 x 7 x 13 cm |
| Buffer Volume | 250 mL |
