Multi Sub Maxi, 20x20cm UVTray, 2x20 sample 1mm thick comb
Catalog Number:
MSMAXI20
Availability:
In stock
$1,213.15

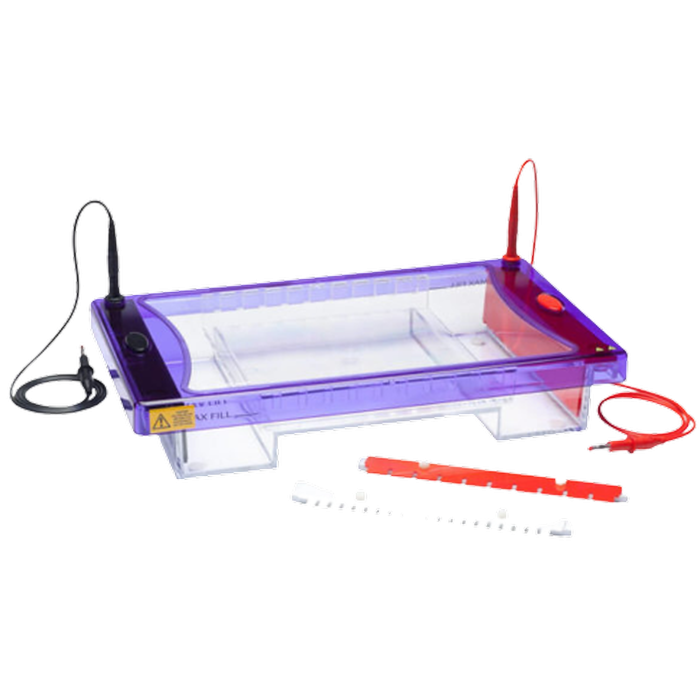

Multi Sub Maxi, 20x20cm UVTray, 2x20 sample 1mm thick comb
The MultiSUB Maxi is primarily designed for resolution of high numbers of samples, such as from Cloning or PCR. The MultiSUB Maxi allows ultra high-resolution separations over extended runs. Tray sizes correspond to standard blotter sizes. It also allows easy sample transfer onto a membrane for further analysis.
Four gel tray sizes are available; 20 x 10cm, 20 x 15cm, 20 x 20cm and 20 x 25cm. Multichannel pipette compatible combs of up to 40 samples facilitate speed loading of up to 440 samples per gel. 50 sample combs allow maximum sample capacity of 550 samples per gel. Casting dams allow gels to be rapidly cast externally while the MultiSUB Maxi unit is in use for gel running.
| SKU | MSMAXI20 |
| Unit Dimensions (cm) | 23 x 39.5 x 9 |
| Maximum Sample Capacity | 450 |
| Base Buffer Volume | 1200 |
| Buffer Recirculation | Requires MS20LID-BP |
| Flexicaster Options | MS15/20-FC, MS26-FC |
| Typical Running Conditions | 100-150V, 60-90 minutes |
| Bromophenol Blue Migration Rate | ~4-6.5cm/h at 100-150V |
| Gel Dimensions | 20 x 20 |
| Plate dimensions | 20 x 20 cm |
|---|---|
| Capacity | 450 |
| Dimensions | 23 x 39.5 x 9 |
| Buffer Volume | 1200 mL |
