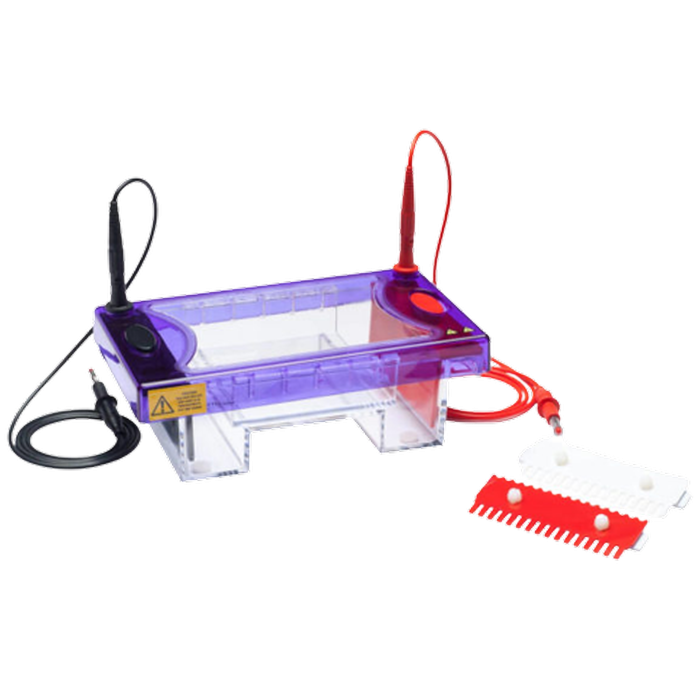

Multi Sub Midi, 10x7cm UVTray, 2x16 sample 1mm thick comb
Catalog Number:
MSMIDI7
Availability:
In stock
$715.13
Multi Sub Midi, 10x7cm UVTray, 2x16 sample 1mm thick comb
With gel tray options of 10 x 7cm and 10 x 10cm, the MultiSUB Midi has been designed for routine horizontal gel electrophoresis. Extending only the width of this unit allows more samples to be resolved per gel than the MultiSUB Mini, without a significant increase in buffer or gel volumes.
A maximum of 100 samples per gel can be resolved, making this unit ideal for those routinely checking medium numbers of samples over short to medium gel run lengths. Loading guides allow easy well identification and sample loading. Scoops are also available as an option to allow safe transfer of gels.
| SKU | MSMIDI7 |
| Unit Dimensions (cm) | 12.5 x 22 x 9 |
| Maximum Sample Capacity | 50 |
| Base Buffer Volume | 300 |
| Buffer Recirculation | No |
| Flexicaster Options | MS7/10-FC, MS15/20-FC, MS26-FC |
| Typical Running Conditions | 90V, 45-60 minutes |
| Bromophenol Blue Migration Rate | ~4-5cm/h at 90V |
| Gel Dimensions | 10 x 7 |
| Plate dimensions | 10 x 7 cm |
|---|---|
| Capacity | 50 |
| Dimensions | 12.5 x 22 x 9 |
| Buffer Volume | 300 mL |
