MBI EVO Fluo-200

Catalog Number:

MBIZR-07949-99

Availability: In stock

$5,130.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

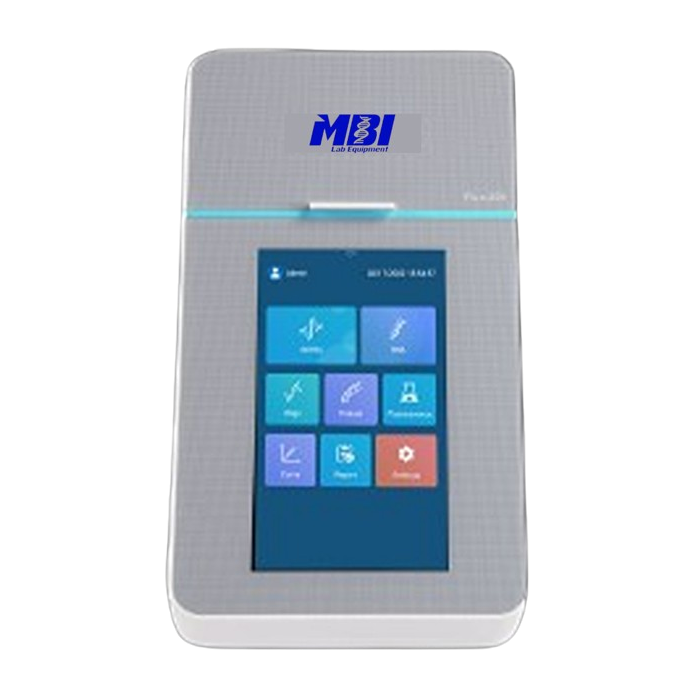

MBI EVO Fluo-200

The new fluorometer MBI EVO Fluo-200 is used for high sensitivity quantitative analysis of DNA, RNA and protein. Easy and humanized software, intuitive user interface and rapid test method greatly shorten the testing time.

•	Simple and intuitive — 7 inch color touch screen
•	Fast detection — fast & accurate quantification of DNA, RNA & protein in 5 s
•	Accurate quantification — high accuracy with only 1-20 μL samples
•	High sensitivity — the lowest detection limit can be 0.1 pg/μL (dsDNA)
•	Dual channel detection — adapt to more dyes
•	Stores results — up to 20000 programs can be stored
•	Data save — saves sample data as a CSV or PDF file
•	Data export — can be exported directly to U disk, or connected to an external printer
•	Open reagent application — can match reagents from different manufacturers

Specifications

Feature	Specification
Model	MBI EVO Fluo-200
Light Source	LED
Excitation Filter	Blue: 460±20 nm Red: 625±20 nm
Emission Filter	Green: 525-570 nm (45 nm) Red: 670-725 nm (55 nm)
Detector	Photodiode
Throughput	1
Sample Tube Type	0.5 mL PCR tube
Linearity	R²≥0.995
Linear Range	5 orders of magnitude
Sensitivity (Detection Limit)	<0.1 pg/uL (dsDNA HS)
Measurement Time	≤5 s/sample
Input Power	24 V 2 A
Operating Voltage	100-240 V@50-60 Hz
External Port	USB (Type A) ×2, USB (Type B) ×1, LAN ×1
Display	7-inch touch screen
Size (D×W×H)	286×161×61 mm
Weight	1.5 kg
Storage Capacity	20000 programs

Additional Information

More Information
Light Source	LED
Test Speed	Under 5 s/sample
Detector	Photodiode
Linearity (±)	R²≥0.995
Sensitivity	Under 0.1 pg/uL (dsDNA HS)
Dynamic range (linearity)	5 orders of magnitude
Excitation filter	Blue: 460±20 nm Red: 625±20 nm
Emission filter	Green: 525-570 nm (45 nm) Red: 670-725 nm (55 nm)
