MBI EVO Fluo-800
Catalog Number:
MBIZR-07959-99
Availability:
In stock

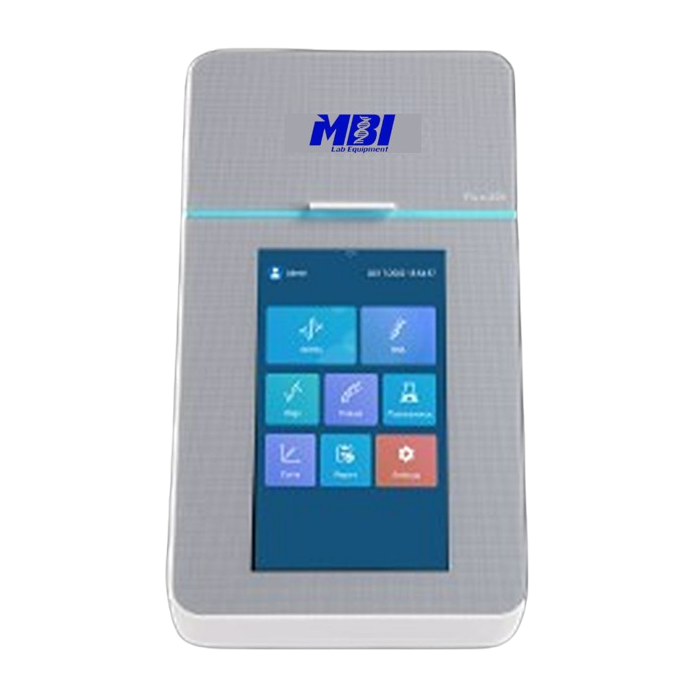

MBI EVO Fluo-800
MBI EVO Fluo-800 is used for high sensitivity quantitative analysis of DNA, RNA and protein. MBI EVO Fluo-800 is available to do the fluorescence detecting for 8 samples in simultaneous. High precision detection method reduces the variation effectively. Easy and humanized software, intuitive user interface and rapid test method greatly shorten the testing time.
- Simple and intuitive — 7 inch color touch screen
- High throughput — 8 samples per run
- Fast detection — 8 samples can be detected in 6 s
- Accurate quantification — high accuracy with only 1-20 μL samples
- High sensitivity — the lowest detection limit can be 1 pg/μL (dsDNA)
- Stores results — up to 20000 programs can be stored
- Dual channel detection — adapt to more dyes
- Data export — be exported directly to U disk, or connected to an external printer
- Data save — saves sample data as a CSV or PDF file
- Open reagent application — can match reagents from different manufacturers
Specifications
| Feature | Specification |
|---|---|
| Model | Fluo-800 |
| Light Source | LED |
| Excitation Filter | Blue: 460±20 nm<br>Red: 625±20 nm |
| Emission Filter | Green: 525-570 nm (45 nm)<br>Red: 670-725 nm (55 nm) |
| Detector | Photodiode |
| Throughput | 8 |
| Sample Tube Type | 0.2 mL tube strip |
| Linearity | R²≥0.995 |
| Linear Range | 4 orders of magnitude |
| Sensitivity (Detection Limit) | <1 pg/uL (dsDNA HS) |
| Measurement Time | ≤6 s/8 samples |
| Input Power | 24 V 2 A |
| Operating Voltage | 100-240 V@50-60 Hz |
| External Port | USB (Type A) ×2, USB (Type B) ×1, LAN ×1 |
| Display | 7-inch touch screen |
| Size (D×W×H) | 286×161×75 mm |
| Weight | 2 kg |
| Storage Capacity | 20000 programs |
| Light Source | LED |
|---|---|
| Test Speed | Under 6 s/8 samples |
| Detector | Photodiode |
| Linearity (±) | R²≥0.995 |
| Sensitivity | Under 1 pg/uL (dsDNA HS) |
| Dynamic range (linearity) | 4 orders of magnitude |
| Excitation filter | Blue: 460±20 nm Red: 625±20 nm |
| Emission filter | Green: 525-570 nm (45 nm) Red: 670-725 nm (55 nm) |
