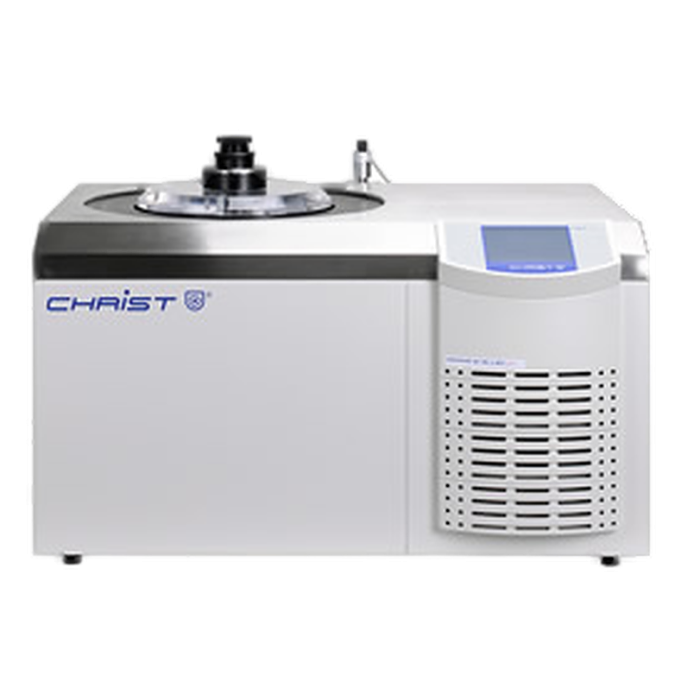

Freeze Dryer GAMMA 1-16 LSC+ (up to 16 kg - 1 compressor)
Catalog Number:
102210
Availability:
In stock
Freeze Dryer GAMMA 1-16 LSC+ (up to 16 kg - 1 compressor)
Total ice capacity 16 kg
Ice condenser temperature –55°C.
Universal freeze dryer with new intuitive unit control LSCplus (Lyo Screen Control plus)
- coloured touch screen with mimic diagram
- multi language user interface
- "one screen"-summary of set values
- graphical summary of programs
- program templates for different products
- detailed message informations
- different scale units °C/°F, mbar/hPa
- access-protection by password
- integration in network structures
- PC based simulation available
- USB-process recording and documentation via LyoLog software (optional)
- SCADA-System LPCplus available as Windows software (optional)
Product Specifications
| Ice condenser capacity | 16 kg |
|---|---|
| Ice condenser temperature | -55 °C |
| Dimensions of base model (W x H x D) | 860 x 485 x 650 mm |
| Weight | 135 kg |
| Communication port | Ethernet |
Possible configurations:
Process A:freezing and drying in ice condenser chamber:
- 1 shelf ø 200 mm
- 1 shelf with sealing device ø 200 mm
- Temperature range approx. -40°C ... +50°C
Process B: freezing separately, drying outside of ice condenser chamber:
- 12 or 24 round-bottom-flasks
- 5 or 10 heated shelves ø 200 mm
- 5 heated shelves ø 375 mm
- 2 or 4 heated shelves ø 250 mm with sealing device
- LyoCube® with up to 8 shelves (width x height = 256 mm x 300 mm)
| Infra-Red Heater | No |
|---|---|
| Ice condenser capacity | max. 16 kg |
| Ice condenser performance | max. 12 kg/24h |
| Ice condenser temperature | Approx. -60°C |
| Shelf temperature when pre-freezing inside the ice condenser chamber | approx. -40°C |
| Max. shelf surface area when drying inside the ice condenser chamber (process A) | 5 x 200 mm ø shelf. Approx 0.155 m2 |
| Max. shelf surface area when drying in injection vials with stoppering under vacuum or nitrogen atmosphere (process A) | 2 x 250 mm ø shelves. Approx. 0.09 m2 |
| Max. shelf surface area when drying outside the ice condenser chamber (process B) | 8 x 375 mm ø shelves. Approx 0.88 m2 |
| Max. shelf surface area when drying outside the ice condenser chamber in injection vials with stoppering under vacuum or inert gas (process B) | 4 x 250 mm ø shelves. approx 0.18 m2 |
| Shelves | 5 |
| Shelves Temperature | −50°C |
| Shelves Diameter | ø 360 mm |
| Drying area | Approx. 0.5 m² |
| Drying in round bottom flasks | 12/24 pieces |
| Dimensions | 860 x 485 x 650 mm |
| Net Weight | 135 kg |
| Power Supply | 230 V, 50 – 60 Hz |
| power consumption [W] | Approx. 2.1 kVA |
| Operating Temperature | 10°C – 32°C |
