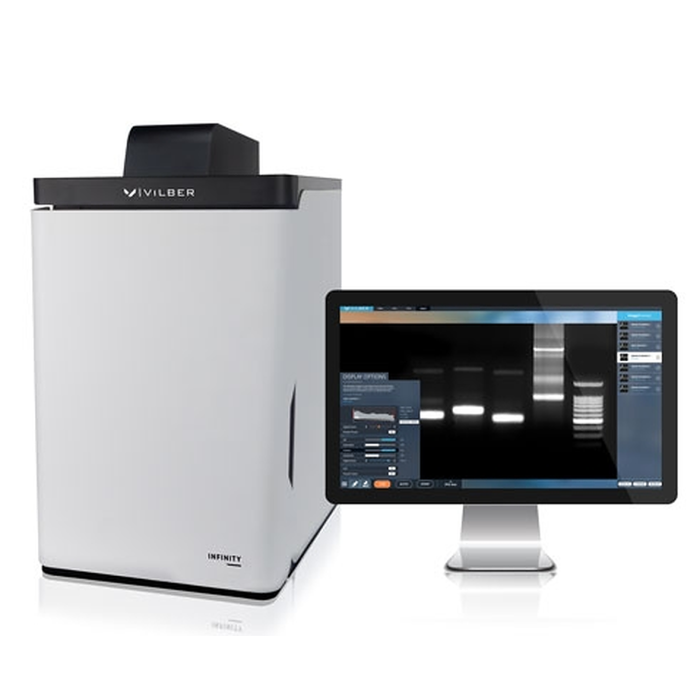

Infinity CX5
INFINITY: UPGRADEABLE
New Edge Generation; Upgradeable to Western Blot Imaging
The Infinity is the ultimate gel-doc system with extendable capabilities. The system can grow according to your laboratory need, from fluorescence to chemiluminescence Western blot applications.
Camera & Optics - CX5 camera:
- Scientific grade camera - Made in Germany
- 5 megapixels resolution extendable to 20 megapixels
- Passive cooling
- 16-bit – 65 536 grey levels
- USB-3 connection
- Motorized zoom lens with feedback
- Field of view: 26x21cm
Ease Of Use
- One-Click-to-the-Image™
- Auto-exposure
- Auto-focus
- Auto-lighting
Smart Darkroom technology:
- Software control of the lighting
- White light led panels with automatic intensity adjustment
- UV cut-off filter and 7 positions filter wheel
- Slide-out PadBox with automatic recognition of the Application Pad inserted
- Steel and stainless steel darkroom for long lasting robustness. Wide access door with UV safety shut-off
Software : Free Bio-Vision software for image acquisition with full GLP compliance. Molecular weight calculation, band quantification, colony counting, distance calculation, text annotation and image enhancement included.
CFR21 Part 11 ready
Applications:
DNA and RNA gels and fluorescence stain imaging:
- Ethidium bromide, Sybr-Safe, Sybr-Green, Gel-Red, Gel-Green, Sybr-Gold, GFP, Pro-Q Emerald, Sypro ruby, FITC, DAPI
- Colorimetric stained protein gels, X-Ray film, autorads, SSCP gels, colony dish and flask imaging and other EPI white light applications
- Coomassie blue, Silver stain, Ponceau S Red, Copper stain…
Sky-Pad or Blue light conversion screen for DNA/RNA detection (avoid «nicking» DNA):
- Sybr Safe, Sybr Green, eGFP
Technologies & Innovation :
- Apps Studio
- 3D Dynamics Scan
- SuperResolution
- ImageMaster™ assistant
Options :
Several Application-Pad can be easily inserted and removed inside the PadBox:
- UV-Pad – 312nm or dual wavelength 312 and 365nm
- Super-Bright-Pad – 312nm or dual wavelength 312 and 365nm
- Sky-Pad: LED blue light transilluminator, 470nm
- White-Light-Pad: white light LED transilluminator
White light or blue light conversion screen
Advanced Bio-1D quantification software
CFR21 Part 11 module
Product | Gel Documentation & Fluorescence |
---|---|
Camera | 16-bit Scientific Camera - (65,536 Grey levels) |
Image resolution | 5 Megapixels – Native / 20 Megapixels - extended |
Lens Aperture | f/1.2 Motorized |
Field of View | 21 x 26 cm |
Filter wheel | 10 positions |
Epi-Illumination | White-light / Optional UV |
Transillumination | UV 312nm / SkyLight Blue LED / White-Light |
Conversion Screen | White-light / Blue-light |
Slide-out Drawer | Yes |
Darkroom | Stainless steel & Aluminum |
Operating | PC Based |
Analysis software | Bio-Vision (free) |
Upgradeable Chemi | Yes |
Dimensions | 39cm x 48cm x 59cm |
