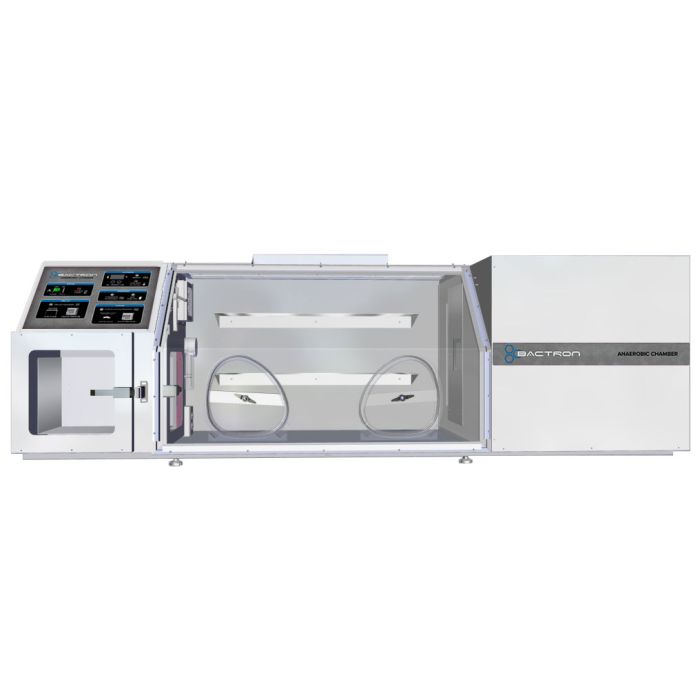

Bactron600 SHEL LAB Anaerobic Chamber, 17.6 Cu.Ft. (498 L)
Model Bactron 600, 17.6 Cu.Ft. (498 L) Anaerobic Chamber, 900 Plate Capacity
The BACTRON600 system permits volume handling of anaerobic cultures with maximum operator comfort. With a 17.6 cu.ft. workspace and a 600-plate capacity incubator, it is the largest, most complete anaerobic environmental system available. It is designed for high volume, yet requires far less bench space than expected for its capacity and performance features.
Bactron systems have airtight construction of stainless steel and rigid Plexiglas for unobstructed vision and integrity. The cuffs form a comfortable seal around the operator's arms permitting bare hand manipulation of plates and specimens inside the working chamber, making work more comfortable and efficient. In addition, all Bactron chambers have our new ergonomic armport doors, which ensure user comfort and minimize shoulder fatique.
Chamber atmosphere circulates through a condensate controller then through a catalyst, which removes any trace amounts of oxygen. High relative humidity is maintained while condensate moisture is removed without the unnecessary desiccants, which can dehydrate media and samples. Each unit contains an integral vacuum pump to provide rapid evacuation of air from the air lock module for replacement by an inert gas mixture.
The following items are included with the purchase of a BACTRON600:
-
- Vacuum Pump
- Interior Electrical Outlet
- Sleeve Assembly with Medium Cuff
- AMG Regulator
- Installation (USA only)
- Training Workshop (USA only)
- 24 Month Limited Warranty
A gas supply must be purchased separately.
| gloves | Two (2) gloves |
|---|---|
| Dimensions | 224 x 79.5 x 67.2cm (88.2 x 31.3 x 26.5 in.) |
| Capacity | 600 plates |
| Accessories (included) | 10 Petri Racks Included |
| Electric socket Outlets | Interior outlets : 2(120V), 1 (220V), 1A max |
| Temperature range (°C) | Amb.+5ºC to 70ºC |
| Temperature Uniformity | ± 0.5/1°C at 37°C |
| Incubator Volume | 130 L /4.6 ft³ |
| Working Chamber Volume | 498 L / 17.6 ft³ |
| Incubator Interior Dimensions | 59.7 cm diam x 47 cm (23.5 in. diam x 18.5 in.) Round Design / 70 x 20 x 34 cm (27.5 x 8 x 13.5 in.) |
| Working Chamber Interior Dimensions | 108 x 72.4 x 64 cm (42.5 x 28.5 x 25.2 in.) |
| Airlock Volume | 31 L /1.1 ft³ |
| Airlock Interior Dimensions | 30.5 x 34.3 x 30.5 cm (12 x 13.5 x 12 in.) |
| Temperature Alarm | No |
| Power Supply | 110-120 V / 220-240 V |
| Power | 1320 w / 1920 W |
