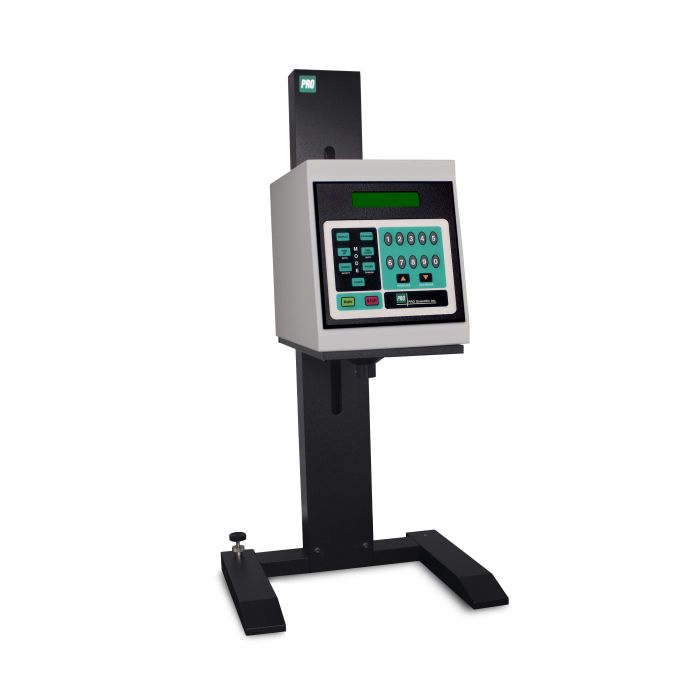

PRO400PCEL Programmable Benchtop Homogenizer (Extra Length)
Catalog Number:
01-02400EUPC
Availability:
In stock
PRO400PCEL Programmable Benchtop Homogenizer (Extra Length)
SKU: 01-02400EUPC
EXTRA-LENGTH STAND — 31 INCHES VERTICAL TRAVEL
The PRO400PCEL Programmable Benchtop Homogenizer delivers the same automated batch-processing power and RS232 PC control as the PRO400PC, but with an Extra Length PRO TRAC stand providing 31 inches of vertical travel — more than double the standard model's 14.5 inches. Designed for repetitive homogenizing in laboratory and industrial settings with minimal operator attention, it stores infinite multi-cycle protocols and delivers full documentation traceability for regulated workflows while accommodating taller vessels and large containers.
Key Highlights: 31-inch extra-length PRO TRAC motorized stand • Programmable via keypad or PC (RS232) • PROgrammable software included • Infinite programs storable, up to 23 cycles per program • Real-time speed/time graphing on PC screen • Data storage and recall (set vs. actual) • Override to manual control at any point • 0–23,000 RPM • 1305 W high-torque motor • 0.05 mL–30 L volume range • Made in USA • 2-year warranty
Core Features
Extra-Length PRO TRAC Stand
Motorized stand developed by PRO Scientific provides 31 inches of vertical travel for effortless, accurate motor positioning over taller containers and large vessels — more than double the standard stand height.
Automated Batch Programming
Create and store an infinite number of programs, each with up to 23 unique cycles defining speed, run time, and pause between cycles. Ideal for repetitive processing with minimal operator attention.
Dual Interface Control
Program directly from the unit's built-in keypad or from any laptop/desktop computer via RS232 serial communication using the included PROgrammable software. Override to manual control instantly at any point during a run.
Real-Time Data Graphing & Documentation
As homogenization proceeds, speed and time data are graphed live on the PC screen. Both programs and collected data (set vs. actual time and speed) can be stored, recalled, displayed, or printed for full verification and documentation maintenance.
PROgrammable Software
The included PROgrammable software turns the PRO400PCEL into a fully documented batch-processing workstation. Graph homogenization programs in real time, compare expected versus actual speed and time curves, and generate printable reports for regulatory compliance and SOP verification.
Note: Generator probes or chamber assemblies are required for operation and are sold separately. Viscous samples will reduce maximum processing capacity. Adding a deflector head to your generator probe facilitates sample movement and helps increase maximum homogenizable volume.
PRO400PC vs. PRO400PCEL Comparison
| Specification | PRO400PC | PRO400PCEL |
|---|---|---|
| SKU | 01-02400PC | 01-02400EUPC |
| Stand Type | PRO TRAC motorized stand | Extra Length PRO TRAC motorized stand |
| Vertical Travel | 14.5 inches (36.8 cm) | 31 inches (78.7 cm) |
| Dimensions (W × H × D) | 15.25 × 14 × 30 in 38.7 × 35.6 × 76.2 cm |
15.25 × 14 × 41 in 38.7 × 35.6 × 104.1 cm |
| Weight | 40 lbs (18.1 kg) | 41 lbs (18.6 kg) |
| All Other Specifications | Identical | |
Full Technical Specifications
| Specification | Details |
|---|---|
| SKU | 01-02400EUPC |
| Motor Power | 1305 W high-torque motor |
| Speed Range | 0 – 23,000 RPM |
| Speed Control | Digital variable-speed |
| Volume Processing Range | 0.05 mL – 30 L (higher volumes dependent on viscosity) |
| Programmability | Infinite programs storable; up to 23 unique cycles per program (speed, run time, pause) |
| Control Interfaces | Unit keypad + RS232 serial PC communication |
| Included Software | PROgrammable software (graphs real-time data, stores programs and results) |
| Data Output | Screen display or printout of set/actual time and speed |
| Override Capability | Manual control override at any point during automated cycle |
| Stand Type | Extra Length PRO TRAC motorized stand (included) |
| Stand Vertical Travel | 31 inches (78.7 cm) |
| Noise Level | ~68 dB |
| Dimensions (W × H × D) | 15.25 × 14 × 41 in / 38.7 × 35.6 × 104.1 cm |
| Weight | 41 lbs (18.6 kg) |
| Power Rating | 1305 Watts, 120 V |
| Probe Compatibility | Full line of PRO Scientific generator probes and chamber assemblies (sold separately) |
| Country of Manufacture | USA |
| Warranty | 2-year warranty |
Applications
- Repetitive batch homogenization in QC and manufacturing environments
- Regulated workflows requiring full processing documentation and verification
- Tissue homogenization for molecular biology and biochemistry
- Emulsification, blending, and mixing of organic and inorganic materials in tall vessels
- Environmental sample preparation with traceable parameters
- Pharmaceutical formulation development with reproducible protocols
- Processing in extra-large or tall containers where standard stand height is insufficient
Generator probes, chamber assemblies, and accessories sold separately. Specifications subject to change without notice.
| Speed Control | Digital; Variable speed |
|---|---|
| Speed Range | 0 - 23,000 RPM |
| Wattage | 1305 Watts |
| Sample volume | 0.05ml to 30L |
| Noise Rating | 68 dB |
| Dimensions | 15.25 X 14 X 41 in. |
| Net Weight | 41 lbs |
