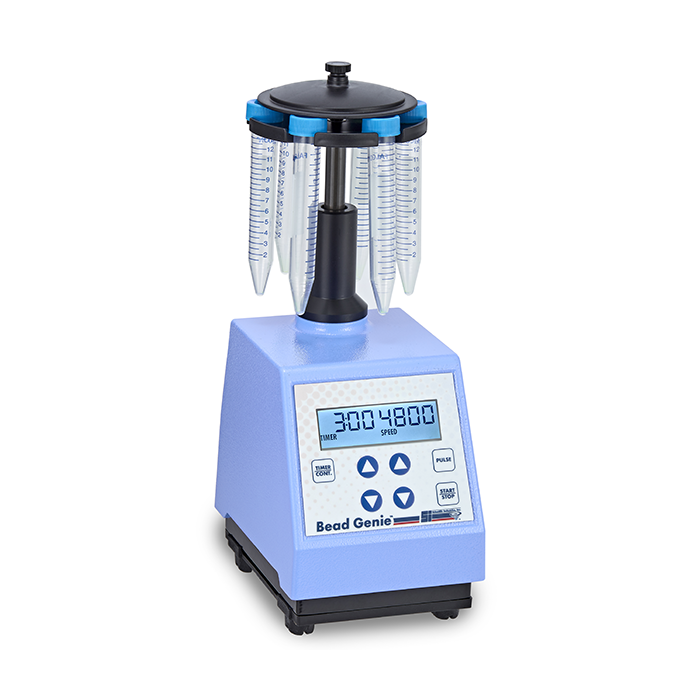

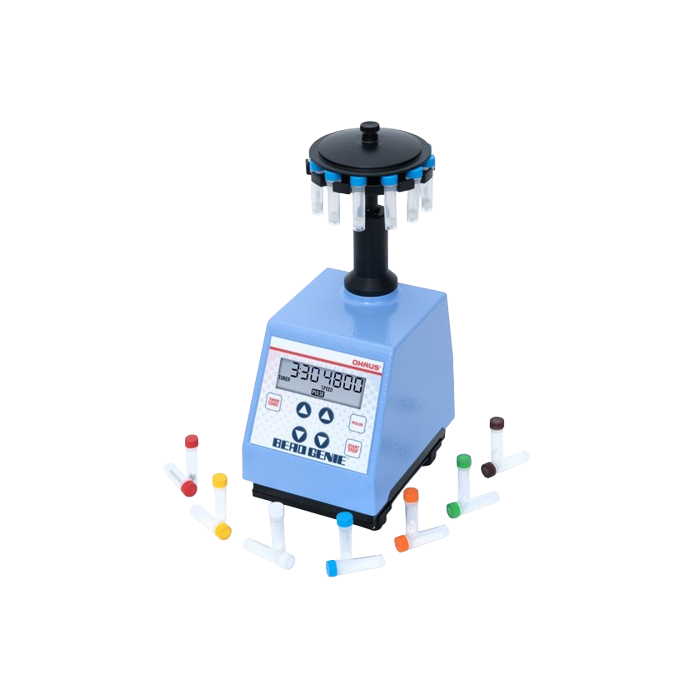

Bead Genie
The Bead Genie™ is a powerful, compact bead mill homogenizer built in the USA for bead beating, lysing, extraction, and homogenization applications. Its aggressive 19 mm vertical mixing motion ensures thorough disruption of tough samples, delivering consistent and reproducible results. A high-efficiency DC motor provides powerful, unique vertical motion to ensure smooth and efficient operation.
The solid metal casting weighs 13 pounds, ensuring stable performance without movement during aggressive vertical mixing. The space-saving design easily fits on the lab bench, into a biosafety cabinet, or in a cold room. Digital speed and time control provide accuracy, reproducibility, and repeatability with complete control over run parameters. A variable RUN/STOP pulse function enables rapid pulsing for superior interval mixing.
- Speed range: 500 – 4800 strokes per minute (250 – 2400 RPM)
- Motion: 19 mm vertical stroke for aggressive bead beating action
- Timer: 1 second to 99 minutes or continuous operation
- Pulse ON/OFF: 1 second to 99 minutes for rapid interval mixing
- Digital speed and time control with backlit LCD display
- Variable RUN/STOP pulse mode for superior interval mixing
- Solid metal casting (6 kg / 13 lbs) ensures zero movement during operation
- High-efficiency DC motor for powerful, smooth, and efficient operation
- Compact footprint fits on lab benches, in biosafety cabinets, or cold rooms
- Tool-free interchangeable tube holders
- CE marked
- 2-year warranty
- Made in the USA
- Cell lysis and tissue homogenization
- DNA/RNA extraction
- Protein extraction
- Microbial and yeast cell disruption
- Bacterial and fungal cell lysis
- Plant tissue grinding
- Soil sample homogenization
- Clinical labs, research labs, environmental and agricultural testing
| Parameter | Specification |
|---|---|
| Speed Range | 500 – 4800 strokes/min (250 – 2400 RPM) |
| Motion | 19 mm vertical |
| Timer | 1 sec to 99 min or continuous |
| Pulse ON/OFF | 1 sec to 99 min |
| Display | Backlit LCD |
| Weight | 6 kg (13 lbs) |
| Dimensions (D × W × H) | 165 × 122 × 330 mm (6.5 × 4.8 × 13 in) |
| Electrical | 115 V, 60 Hz (120 V model); 230 V, 50/60 Hz (230 V model) |
| Operating Temperature | 0°C to 38°C (32°F to 100°F) |
| Max. Relative Humidity | 95% |
| Tube Holders Included | 12 × 1.5/2.0 mL (vertical & horizontal), 6 × 15 mL, 3 × 50 mL |
| Markings | CE |
| Warranty | 2 years |
| Origin | Made in the USA |
| Speed Range | 500 - 4800 strokes per minute (250-2400 RPM) |
|---|---|
| Motion | 19mm (Vertical) |
| Timer | 1 sec to 99 minutes or continuous |
| Sample volume | Supplied with holders to hold vertically 12 microtubes (1.5 or 2.0ml), 6 15ml tubes, or 3 50ml tubes, and 12 microtubes (1.5 or 2.0ml) horizontally. |
| Dimensions | 165 x 122 x 330mm (6.5 x 4.8x 13in) |
| Net Weight | 6 kg |
| Power Supply | 120V |
| Warranty | 2 years |
| Catalog Number | Product Name | Price | Qty |
|---|---|---|---|
| MBIGSL3001 | MBI Glass Beads-Soda Lime, Size 3.0mm, pkt 1280 (0.1lb) |
$136.80
|
|
| Glass, Soda Lime, Size 5.0mm, pkt 275 (0.1lb) | MBI Glass Beads-Soda Lime, Size 5.0mm, pkt 275 (0.1lb) |
$136.80
|
|
| Glass, Low Alkali, Size 3.0mm, pkt 1435 (0.1lb) | MBI Glass Beads - Low Alkali, Size 3.0mm, pkt 1435 (0.1lb) |
$273.60
|
|
| Glass, Low Alkali, Size 5.0mm, pkt 310 (0.1lb) | MBI Glass Beads - Low Alkali, Size 5.0mm, pkt 310 (0.1lb) |
$273.60
|
|
| MBISS44031701 | MBI Stainless Steel Beads - 440C S/S Balls, Size 3.17mm 350 pcs. per pack (0.1lb) |
$216.01
|
|
| MBISS44047501 | MBI Stainless Steel Beads - 440C S/S Balls Size 4.75mm 100 pcs. per pack (0.1lb) |
$136.00
|
|
| MBISSC4001 | MBI Stainless Steel Beads Coneballs-Size 4.0mm 70 pcs. per pack (0.1lb) |
$150.00
|
|
| MBICZRO3001 | MBI Very high density ZrO Beads - Size 3.0mm 1175 pcs. per pack (0.1kg) |
$430.40
|
|
| MBICZRO5001 | MBI Very high density ZrO Beads-Size 5.0mm 250 pcs. per pack (0.1kg) |
|
