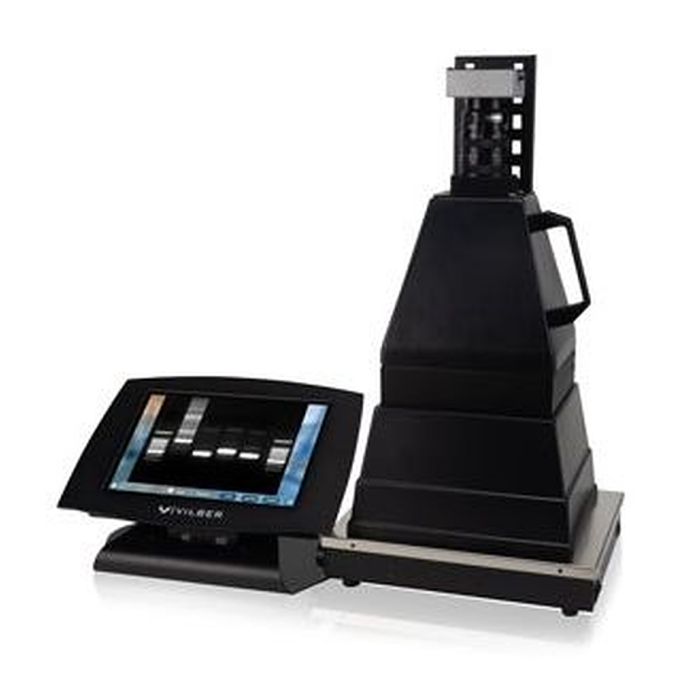

Doc-Print CX3
DOC-PRINT CX3 : EASY & FUN
Stand-Alone Gel Documentation Imaging
The Doc-Print is a standalone imaging system dedicated to basic gel documentation. Thanks to the auto-exposure, the acquisition process is as quick as instinctive.
Camera and Optics - CX3 camera:
- Scientific grade camera - Made in Germany
- 3 megapixels resolution extendable to 20 megapixels
- Passive cooling
- 16-bit – 65 536 grey levels
- USB-3 connection
- Field of view: 24x18cm
Ease of Use:
- One-Click-to-the-Image™
- Auto-exposure
- Self-understandable user interface
- Print or save on an external drive via the USB port
- Connect to a thermal printer to get vibrant glossy printouts
Hardware: ABS hood F590 emission filter for standard gel applications Transilluminator not included. Complete network connectivity
- Very large 12.6” touch screen interface display with
- Magster™ technology
- Stand-alone system - No computer require
- Small footprint
Software: Free VisionCapt software with full GLP compliance. Molecular weight calculation, band quantification, colony counting, distance calculation, text annotation and image enhancement included.
Applications:
DNA and RNA gels and fluorescence stain imaging:
- Ethidium bromide, Sybr-Safe, Sybr-Green, Gel-Red, Gel-Green, Sybr-Gold, GFP, Pro-Q Emerald, Sypro ruby, FITC, DAPI
- Colorimetric stained protein gels, X-Ray film, autorads,
SSCP gels, colony dish and flask imaging and other EPI white light applications:
- Coomassie blue, Silver stain, Ponceau S Red, Copper stain…
Sky- Pad or blue light conversion screen for DNA/RNA detection (avoid « nicking » DNA):
- Sybr Safe, Sybr Green, eGFP
- UV-Pad – 312nm or dual wavelength 312 and 365nm
- Super-Bright-Pad – 312nm or dual wavelength 312 and 365nm
- Sky-Pad: LED blue light transilluminator, 470nm
- White-Light- Pad: white light LED transilluminator
- White light or blue light conversion screen
- Advanced Bio-1D quantification software
Product | Gel Documentation & Fluorescence |
---|---|
Camera | 16-bit Scientific Camera - (65,536 Grey levels) |
Image resolution | 3 Megapixels – Native / 20 Megapixels - extended |
Lens Aperture | f/1.2 |
Field of View | 21 x 26 cm |
Filter wheel | 1-position |
Epi-Illumination | Not included |
Transillumination | UV 312nm / SkyLight Blue LED / White-Light |
Conversion Screen | White-light / Blue-light |
Slide-out Drawer | No slide-out drawer |
Darkroom | Plastic Hood |
Operating | In-built PC + 12.6” Touch-Screen |
Analysis software | Bio-Vision (free) |
Upgradeable Chemi | No |
Dimensions | 26cm x 21cm x 57cm |
