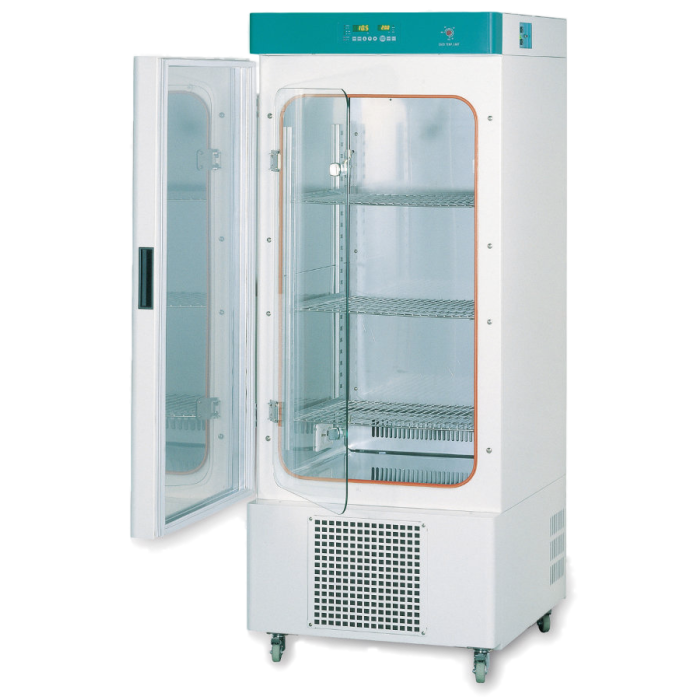

Low Temperature Incubators, IL3-25 (242 Liters)
Catalog Number:
AAH220562U
Availability:
In stock
Lab Companion (Jeio Tech) - Low Temperature Incubators, IL3-25 (242 Liters)
Performance
- Temperature range from 0°C to 80°C.
- Silent cooling system reduces water evaporation within the chamber. - Microprocessor PID control.
- Three point temperature calibration / Automatic tuning.
- Forced air convection using an optimal cross flow fan for chamber temperature uniformity.
Convenience
- Large chamber volume: maximum 242L.
- Bright VFD display (0.1℃resolution)
- Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.) with heating level indication and quick adjustable dial knob.
- Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
- Convenient preset function for 3 most commonly used temperature settings.
- Built-in electrical outlet with a safety cover inside the chamber.
- Convenient sample monitoring without affecting chamber temperature via the inner tempered-glass door.
- Rounded inner chamber corners for easy cleaning and optimal airflow.
- Quick-release front grill for easy cleaning of the condenser.
- Built-in RS-232 port and USB port for external control and data collection.
- Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)
Safety
- Automatic run after power interruption.
- Over-current protection.
-
Triple independent temperature monitor system.
- Temperature deviation alarm (High/Low)
- Electronic temperature limiter (High/Low)
- Mechanical over-temperature limiter (High)
- Keypad lock function prevents accidental changes during operation.
- Audible and visible open door alarms.
| Chamber volume (L / cu ft) | 242 / 8.5 |
|---|---|
| Refrigerator (Hp) | 1 / 6 HBP |
| Temperature | |
| Range (℃ / ℉) | 0 to 80 / 32 to 176 |
| Fluctuation at 37℃ (±℃ / ℉) | 0.1 / 0.18 |
| Variation at 37℃ (±℃ / ℉) | 1.0 / 1.08 |
| Heating time 20 to 37℃ (min.) | 45 |
| Cooling time 20 to 5℃ (min.) | 50 |
| Recovery time at 37℃ (min.) | 4 |
| Dimension | |
| Interior (W x D x H, mm / inch) | 500 x 520 x 930 / 20 x 20.5 x 36.6 |
| Exterior (W x D x H, mm / inch) | 620 x 770 x 1680 / 24.4 x 30.3 x 66.1 |
| Net weight (Kg / lbs) | 135 / 297 |
| Shelves | |
| Quantity of shelves (standard/max.) | 3 / 13 |
| Max. Load per shelf (Kg / lbs) | 30 / 66 |
| Electrical requirements (120V, 60Hz, A) | 60Hz, 10.6 |
| Cat. No. | AAH220562U |
| Chamber volume | 242L |
|---|---|
| Permissible Environmental Condition | Temperature 5¹C to 40¹C Maximum relative humidity 80% Altitude up to 2,000m |
| Temperature Range | 0℃ to 80℃ |
| Temperature Accuracy | ± 0.1℃ at 37℃ |
| Temperature Uniformity | ± 1℃ at 37℃ |
| Temperature Control | Microprocessor PID contro |
| Exterior Dimensions | 620mm × 770mm × 1680mm |
| Chamber Dimensions | 500mm × 520mm × 930mm |
| Timer | Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.) |
| Shelves | wire shelves |
| Refrigerator | 1/6Hp(HBP) |
| Safety Device | • Triple independent temperature monitor system. |
| Power Supply | 60Hz, 10.6A |
| Interior Dimensions | 500×520×930mm |
