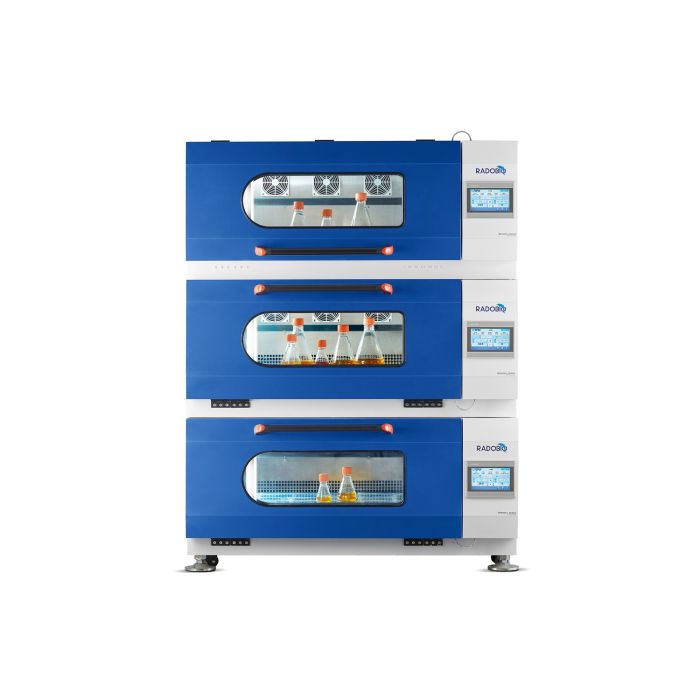

CS315 CO2 Incubator Shaker (315L), stackable up to 3-fold, UV Sterilization
Overview
The CS315 UV Sterilization Stackable CO₂ Incubator Shaker delivers the largest capacity in the RADOBIO stackable series: 315 L with a massive 520 × 880 mm tray. It is designed for industrial-scale suspension cell culture, microbial fermentation, and bioprocessing applications requiring high volume and heavy loads.
The push-pull aluminum tray accommodates up to 60 × 250 mL or 40 × 500 mL or 24 × 1,000 mL flasks — or 15 × 3,000 mL / 8 × 5,000 mL for truly large-scale work. With a 50 kg maximum load and 50 mm orbital throw, it handles dense cultures with ease.
Stackable up to 3 units, the CS315 scales from single-unit floor-standing to triple-stacked megacapacity without additional installation. Each unit operates independently. The 7-inch touchscreen, UV sterilization, heatless waterproof fan, and all-stainless waterproof chamber are standard.
Key Advantages
- Massive 315 L chamber
- Extra-large tray: 520 × 880 mm
- Heavy load: up to 50 kg
- Stackable up to 3 units
- Independent operation per unit
- 7-inch LCD touchscreen
- Push-pull aluminum tray
Features
Applications
Technical Specifications
| Model | CS315 |
| Chamber Volume | 315 L |
| Rotation Speed | 2–300 rpm (depending on load and stacking) |
| Speed Accuracy | ±1 rpm |
| Shaking Throw | 50 mm (customization available) |
| Shaking Motion | Orbital |
| Temperature Range | 4–60°C |
| Temperature Accuracy | ±0.1°C |
| Temperature Uniformity | ±0.3°C at 37°C |
| Temp. Sensor | Pt-100 |
| Temp. Control | PID control mode |
| CO₂ Control Range | 0–20% |
| CO₂ Display Resolution | 0.10% |
| CO₂ Sensor | Infrared (IR) |
| CO₂ Supply Pressure | 0.05–0.1 MPa recommended |
| Sterilization | UV sterilization |
| Tray Size | 520 × 880 mm |
| Maximum Load | 50 kg |
| Maximum Working Height | 340 mm (one unit) |
| Flask Capacity | 60×250mL or 40×500mL or 24×1000mL or 15×2000mL or 15×3000mL or 8×5000mL |
| Timer | 0–999 h |
| Programs | 5 programs, 30 stages each |
| Data Storage | 800,000 messages |
| Data Export | USB interface |
| Illumination | FI tube, 30 W |
| Power Consumption (max.) | 1,300 W |
| Power Supply | 115/230 V ±10%, 50/60 Hz |
| Ambient Temperature | 5–35°C |
| Exterior — 1 Unit (W×D×H) | 1,330 × 820 × 620 mm (base included) |
| Exterior — 2 Units (W×D×H) | 1,330 × 820 × 1,170 mm (base included) |
| Exterior — 3 Units (W×D×H) | 1,330 × 820 × 1,720 mm (base included) |
| Interior Dimensions (W×D×H) | 1,050 × 730 × 475 mm |
| Weight | 220 kg per unit |
| Chamber Material | Stainless steel |
| Outer Chamber Material | Painted steel |
| Optional Items | Sliding black window; Remote monitoring |
| Capacity | 250ml×60 or 500ml×40 or 1000ml×24 or 2000ml×15 (Conical flask |
|---|---|
| Temperature Range | 4℃ to 60℃ |
| Temperature Accuracy | ± 0.1°C |
| Temperature Uniformity | ± 0.3°C at 37°C |
| Temperature Control | PID control mode |
| Speed | 2 - 300 RPM depending on load and stacking |
| Shaking motion | Orbital |
| Timer | 1 min - 999 hr 59 min |
| Maximum Load | 50 kg |
| Chamber volume | 315L |
| Plate dimensions | 52 x 88 cm |
| Interior Dimensions | 720×632×475mm |
| Exterior Dimensions | 1330×820×620mm |
