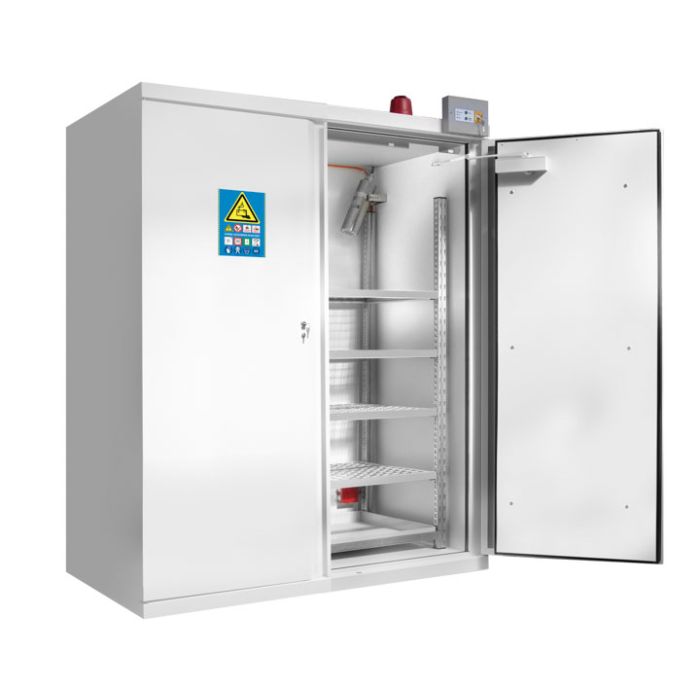

SAFETY CABINET 90 MIN FOR LITHIUM BATTERIES - 2 DOORS + 4 SHELVES 790+2F+ 1 X VIG590 + 1 EX500LI EXTINGUISHER, AND UPPER CABLE ENTRY (Internal Volume: 1675L)

SAFETY CABINET 90 MIN FOR LITHIUM BATTERIES - 2 DOORS + 4 SHELVES 790+2F+ 1 X VIG590  + 1 EX500LI EXTINGUISHER, AND UPPER CABLE ENTRY (Internal Volume: 1675L)

COMPLIANCE

• REGULATION-EU-2023/1542, Article 42-4: Storage or transport conditions ensure battery compliance.
• Fire resistance: Built to resist fire from outside to inside for 105 minutes or 90 minutes, according to EN 14470-1 and EN 1363-1 standards.
• Fire barrier construction: Certified EI 180 min type A1 from inside to outside, following NF EN 13501-2 standard.
• Standard pictograms: Compliant with ISO 3864, ISO 7010, and European Directive 92/58/EEC.

ADVANTAGES

• Full-height handle: For better ergonomics and ease of opening.
• Base for easy movement with a pallet truck: Avoids heavy handling and allows easy relocation during reorganization.
• Aesthetic base cover: Simple to use, with no need for fastening tools.
• Ventilation ducts with fusible system: Isolate the cabinet’s contents in case of fire.

PASSIVE SAFETY

• Double-wall construction:
  • Outer walls: 12/10 steel with RAL 9010 white epoxy paint.
  • Inner walls: White melamine, RAL 9010.
  • Thermal insulation panels between walls to limit thermal bridging.
• Grounding point: Provided for grounding connection.

ACTIVE SAFETY

• Thermo-expanding door seals.
• Ventilation openings: With a 100 mm outlet for optional connection.
• Automatic door closure with lock.

OPTIONS

• Perforated shelf for 790+1FLI cabinet: Load capacity of 100 kg (Ref. E1FLI).
• Four-level perforated shelving for 790+2FLI: Load capacity of 150 kg (Ref. R2FLI). Total shelving weight: 30 kg. Color: gray RAL 7035. Posts perforated at 62 mm intervals.
• Removable retention tray: Located at the bottom (Ref. B1FLI or B2FLI).
• Automatic extinguisher: Activates at 79°C via thermal bulb, designed for lithium (Ref. EX500LI) (triggered by smoke detection if included in VIG590).
• Power strip for battery charging: (Ref: see country-specific table).
• Fireproof cables and casing.
• IEC connector cable, 3 meters long, for quick disconnection.
• Cable entry at the bottom: With fireproof cable gland (Ref. PEXTBALI).
• Complete security and alarm system: Includes visual and audible alarm, control unit, automatic extinguisher triggered by smoke detection, and cable entry (Ref. VIG590).
