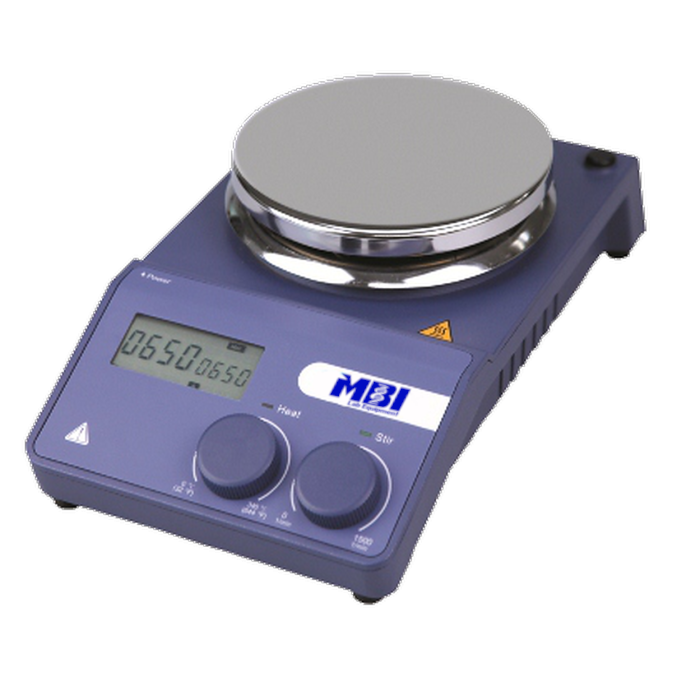

MBI MS-H-Pro Plus Circular-top LCD Digital Hotplate Stirrer (Stainless steel)
Catalog Number:
MBI75033190
Availability:
In stock
Special Price
$1,119.67
Regular Price
$1,219.74
MS-H-Pro-Plus Circular-top Digital Magnetic Hotplate Stirrer:
The MS-H-Pro Plus is one of the most technically advanced hotplate-stirrers in the marketplace. With independent backlit LCD displays for both heat and stirring functions and PID technology, the MS-H-Pro Plus controls temperature at +/- 1ºC. It also incorporates a DC brushless (spark free) motor for extremely long life and excellent performance.
MS-H-Pro-Plus Circular-top Digital Magnetic Hotplate Stirrer Features:
- Easy-to-read backlit LCD display
- Heat only, stir only or heat and stir together functions
- Automatic spin bar retrieval
- Low temperature stability
- Stirring and heating functions can be saved in memory
- Accessory PT-1000 Sensor for medium temperature control available (Free with confirmed purchase!
- Accessory reaction blocks for flasks and vessels available
- Electronic speed control for constant speed even during changes in load
- Maintenance free DC brushless motor for long life
- High magnetic adhesion
- Free software for control & data logging by PC
- cTUVus approved
- CE Marked
- 1 Year Warranty
| Work plate dimension | φ135mm(5 inch) |
|---|---|
| Work plate material | stainless steel cover with ceramic |
| Motor type | Brushless DC motor |
| Motor input power | 18W |
| Motor output power | 10W |
| Power | 550W |
| Heating output | 500W |
| Voltage | 100-120V 60Hz |
| Stirring positions | 1 |
| Max. stirring quantity[H2O] | 20L |
| Max. magnetic bar[length] | 80mm |
| Speed range | 100-1500rpm, resolution±1rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room Temp.-340°C, increment 1°C |
| Temperature control accuracy | ±1°C(<100°C)±1%(>100°C) |
| Over temperature protection | 360°C |
| Temperature display accuracy | ±0.1°C |
| External temperature sensor | PT1000 (accuracy ±0.2) |
| "Hot" warning | 50°C |
| Data connector | RS232 |
| Protection Class | IP42 |
| Dimension[WxDxH] | 160×280×85mm |
| Weight | 2.8kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
Accessories (not available on the website) :
|
Catalog No. |
Description |
| 18900016 | PT1000 Sensor |
| 18900136 | PT1000 Sensor with glass protective sleeve for use with corosive chemicals |
| 18900001 | Carrying plate for quarter pie reaction blocks |
| 18900065 | Containment ring to secure quarter pie reaction blocks in hotplate |
| 18900002 | Red quarter reaction block, 11 holes 4 ml reaction vessel 15.2mm dia x 20mm depth |
| 18900003 | Purple quarter reaction block, 4 holes 20 ml reaction vessel 28mm dia x 24mm depth |
| 18900004 | Blue quarter reaction block, 4 holes 30 ml reaction vessel 28mm dia x 30mm depth |
| 18900005 | Black quarter reaction block, 4 holes 16ml reaction vessel 28mm dia x 43mm depth |
| 18900048 | Green quarter reaction block, 6 holes 8ml reaction vessel 17.75mm dia x 26mm depth |
| 18900049 | Gold quarter reaction block, 4 holes 16ml reaction vessel 21.6mm dia x 31.7mm depth |
| 18101006 | Reaction block for 50ml round bottom flasks (1 flask capacity) |
| 18101007 | Reaction block for 100ml round bottom flask (1 flask capacity) |
| 18101008 | Reaction block for 250ml round bottom flask (1 flask capacity) |
| 18101009 | Reaction block for 500ml round bottom flask (1 flask capacity) |
| Capacity | 20 L |
|---|---|
| Work plate material | Stainless steel cover with ceramic |
| Motor type | Brushless DC motor |
| Motor rating input / output(W) | 18W / 10W |
| Heat output | 500W |
| Voltage | 100-120/200-240, V50/60Hz |
| Plate dimensions | Φ13.5 cm |
| Stirring Positions | 1 |
| Stirring Speed | 100 - 1500 RPM |
| Speed display | LCD |
| Max. magnetic bar (length) | 80mm |
| Temperature range (°C) | Ambient to 340ºC |
| Temperature Accuracy | ± 0.2°C |
| Temperature Increment | 1°C |
| Permissible ambient temperature (℃) | 5°C to 40°C |
| Permissible relative humidity (%) | up to 80% |
| Protection class | IP 42 |
| Dimensions | 160 x 280 x 85mm (6.3 x 11 x 3.4in) |
| Net Weight | 2.8 kg / 6.2 lbs |
| Controls | Digital |
