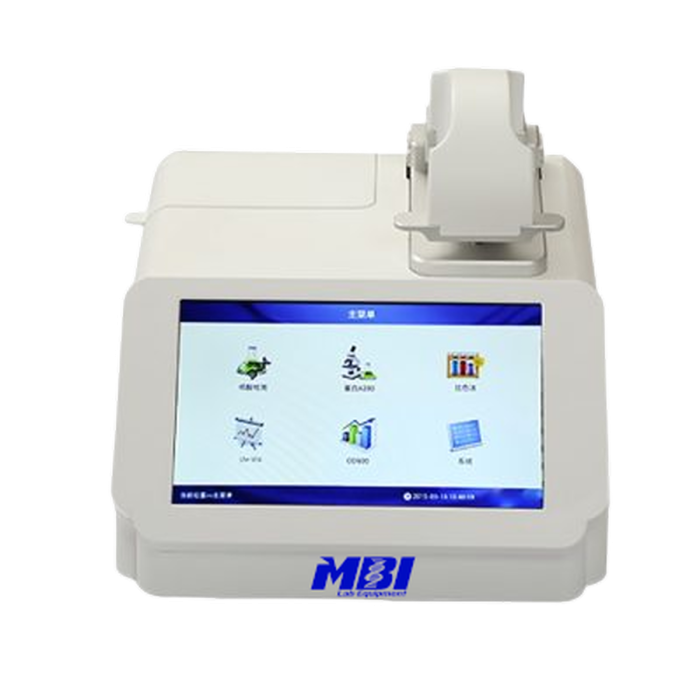

MBI Nano-Spectrophotometer 300
MBI Nano-Spectrophotometer 300
Nano-300 is a perfect full-spectrum, UV-Vis micro-spectrophotometer based on Nano-100 with full range of wavelength (200-800nm). Not only can it quickly and accurately detect nucleic acids, proteins and cell solutions with only 2 μl of sample like Nano-100, but it is also equipped with a cuvette mode to detect the concentration of bacteria and other culture solutions, and then determine the growth of bacteria. Nano-300 is added a new function of bacterium cell concentration test (OD600). Nano-300 uses 7-inch touch screen and is integrated with Android system, which do not need to connect to a computer. It can be efficiently and conveniently applied to various fields of life science, and has become a routine configuration instrument in many laboratories.
Features
- Android system, 7-inch capacitive touch screen, intuitive APP software, simple and easy to use
- To detect the concentration of bacteria and microorganism are more convenient with the OD600 function
- With a 2048-Element linear CCD array detector, the detection and display can be completed in 5s
- Equipped with HD touch screen, no need to connect PC
- When the Nano-300 is idly left more than 5mins, it will switch off automatically. Then, the user can awake the machine by touching the screen
- The data can be printed with built-in printer, and can output via USB for data analysis and storage
- Turn on and instantly measure without lamp warm up time; full scan capability from 200-800nm within 5 sec
Application Range
- 260 nm: dsDNA, ssDNA, RNA
- 595 nm: Bradford
- 280 nm: A280, BSA, IgG, Lysozyme
- 600 nm: Bacterial concentration
- 562 nm: BCA
- 650 nm: Lowry
Technical Parameter
| Wavelength range | 200-800 nm |
| Minimum sample size | 0.5-2.0 μl |
| Path length | 0.2mm 1.0mm |
| Light source | Xenon flash lamp |
| Detector type | 2048-Linear CCD array |
| Wavelength accuracy | 1 nm |
| Spectral resolution | ≤3 nm (FWHM at Hg546 nm) |
| Absorbance precision | 0.003Abs |
| Absorbance accuracy | 1 % (7.332Abs at 260 nm) |
| Absorbance range | 0.04 - 90A |
| Detects nucleic acid up to | 2~4500 ng/μl (dsDNA) |
| Measurement time | <5 S |
| Data output | USB |
| Sample pedestal material | Aluminum alloy and Quartz fiber |
| Operating voltage | DC 24 V 2 A |
| Operating power | 25 W |
| Standby power | 5 W |
| Dimension (WxDxH)mm | 210×268×181 |
| Weight | 2.8 kg |
| Software compatibility | Android system |
| OD600nm measurement | |
| Light source | LED |
| Wavelength range | 600±8 nm |
| Absorbance range | 0-4 A |
SmartDrop L, NS1000, SmartDrop X, NS1010, SmartDrop XF, NS1020, SmartDrop Nano Spectrophotometers for Microvolume Analysis of DNA, RNA and Proteins, Accuris SmartDrop™
Nano-Spectrophotometer, UV-Vis micro-spectrophotometer, full-spectrum, nucleic acids detection, protein detection, cell solutions, cuvette mode, bacterium cell concentration test, 7- OD600nm measurement, NanoDrop, SmartDrop, Nanophotometer, 76777-150
| Light Source | Xenon flash lamp |
|---|---|
| Wavelength range | 200 - 800nm |
| Wavelength Accuracy | ± 1nm |
| Test Speed | 5 seconds |
| Detector | 2048-Linear CCD array |
| Dimensions | 208×320×186 |
| Net Weight | 2.8 kg / 6.2 lbs |
| Minimum sample volume | 0.5-2.0 μl |
| Spectral Resolution | ≤3 nm |
| Absorbance Range | 0.04 to 90A |
| Absorbance Accuracy | 1 % (7.332Abs at 260 nm) |
| Catalog Number | Product Name | Price | Qty |
|---|---|---|---|
| MBIZR-00910-90 | Cuvette for Nano-300, Nano-400A and Nano-500 |
|
