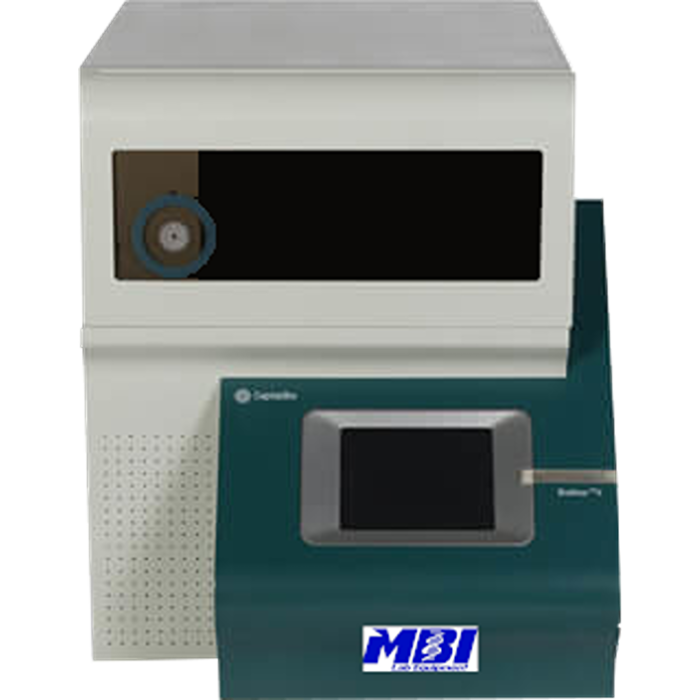

MBI Biomixer Microarray Hybridization Station
MBI Biomixer Microarray Hybridization Station
Uniform hybridization for DNA, protein and cell microarrays.
The MBI Biomixer is a microarray hybridization station that utilizes continuous 3-D motion to facilitate uniform spreading of the aqueous hybridization mixture across the microarray surface in a temperature-controlled environment. This ensures each sample spot is uniformly exposed to the reaction reagent solution, enhancing both reaction signal intensity and signal consistency.
Easy to operate, with up to 6 or 12 microarray slides hybridized simultaneously. The system is equipped with three interchangeable adapters to accommodate hybridization, washing, and mixing of biochemical reagents in tubes.
- Uniform temperature and humidity when used together with specially designed hybridization cassettes
- Unique 3-D motion guarantees the hybridization signal is homogeneous over the whole microarray surface
- Eliminates edge effects — enhanced results evidenced in independent reports on microarray quality and performance
- LCD control panel for intuitive operation
- Suitable for hybridizations and immunoreactions on 25 mm × 75 mm slides or in tubes using different adaptors
- Processes 6 or 12 slides simultaneously for high-throughput workflows
- Three interchangeable adapters: hybridization, washing, and tube-based mixing
For 25 mm × 75 mm microarray slides
6 or 12 slide capacity
For post-hybridization slide washing
For biochemical reagent mixing
Compatible with standard tubes
| Capacity | 6 or 12 microarray slides (25 mm × 75 mm) |
| Motion Type | Continuous 3-D motion |
| Temperature Control | Adjustable temperature environment |
| Display | LCD control panel |
| Adapters Included | 3 interchangeable adapters (hybridization, washing, tube mixing) |
| Slide Format | Standard 25 mm × 75 mm microscope slides |
| Dimensions (W × D × H) | 405 mm × 516 mm × 486 mm |
| Applications | DNA microarray, protein microarray, immunoreactions, tube-based reagent mixing |
- DNA microarray hybridization (gene expression profiling, CGH, SNP analysis)
- Protein microarray and proteomics studies
- Cell-based microarray assays
- Immunoreactions on glass slides
- Biochemical reagent mixing in tubes
- Post-hybridization slide washing
| Size | 516 x 405 x 486 mm（L×W×H) |
|---|---|
| Chip capacity | 6 Slides /15 ml tubes /50 ml tubes |
| Timing Range | 0-24 hours |
| Temperature Range | Amb. - 70°C |
| Temperature Accuracy | ± 0.5°C |
| Rotating | 5-30 rpm (adjustable) |
| Voltage | 110 Volts AC |
| Power | 350 Watts |
