G380 Series Microscopes
Catalog Number:
G380 Series Microscopes
Availability:
In stock
UNICO

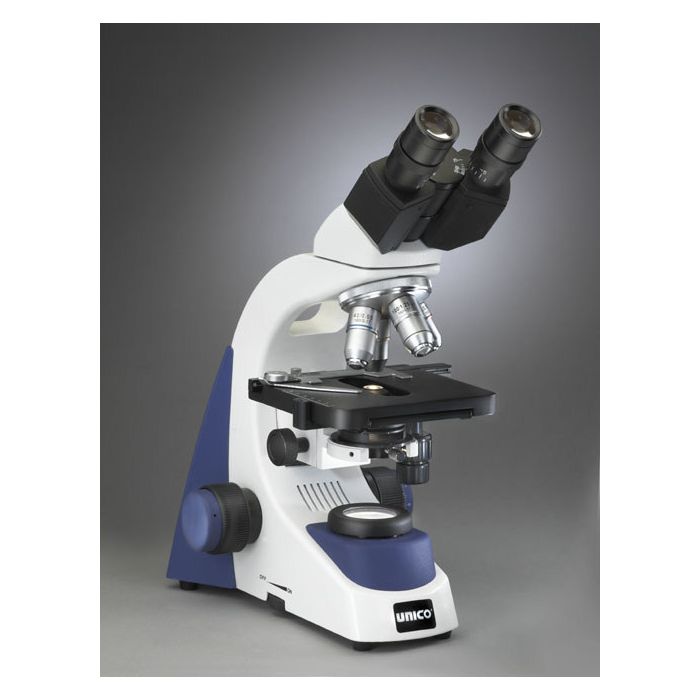

The new UNICO® G380 Series was designed with your viewing comfort in mind. The standard 10X High Eye-Point eyepieces are engineered to reduce eyestrain for users wearing glasses. Each eye tube features independent focusing diopter adjustment to compensate for the natural vision differential between each eye. The base design adds stability to the body while allowing extra room for hand access to the oversized coarse and fine focus controls and easy access to the coaxial mechanical stage controls.
With use you will come to appreciate the precise mechanical stage movement, optical clarity, flat field and comfortable viewing. A comprehensive manual includes care and maintenance instructions.
| Head | Available with Monocular, Binocular, Dual View, or Trinocular heads. Binocular and Trinocular heads feature Seidentopf optical design with 52…75mm interpupilary distance adjustment. All rotate rotates 360° and lock in-place with a thumbscrew |
|---|---|
| Coated Optics | All optics feature the following coatings: Anti-Glare, Color Correction, Anti-Fungal |
| Eyepiece | Standard with 10X High-Eyepoint widefield oculars. Standard widefield oculars are also available. FN = 18mm, optional 20mm available |
| Objectives | DIN Standard 4X, 10X, 40XP and 100XR (Oil) objectives. 40X and 100X objectives are "R", or retractable. Nosepiece: 4 hole standard. Options are: Achromatic, Semi-Plan, or Plan Achromaticss. Simple Phase Contrast is available in 10X, 40X, and 100X Semi-Pla |
| Magnification | With 10X eyepieces, standard magnification is 40X, 100X, 400X and 1,000X |
| Stand | Sturdy cast metal frame with unique polymer accent panel, designed to provide stability while dissipating bulb heat |
| Condenser | Features a focusable NA1.25 Abbe condenser with port for optional Simple Phase Contrast Annulus insertion. Focusable for concentrated or diffuse lighting with rack and pinion movement |
| Focusing | Smooth, extra-large graduated coaxial coarse and fine focus controls with tension adjustment to eliminate stage drift. Adjustable to your personal preferences |
| Stage | Built-in graduated mechanical stage with low-position coaxial X-Y controls. Ball bearing movement allows for smooth, precise adjustments. Stage size: 142mm × 132mm. Range of X-Y stage movement: 55mm × 75mm. Spring loaded slide holder |
| Illuminator | Features a 6VDC/20W Halogen light source for consistent bright white light. Variable intensity rheostat wheel is located on the left side of the base |
| Iris Diaphragm | Features adjustable Iris with metal leaf overlay design |
| Power | 110VAC/60Hz to 240VAC/50Hz, universal power supply. The fuse rating is 250VAC/1.5A. UL and CSA approved electrical parts |
| Warranty | 1-year limited warranty |
| Cover | Plastic dust cover |
